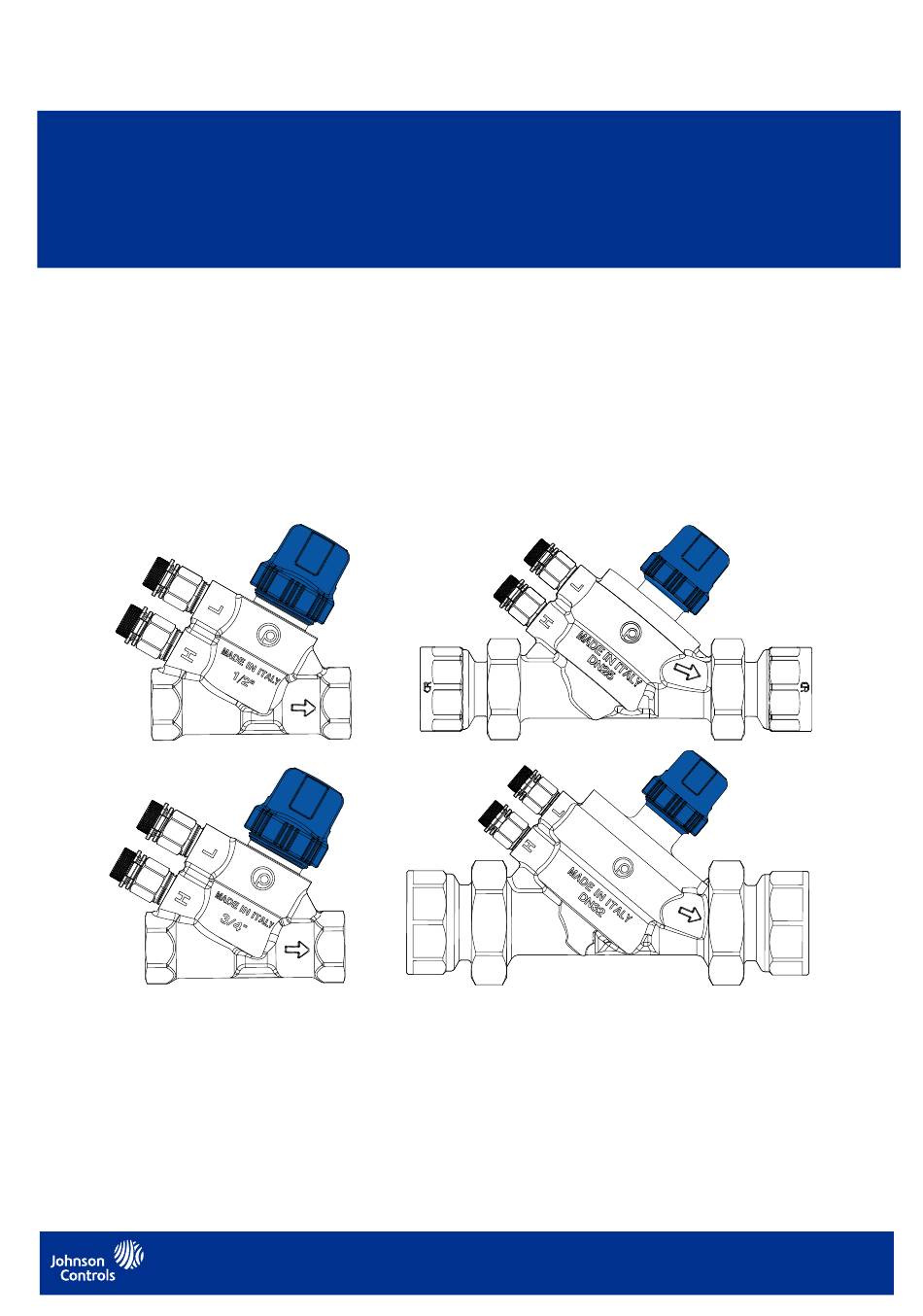

- Page 1 ISTR.283 B *3463602537B* VP1000 Compact Globe (Axial) 1/2 Inch to 1 1/4 Inch (DN15-DN32) Pressure Independent Control Valve P/N 34-636-02537, Rev. B Issued February 2022...
- Page 2 CAUTION Johnson Controls does not accept any liability for improper or wrong use of this product. Proper water treatment is recom- mended; refer to the VDI 2035 Guideline. Furthermore, maximum iron oxide in the water passing through control valve (PICV) should not exceed 25 mg/L (25 ppm). To ensure the main pipework is cleaned appropriately, flushing by-passes should be used without flushing through the pressure regulator of the Pressure Independent Control Valve.
- Page 3 Mounting considerations for the technician For more information about the VA-748x Electric Valve Actuators, see the latest revision of the installation instructions All VA-748x Series Electric Valve Actuators ship from the factory in the fully up position. If you have purchased the valve and actuator separately, before mounting the actuator, you must note the following: •...
- Page 4 Considerazioni di montaggio per il tecnico Per ulteriori informazioni sugli attuatori elettrici per valvole VA-748x, vedere l'ultima revisione delle istruzioni di installazione Tutti gli attuatori elettrici per valvole serie VA-748x vengono spediti dalla fabbrica in posizione completamente sollevata. Se la valvola e l'attuatore sono stati acquistati separatamente, prima di montare l'attuatore è necessario osservare quanto segue: •...
-
Page 5: Maintenance And Cleaning
Actuator Actuator <90° <90° Maintenance and cleaning During valve cleaning operations, use a damp cloth as detergents, solvents or chemical product that may seriously damage or compromise the proper functioning and reliability of the valve and actuator. Entretien et nettoyage Pour nettoyer la vanne, n’utilisez qu’un chiffon humide. -
Page 6: Dimensions
Dimensions Table 1: Valve dimensions mm. Valve size VP10xHAA 1/2” DN15 14.5 80.5 VP10xHDA 1/2” DN15 14.5 80.5 VP10xHDC 1/2” DN15 14.5 93.5 VP10xJAJ 3/4” DN20 17.5 VP10xJDB 3/4” DN20 17.5 VP10xKDD 1” DN25 VP10xKDE 1” DN25 VP10xLDF 1 1/4” DN32 P/N 34-636-02537, Rev. - Page 7 VP10xHAA VP10xHDA VP10xHDC VP10xJAJ VP10xJDB VP10xKDD VP10xKDE VP10xLDF Table 2: Valve with VA-748x Series Actuator dimensions mm Valve size VP10xHAA 1/2” DN15 80.5 14.5 80.5 VP10xHDA 1/2” DN15 80.5 14.5 80.5 VP10xHDC 1/2” DN15 80.5 14.5 93.5 110.5 VP10xJAJ 3/4” DN20 80.5 17.5 112.5...
- Page 8 Table 3: Valve with VA-709x Series Actuator dimensions mm, DN15 and DN20 only Valve size VP10xHAA 1/2” DN15 14.5 80.5 VP10xHDA 1/2” DN15 14.5 80.5 VP10xHDC 1/2” DN15 14.5 93.5 110.5 VP10xJAJ 3/4” DN20 17.5 112.5 VP10xJDB 3/4” DN20 17.5 112.5 Table 4: Valve with VA-708x Series Actuator dimensions mm, DN15 and DN20 only...
- Page 9 Flow direction | Sens du débit | Dirección del flujo| Durchflussrichtung | Direzione del flusso | Stroomrichting | Směr průtoku The following diagram illustrates the flow direction. Use this diagram as a guide for attaching the actuator. If flow reversal cannot be avoided, mount a check valve.
- Page 10 Flow rate settings | Réglages du débit | Ajustes del caudal | Einstellungen für Durchflussmenge | Impostazioni della portata | Instellingen van de stroomsnel- heid | Nastavení průtoku Table 5: VP10xHxx, VP10xJxx, VP10xKxx and VP10xLxx VP10xHAA VP10xHDA VP10xHDC VP10xJAJ VP10xJDB VP10xKDD VP10xKDE VP10xJDB...
- Page 11 Measuring differential pressure | Mesure de la pression différentielle | Medición de la presión diferencial To ensure that the valve is working in the operating range, measure the differential pressure across the valve. The valve is in the operating range if the value at P1-P2 (ΔP) is higher than the start up value. If the ΔP measured value is lower than the start up value, then the valve works as a fixed orifice valve.
- Page 12 Um sicherzustellen, dass das Ventil im Betriebsbereich arbeitet, messen Sie den am Ventil anstehenden Differenzdruck. Das Ventil arbeitet im Betriebsbereich, wenn der Wert bei P1-P2 (ΔP) höher ist als der Anfangswert. Wenn der bei ΔP gemessene Wert niedriger ist als der Anfangswert, arbeitet das Ventil als feste Düse. In der folgenden Tabelle finden Sie Informationen zu den Mindestdifferenzdruckanforderungen.
- Page 13 Mounting the electro-mechanical actuator | Montage de l’actionneur électromé- canique | Montaje del accionador electromecánico The following instructions apply only to valves and actuators sold separately, and are not required for actuator assemblies. Note: When mounting the actuator, ensure that it is in the upright position. Les directives suivantes concernent uniquement les vannes et les actionneurs vendus séparément.
- Page 14 Adaptor / adaptateur / adaptador/ adapter / adattatore/ adapter/ adaptér VA-708x > VA64 DN15 DN20 Adaptor / adaptateur / adaptador/ adapter / adattatore/ adapter/ adaptér 2 x click! VA-709x > 0550390101 DN15 DN20 Note: For VA-748x, VA-708x and VA-709x literature visit www.solutionnavigator.com Remarque: Pour consulter la documentation VA-748x, VA-708x et VA-709x, visitez le site www.solutionnaviga- tor.com...
-
Page 15: Technical Specifications
Leakage ANSI Class IV IEC 60534-4 Compliance Johnson Controls declares that these products are in compliance with the essential requirements and other relevant provisions of the PED (Pressure Equipment Directive) 2014/68/ UE (Paragraph 4, comma 3). CE Marking is not applicable. - Page 16 Building Technologies & Solutions 5757 N Green Bay Ave, Glendale, WI 53209 www.johnsoncontrols.com Metasys® and Johnson Controls® are registered trademarks of Johnson Controls. All other marks herein are the marks of their respective owners. © 2022 Johnson Controls. P/N 34-636-02537, Rev. B...
