CIRCUIT HIDRAULIC

Caracteristici generale

Circuitul hidraulic al versiunilor CHA/K, CHA/K/SSL, CHA/WP si

CHA/K/WP/SSL.

Include: evaporator, sonda de temperatura, sonda antiinghet, presostat

diferential apa si supapa manuala de evacuare.

PS - Circuitul hidraulic cu accesoriu pompa di circulatie.

Include: evaporator, sonda de temperatura, sonda antiinghet, presostat

diferential apa, pompa de circulatie, vas de expansiune, supapa de

siguranta si releu termic.

PD - Circuitul hidraulic cu accesoriu pompa dubla de circulatie.

Include: evaporator, sonda de temperatura, sonda antiinghet, presostat

diferential apa, pompa dubla de circulatie, vas de expansiune, supapa de

siguranta, supapa de retinere si releu termic.

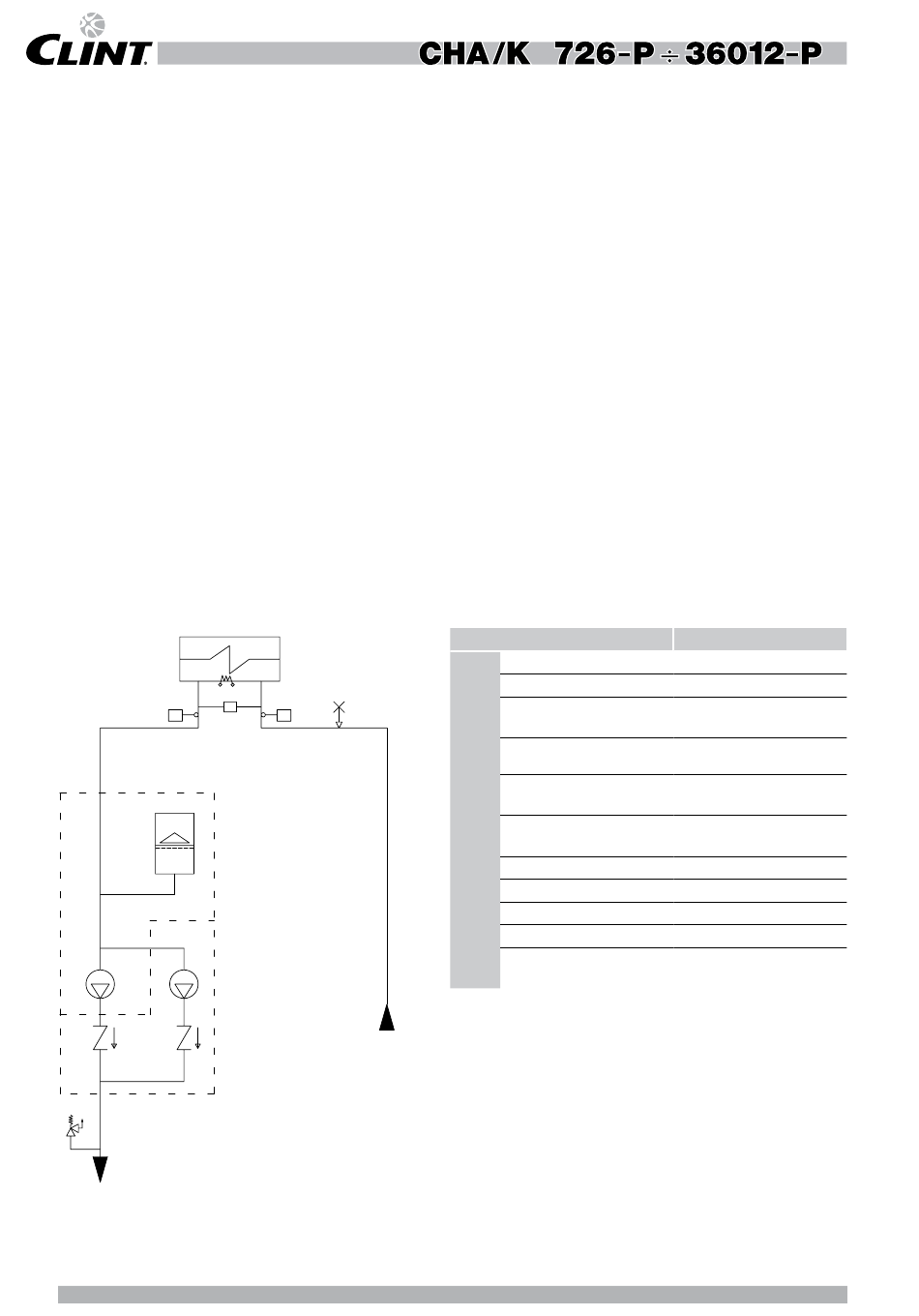

SCHEMA CIRCUITULUI HIDRAULIC

ST2

MPS

MPD

VSI

OUT

ST1

SFA

WATER CIRCUIT

General characteristics

Water circuit CHA/K, CHA/K/SSL, CHA/K/WP and CHA/K/WP/SSL

version.

Includes: evaporator, temperature sensor, antifreeze sensor, differential

water pressure switch and manual air vent.

PS - Water circuit with additional circulation pump.

Includes: evaporator, temperature sensor, antifreeze sensor, differential

water pressure switch, circulation pump, expansion vessel, safety valve

and thermal relay.

PD - Water circuit with additional double circulation pump.

Includes: evaporator, temperature sensor, antifreeze sensor, differential

water pressure switch, double circulation pump, expansion vessel, safety

valve, check valve and thermal relais.
