Operating Instructions
MaxLite WallMax™ Thin Cutoff Wall Pack
®
Installation & Operation - Setting Color Temperature:
Color settings:
Top, stands for 5000K;
Middle, stands for 4000K;
Bottom, stands for 3000K;
Note: Add a bead of exterior grade silicone sealant around the perimeter of the wall pack on the wall to inhibit any moisture

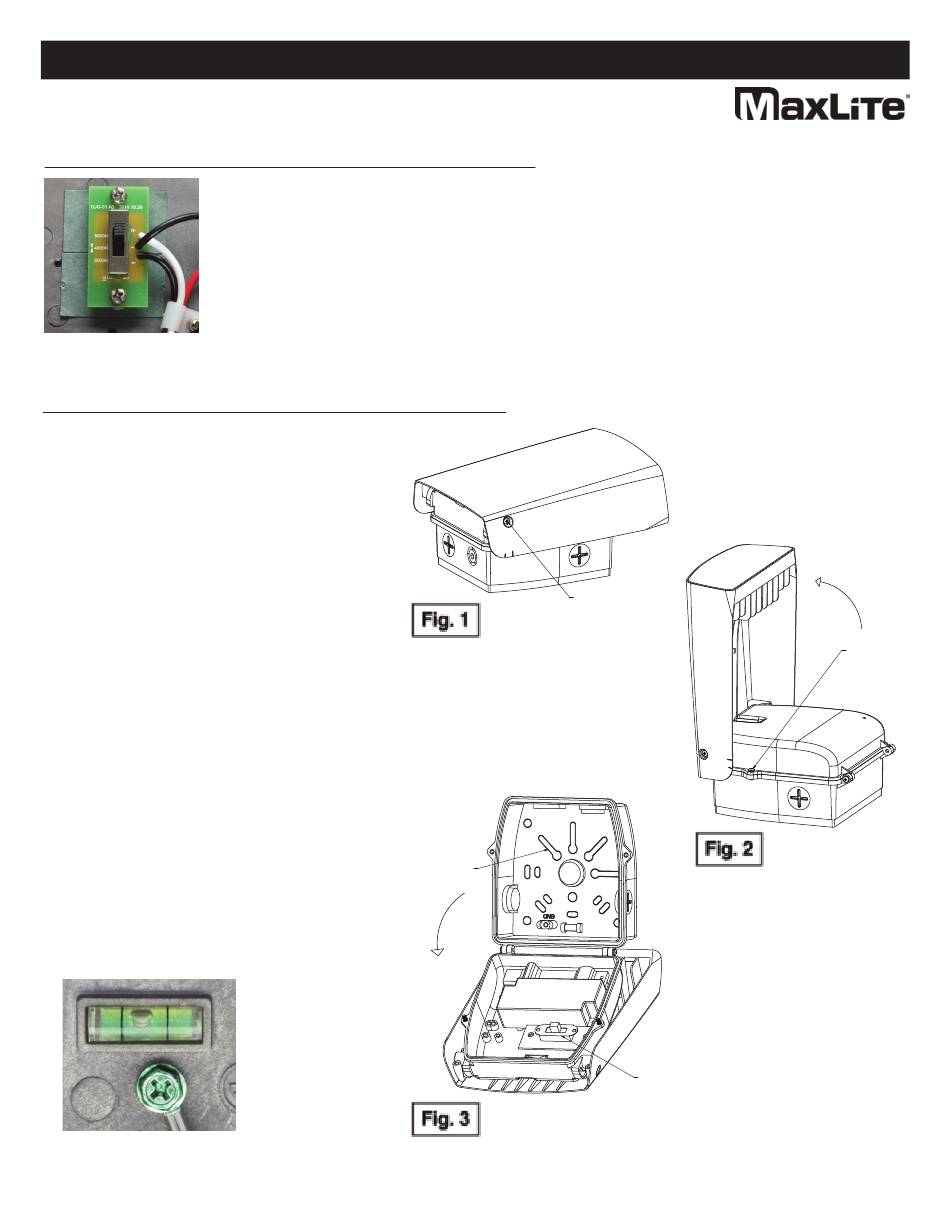

Installation & Operation - Junction Box Mounting:
from attachment bolts.
1. If there is an existing fixture remove it. Loosen
remove them (see Fig. 1).
both outer side screws, but do not completely
2. Open the heatsink to reveal the inner side screws.
box (see Fig. 2).
Remove the inner side screws to access the driver
3. Drill four (4) 5.0mm holes in locations on the j-box
mounting template. Make sure that the hole
locations match the junction box pattern. Unscrew
housing (see Fig. 3).
the ½" knockout plug from the center of the back
4. Run the main power wires from the water-proof
junction box through the knockout hole. Secure
the back housing to the junction box using four
(4) #8-32x1" screws and the four (4) holes drilled
in step 3.
5. Drill four (4) holes in the corners of the back
housing. Fasten the back housing to the wall with
bolts.
6. Before closing the fixture, select the desired CCT
by using the switch on the front driver box
housing. Connect the main power to the driver
according to the wiring diagram. Finally close the
fixture ensuring that all wires are inside, and
using a suitable screwdriver retighten the inner
side screws. Adjust the heatsink to the desired
angle and retighten the outer side screws.
© Copyright 2021. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: 800-555-5629 Fax: 973-244-7333 Email: info@maxlite.com
Note: Built in level
helps ensure
straight
mounting
Outer
Side Screws
J-Box
Mounting
Template
WP-ADS Series
CCT
Selectable
Switch
Page: 3
REV: 11/18/21
Inner
Side Screws
3.
5.
