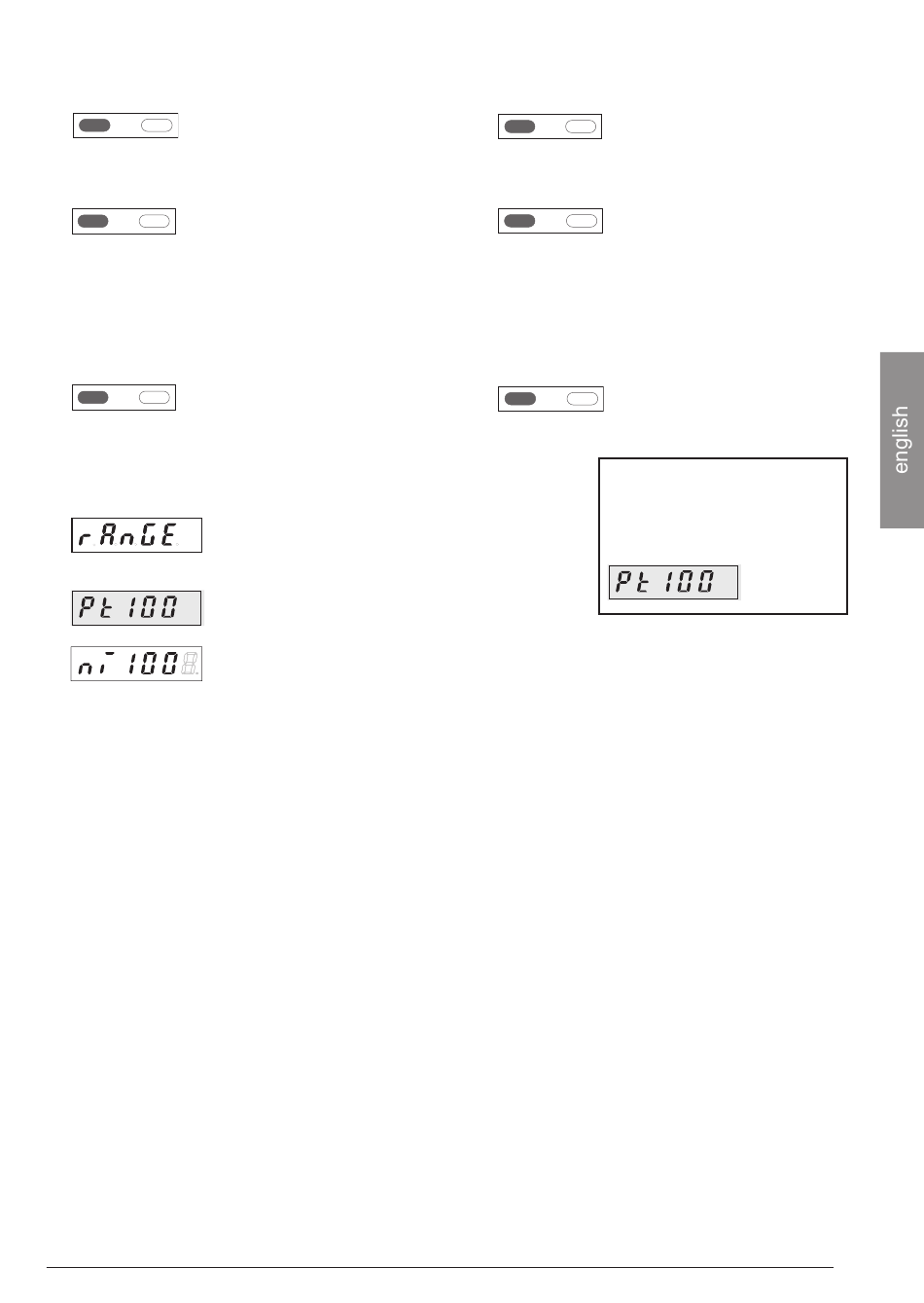

5.2 Changing the parameter setting

1. press the right-hand/grey key to change the
parameter setting by one value at a time
⇑
2. to input numerical values, select first the decade with the
left-hand/red key
⇑
3. the decade blinks
5.3 Saving the parameter setting and
switching to the following parameter
1. keep the left/red key pressed
⇑
5.4 Programmng the adjustable parameters
5.4.1 Input signal type
Range
Selection in the menu
Zumutbare Änderungen aufgrund technischer Verbesserungen vorbehalten.
Pepperl+Fuchs GmbH 68301 Mannheim Telefon (0621)776-11 11 Telefax (0621)776-27-11 11 Internet http://www.pepperl-fuchs.com
Pt100 probe
Ni100 probe
4. set now the numerical value using the right-hand/grey
key
⇑
5. to reach the following decade, press the left-
hand/red key
⇑
6. if negative numerical values are required, set the left de-
cade to "–" or "–1".
2. and press simultaneously the right/grey key.
⇑
Note:
The fields with a grey background
contain the factory-set default va-
lues.
