#PKRB10XX
Rollester Pen Kit
PKRB1000
PKRB1010
•
Kit Features:
• Easy to turn with a straight tube
• Minimum parts - easy to assemble
• Uses standard Rollerball refi ll
• Available in multiple fi nishes
• Overall Length: 5-1/16"
Required Accessories:
• 7mm Pen Mandrel
• Drill Bit: 3/8" #PKEXEC-38
• Bushing set(2 pc) #PKCHPENBU
• Barrel Trimming set #PKTRIM38
• Live Tailstock Center
• 2 Part Epoxy Glue or Insta Cure (Cyanoacrylate) Glue
• Pen Blank: Minimum Size - 3/4" x 3-1/2" Long
Tip Cap
Preparing the Blank:
• Cut a blank to the length of the tube and add 1/16" for squaring off.
• Drill a 3/8" hole lengthwise through the blank.
• Spread glue over the tube, insert the blank with a twisting motion to spread the glue evenly inside.
• Center the tube lengthwise inside the blank.
• W hen the glue is dry, square the ends of the blank. Use a 3/8" barrel trimmer or a universal pen blank squaring jig
with a power disc sander. Take the excess material down fl ush with the ends of the brass tube. (do not trim beyond
the length of the tube since this may interfere with operation of the assembly).
PKRB1015
PKRB1020
•
•

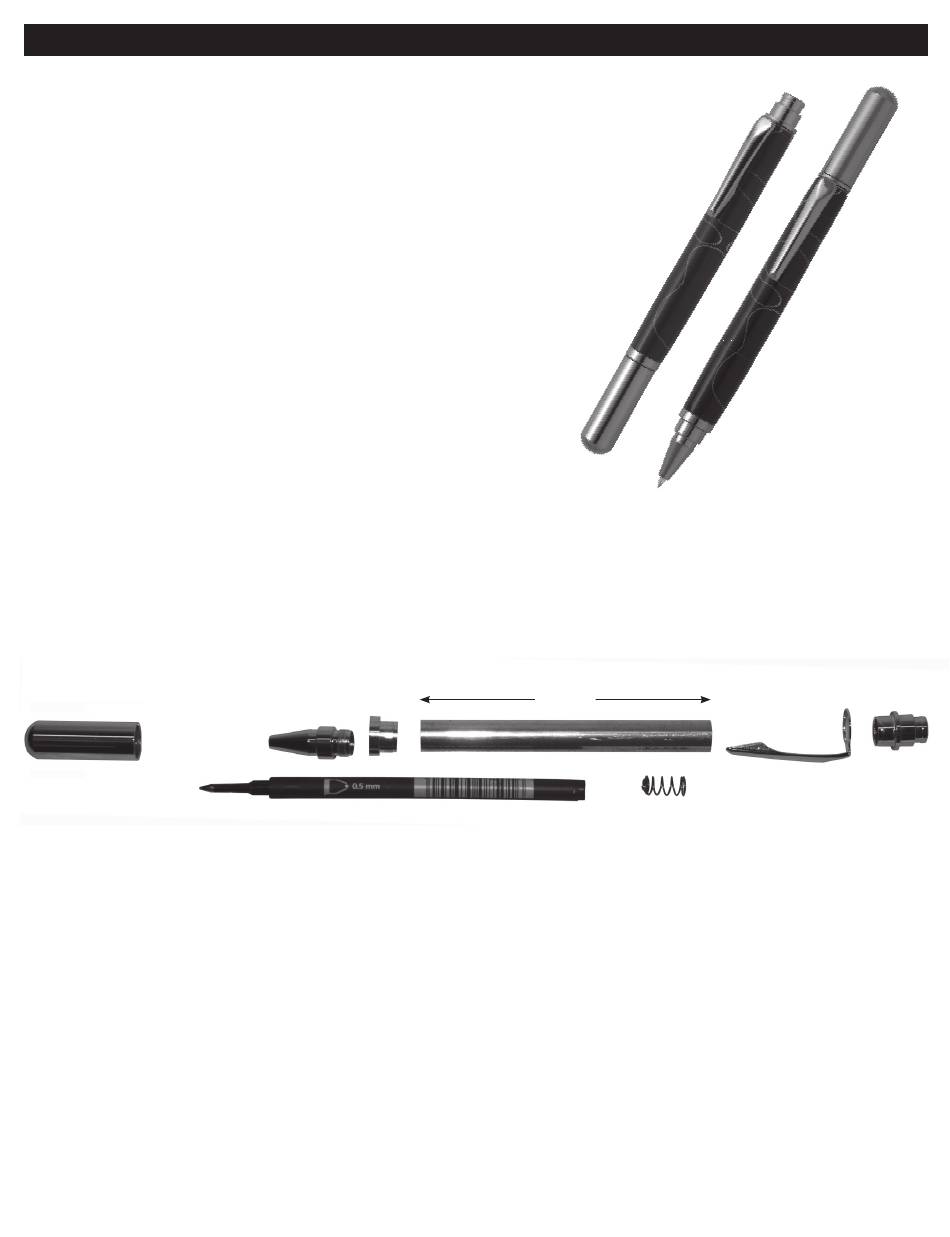

DIAGRAM A / PARTS LAYOUT
Coupler
Tip
Refi ll
Tube/Barrel
3.30"
Spring
PSI Woodworking Products
End
Cap
Clip
