Revolver Click Pen Kit
Kit Features:
• Innovative click mechanism
• "Revolver" centerband spins as the refill extends
• Trigger Clip retracts the refill
• Easy to Turn With Straight Tube
• Minimal Parts-easy to assemble
• Available in multiple finishes
• Overall Length: 5-9/16"
Required Accessories:
• 7mm Pen Mandrel
• Drill Bit:#PK10-10
• Bushing Set(2 pc): #PKREVBU
• Barrel Trimming set: #PKTRIM10 or pen blank
squaring jig with a 10MM sleeve
• Live Tailstock or Mandrel Saver
• 2 part Epoxy or Thick CA (Cyanoacrylate) Glue
• Pen Blank Minimum Size: 3/4"x3/4"x2-1/8"
Preparing the Blank:
• Cut one blank to the length of the tube, adding 1/16" for squaring off (approx 2-1/8").
• Drill 10MM hole lengthwise through the blank.
• Spread glue over the tube, insert the tube into the blank with a twisting motion to spread the glue evenly inside.
• Center the tube lengthwise inside the blank.
• When the glue is dry, square the ends of the blanks, making sure the trimmed ends are 90º to the tube. Use a 10MM barrel
trimmer, or a pen blank squaring jig with a 10MM sleeve on a disc sander. Take the excess material down flush to the ends
of the tubes. Do not trim past the end of the tube since this may interfere with the operation of the mechanism and
assembly. Use a barrel trimmer to clean the inside of the tube.
REVISED

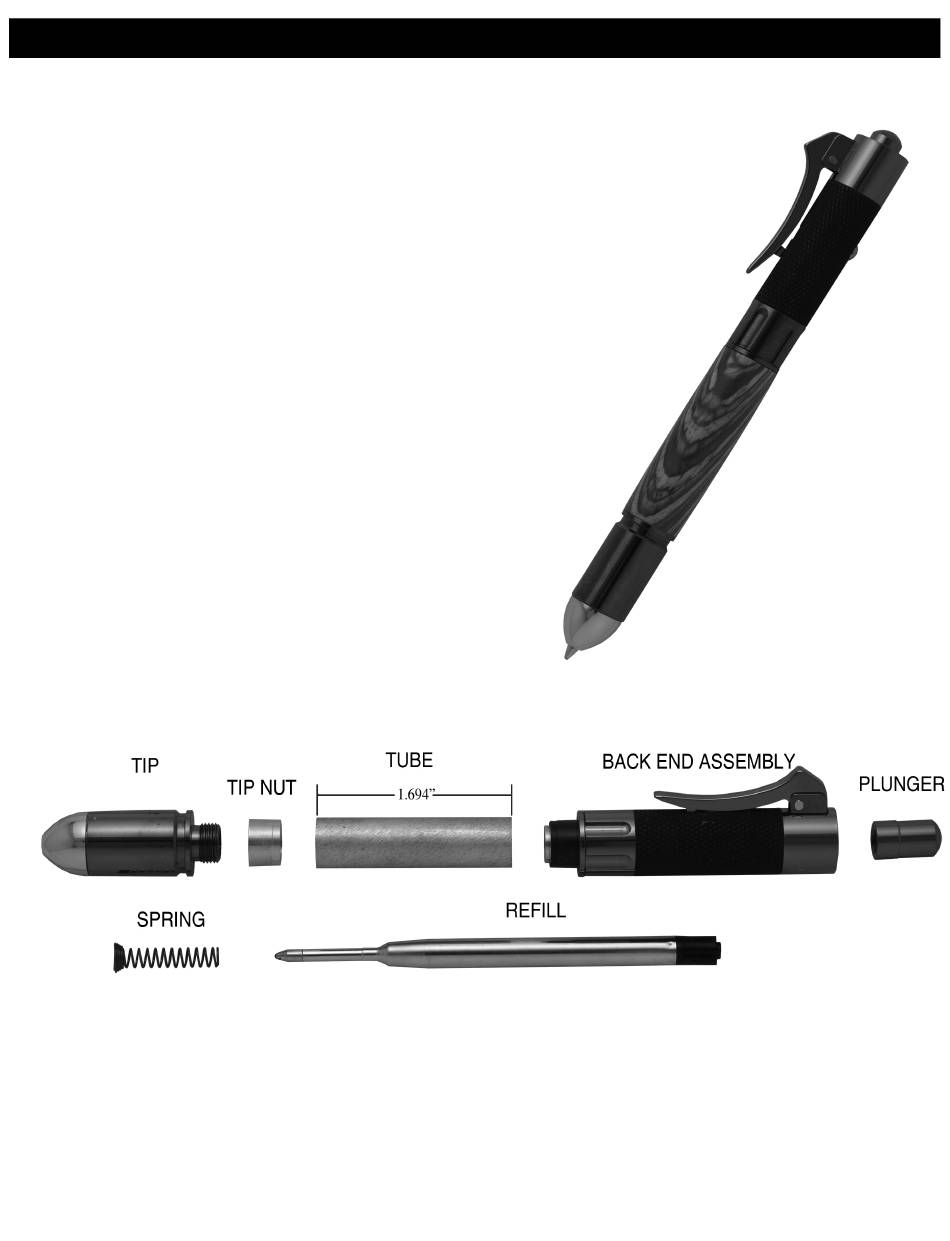

DIAGRAM A / PARTS LAYOUT
