OWNER'S MANUAL

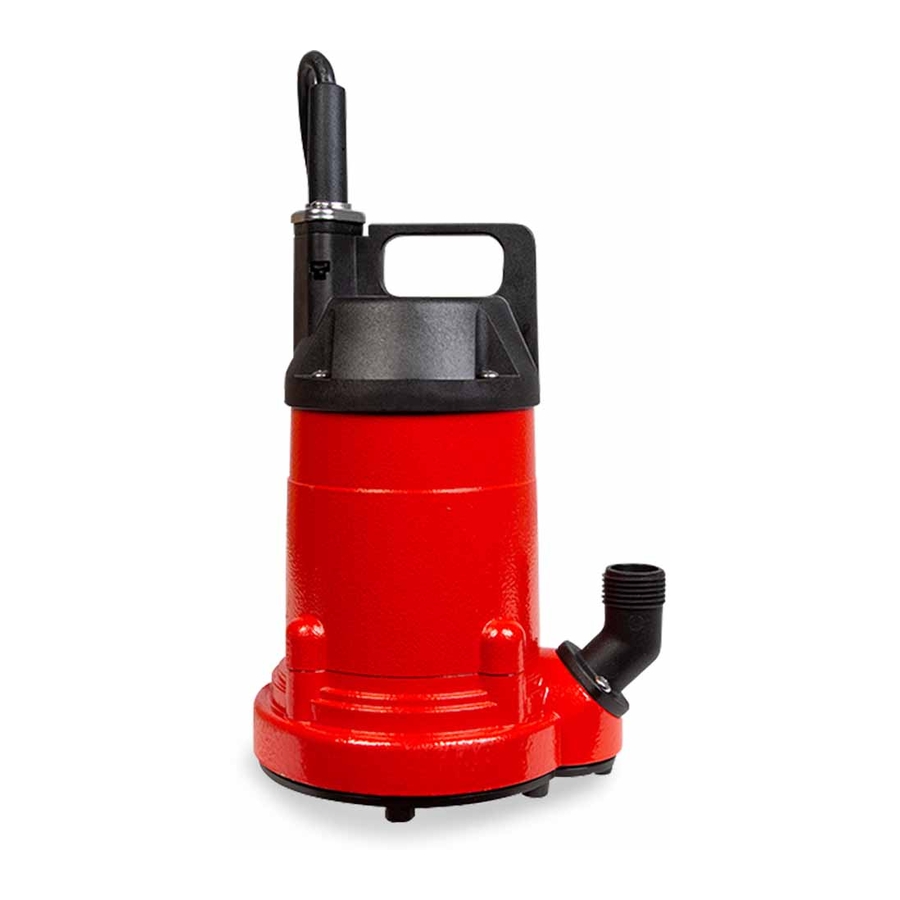

RL25U Multi-Purpose Pump
This submersible multi-purpose pump is designed for clear water transfer applications and household water
removal. The pump is for use with water only.
Do NOT use this pump for:
• Transferring potable water
• Effluent or sewage applications
• Applications where debris (gravel, sand, etc.), abrasives, or corrosives are present
• As a pond pump, or for pumping seawater
• Sprinkler systems—this pump does not deliver enough pressure for sprinkler applications
• Locations classified as hazardous according to the National Electrical
Code (ANSI/NFPA)
The pump motor is equipped with an automatic resetting thermal protector, and may restart
unexpectedly. Thermal Protector tripping is an indication of motor overloading or overheating. This
can be caused by application issues such as an obstructed pump impeller, pump running dry, pump
air-locked, pump short cycling, excessively high or low voltage supply, or possibly a pump, motor,
bearing, or seal that has reached the end of its useful life.
Please examine your pump carefully to ensure that no damage occurred during shipment. If dam-
age has occurred, please contact the place of purchase. They will assist you in replacement or
repair, if required.
This product is covered by a Limited Warranty for a period of 60 months from the date of original purchase by
the consumer. For complete warranty information, refer to www.redlionproducts.com; or, call Technical Support
for a printed copy.
Specifications
Model Phase
RL25U 1
BEFORE GETTING STARTED
This equipment should be installed and serviced by technically
qualified personnel who are familiar with the correct selection
and use of appropriate tools, equipment, and procedures. Failure
to comply with national and local electrical and plumbing codes
and within Red Lion recommendations may result in electrical
shock or fire hazard, unsatisfactory performance, or equipment
failure.
Know the product's application, limitations, and potential haz-
ards. Read and follow instructions carefully to avoid injury and
property damage. Do not disassemble or repair unit unless
described in this manual.
Refer to product data plate(s) for additional precautions, operat-
ing instructions and specifications.
Failure to follow installation or operation procedures and all
applicable codes may result in the following hazards:
Volts Hz Amps
115 60 2.5
Breaker Size Watts
10 A 230
Risk of death, personal injury, or
property damage due to explosion, fire,
or electric shock.
• Do not use to pump flammable or explosive fluids such as gaso-
line, fuel oil, kerosene, etc.
• Do not use in explosive atmospheres or hazardous locations as
classified by the NEC, ANSI/NFPA70.
• Do not handle a pump or pump motor with wet hands or when
standing on a wet or damp surface, or in water until the unit is
unplugged or electrically disconnected.
• When a pump is in its application, do not touch the motor, pipes,
or water until the unit is unplugged or electrically disconnected.
• If the power disconnect is out of sight, lock it in the open posi-
tion and tag it to prevent unexpected application of power.
English
EN
HP Shut Off
1/4 19 ft (5.8 m)
