Ramiaudio EXT208S Manuel Utilisateur page 12

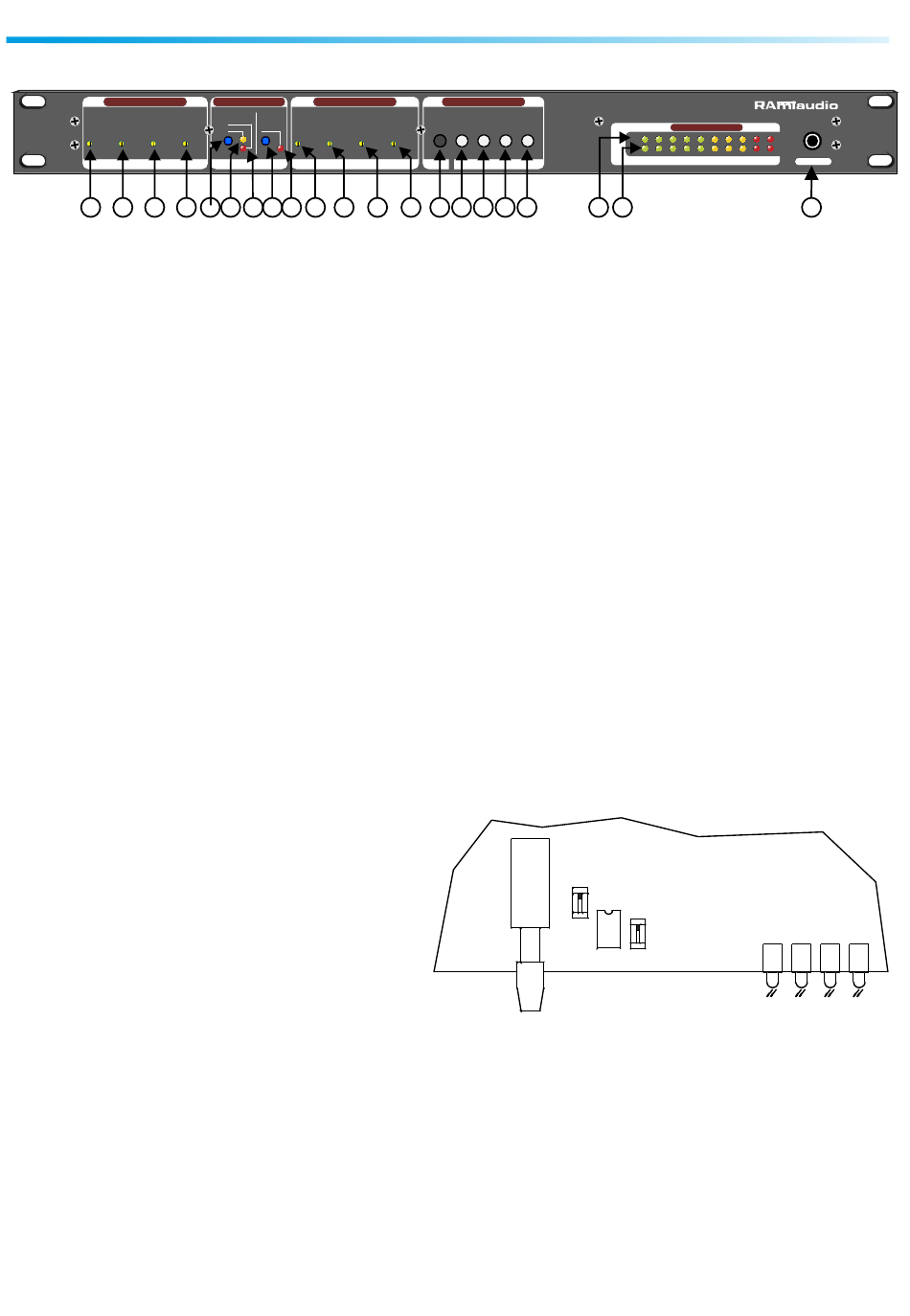

FRONT PANEL
LEVEL OUTPUT
1 2 3
LEFT
1 2 3
16 - Cue switch for Peak Meter (19, 20) and Phones (21) monitoring.
Channel 2 Left (L) and Right (G) Outputs in Stereo Mode.
Outputs 2 (L) and 6 (G) in Mono Mode.
17 - Cue switch for Peak Meter (19, 20) and Phones (21) monitoring.
Channel 3 Left (K) and Right (F) Outputs in Stereo Mode.
Outputs 3 (K) and 7 (F) in Mono Mode.
18 - Cue switch for Peak Meter (19, 20) and Phones (21) monitoring.
Channel 4 Left (J) and Right (E) Outputs in Stereo Mode.
Outputs 4 (J) and 8 (E) in Mono Mode.
19 - Peak Meter monitoring :
Left Inputs / Outputs in Stereo mode, Left / Left + Right Inputs, or 1, 2, 3, 4 Outputs in Mono Mode.
Level Leds : -12 dB, -9 dB, -6 dB, -3 dB, 0 dB, +3 dB, +6 dB, +9 dB, +12 dB, +15 dBu.
20 - Peak Meter monitoring :
Right Inputs / Outputs in Stereo mode, Left / Left + Right Inputs, or 5, 6, 7, 8 Outputs in Mono Mode.
Level Leds : -12 dB, -9 dB, -6 dB, -3 dB, 0 dB, +3 dB, +6 dB, +9 dB, +12 dB, +15 dBu.
Note :
Levels displayed are relative levels.
The 0 dB reference level can be set by
internal switch at 0 dBu or +6 dBu, which is
the level most frequently used in
professional audio equipment.
Input or Output levels are considered as +6
dBu. (Contact us for 0 dBu and +12 dBu
levels).
21- Stereo Headphone socket (25 to 600 Ohms). Same signal as displayed on Meter.
ENGLISH
SPLITTER MODE LEVEL OUTPUT
MONO MODE
L R + + +
LEFT STEREO
4 1 2
Mono 5 Mono 6
INPUT RIGHT
4 5 6 7 8 9 10 11
CUE
1 2 3 4
3 4
Mono 7 Mono 8
INPUT OUTPUTS
12 13 14 15 16 17 18
12


OUTPUT CONTROL
-dB
L L
R
-12 -9 -6 -3 0dB +3
19 20
+6dBu
0dBu
+6dBu
OFF
0dBu
OFF
Next
+dB

+6 +9 +12 +15
PHONES
21
Rami - EXT208S
