Caliber RCD 236DAB-BT Mode D'emploi page 2

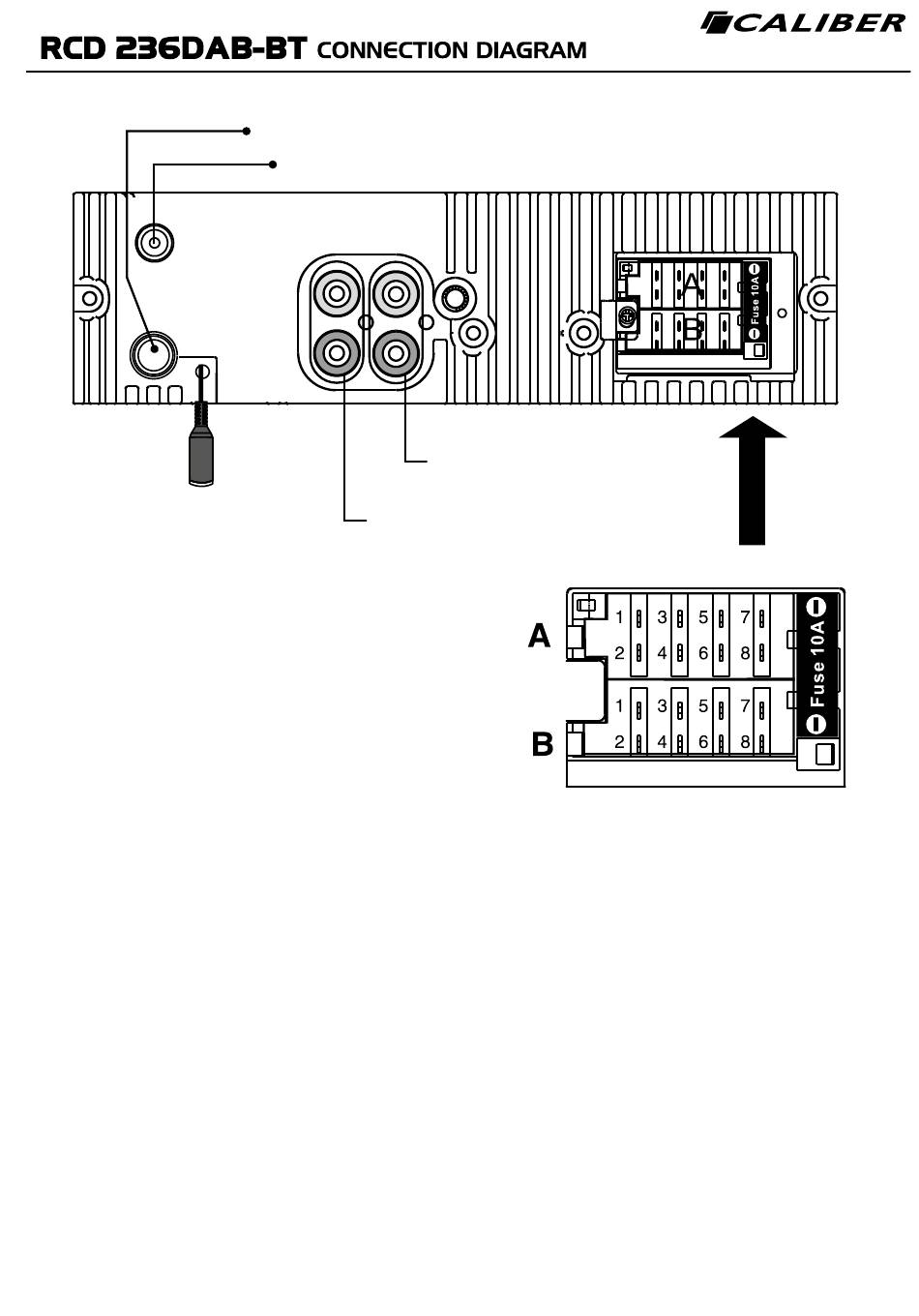

Microphone IN
(3.5mm jack)
ISO connector:
A1. Rear right speaker(+) > Purple
A2. Rear right speaker(-) > Purple-Black
A3. Front right speaker(+) > Grey
A4. Front right speaker(-) > Grey-Black
A5. Front left speaker(+) > White
A6. Front left speaker(-) > White-Black
A7. Rear left speaker(+) > Green
A8. Rear left speaker(-) > Green-Black
Antenna input (DIN)
DAB antenna input
Sub output
(White: Left / Red: Right)
Stereo RCA output
(White: Left / Red: Right)
ISO connector:
B1. --
B2. --
B3. --
B4. Battery 12V (+) > Yellow
B5. Remote / Antenna > Blue-White (+12V)
B6. --
B7. ACC+ / Ignition > Red
B8. Ground > Black
