EN
F.DUAL HOB
1 GENERAL SECURITY INFORMATION
See Notes of General security information of the barbecue.
N.B. Do not use the appliance without the grill or with heat diffusers.
For cooking, only use flat-bottomed pots and pans with a diameter of 70 mm to a maximum of 260 mm.
Before turning on the burners of the hotplate, make sure the flame rings are positioned in their seats with the respective enamelled covers.
2 INSTALLATION
In order to install the hob, refer to paragraph 2 INSTALLATION for the installation of the barbecue.
3 HOW TO CONNECT THE APPLIANCE
In order to connect the hob, refer to paragraph 3 HOW TO CONNECT THE APPLIANCE of the barbecue.
4 SWITCHING ON / OPERATION
The appliance is equipped with an electronic ignition device.

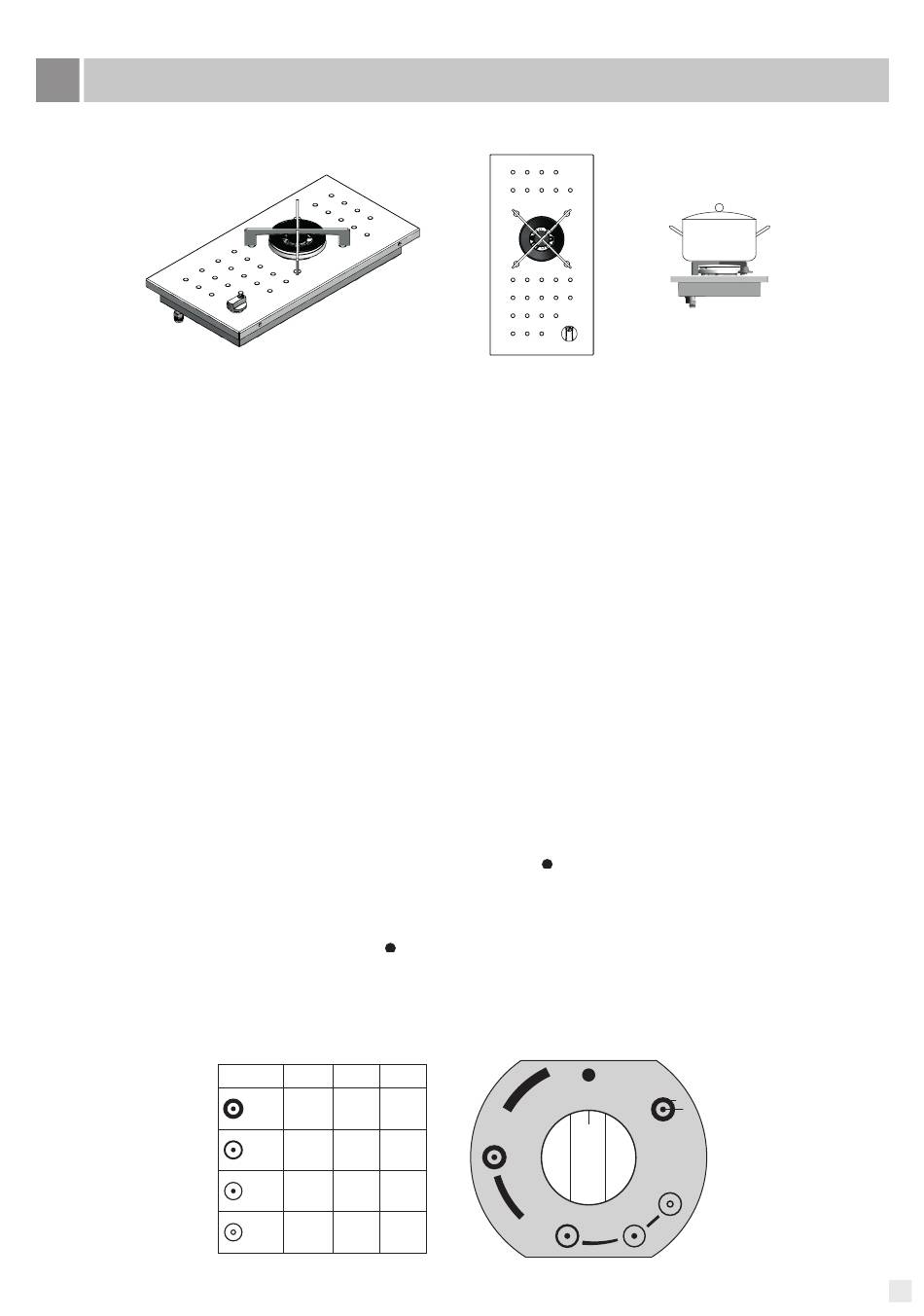

F.DUAL comes with two rings (flame): an outer one (1) and a smaller inner one (2).
The two rings (flame) can work separately or together.
To turn on the burner, press the knob to activate the electronic ignition and then turn it counter-clockwise.
Choose the type of desired flame by placing the knob in correspondence with symbols as indicated in the table.
The internal burner may be used independently from the outside burner.
At the end of each use, verify that the control knob is always in the closed position (
It may happen that the burner is extinguished when releasing the knob: this means that the safety device has not yet been activated; repeat the
starting procedure.
If it doesn't switch on in the first 15 seconds, turn the knob to the closed position, and do not attempt to restart for 60 seconds.
If the burners should go out accidentally, after an interval of about 20 seconds, a safety device will block the outlet of the gas, even if the tap is
open. In this case, return the knob in the closed position (
) and do not attempt to restart the burner for at least 60 seconds.
OFF
Inside
External
KW
Burner
Burner
MAX 1
4
MAX
MAX
MAX 2
MAX 1
2,3
MAX
MIN
MAX 2
0,8
MAX 2
MAX
CHIUSO
0,4
MIN 2
MIN
CHIUSO
).
OFF
OFF
MAX 1
MAX 2
MIN 1
MAX 2
MAX 2
< 260 mm
1
2
MIN 2
23
