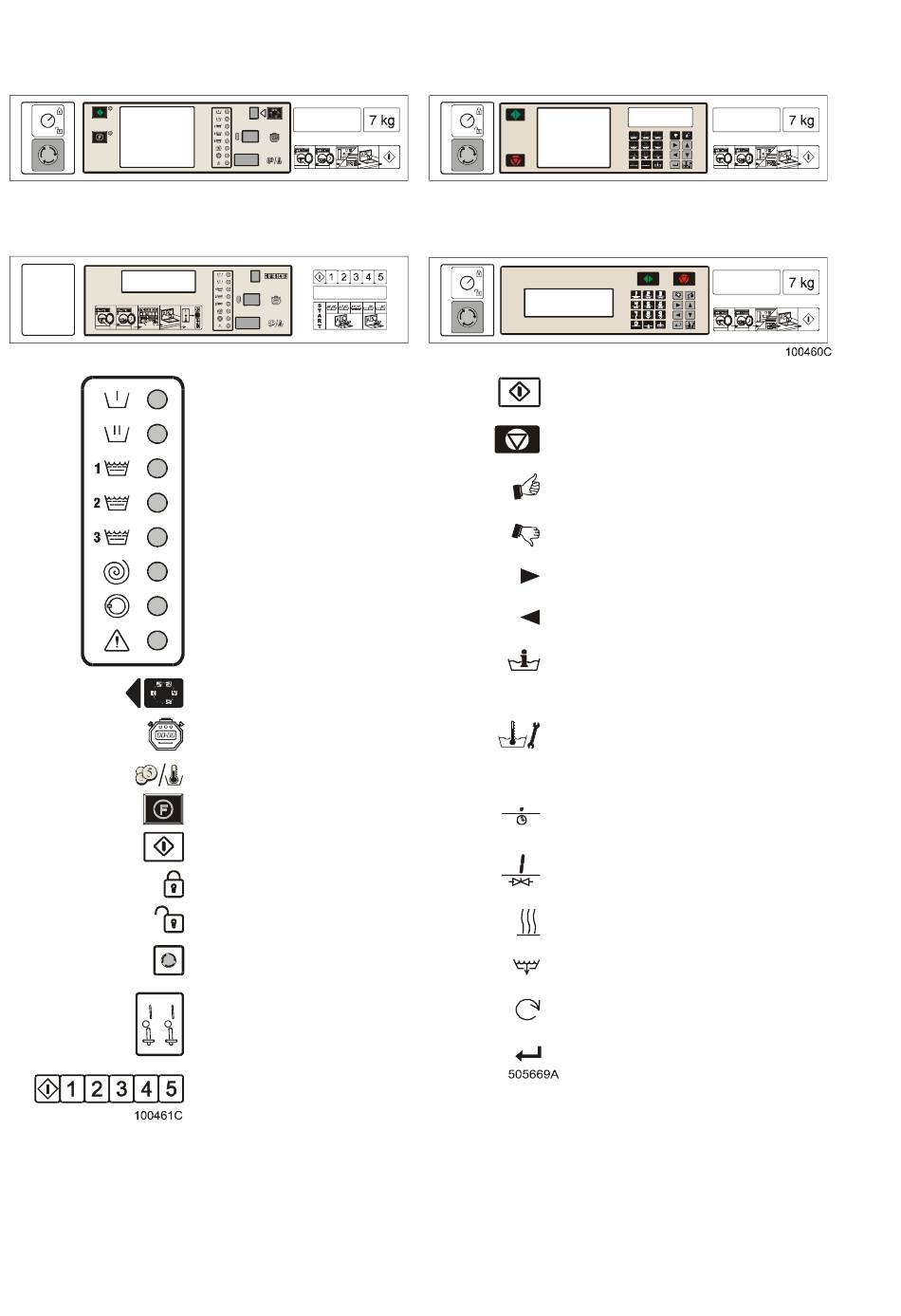

3. OPERATOR PANEL SYMBOLS

EASY CONTROL MICROPROCESSOR (MCB EC)
EASY CONTROL MICROPROCESSOR
WITH MECHANICAL BUTTONS (MCB EC)
10
PREWASH
MAIN WASH
RINSE 1
RINSE 2
RINSE 3
EXTRACT
DOOR RELEASE
FAULT
PROGRAM SELECT
CYCLE TIME
COIN/TEMPERATURE
FUNCTION BUTTON
START
RUN MODE
PROGRAM MODE
EMERGENCY STOP KNOB
(Only used by not coin washer extractors)
COIN SYSTEM
PROGRAM SELECT
FULL CONTROL MICROPROCESSOR (MCB FC)
FULL CONTROL MICROPROCESSOR (MCG FC)
START (advancing program)
STOP (interupting program)
YES SELECTION
NO SELECTION
INCREASING SEQUENCE TIME
DECREASING SEQUENCE TIME
INFO (overview available wash programs and
wash sequence functions)
SERVICE (shows actual water temperature
and level, number of fullfilled cycles and
actual state)
ACTIVATES THE TIME DELAY FUNCTION
(delay time will be started by pressing start)
OPENING THE INLET VALVES
ACTIVATE HEATING
OPEN DRAIN VALVE
SPEED ADJUST
ENTER – SELECTION OR CONFIRMATION
