Door Switch; Image 5 Installing The Door Switch - Helo ROXX Manuel Produit

Installation and User Manual HELO ROXX

3.10. Door switch

The door switch refers to the switch on the sauna door. This switch complies with the regulations laid down in Section
22.100 of the standard EN 60335 2-53. Public and private saunas, i.e. saunas where the heater can be switched on
from outside the sauna or by using a timer, must have a door switch.
The control panels in Helo contactor cases WE4 and Digi 1 and 2 can be fitted with either a Helo DSA 1601 – 35 (RA –
35) door switch adapter (item number 001017) or a Helo door switch adapter (item number 0043233). For more
information, please refer to the use and installation instructions for the DSA device.
WE 4
Digi
Heater
or
DSA

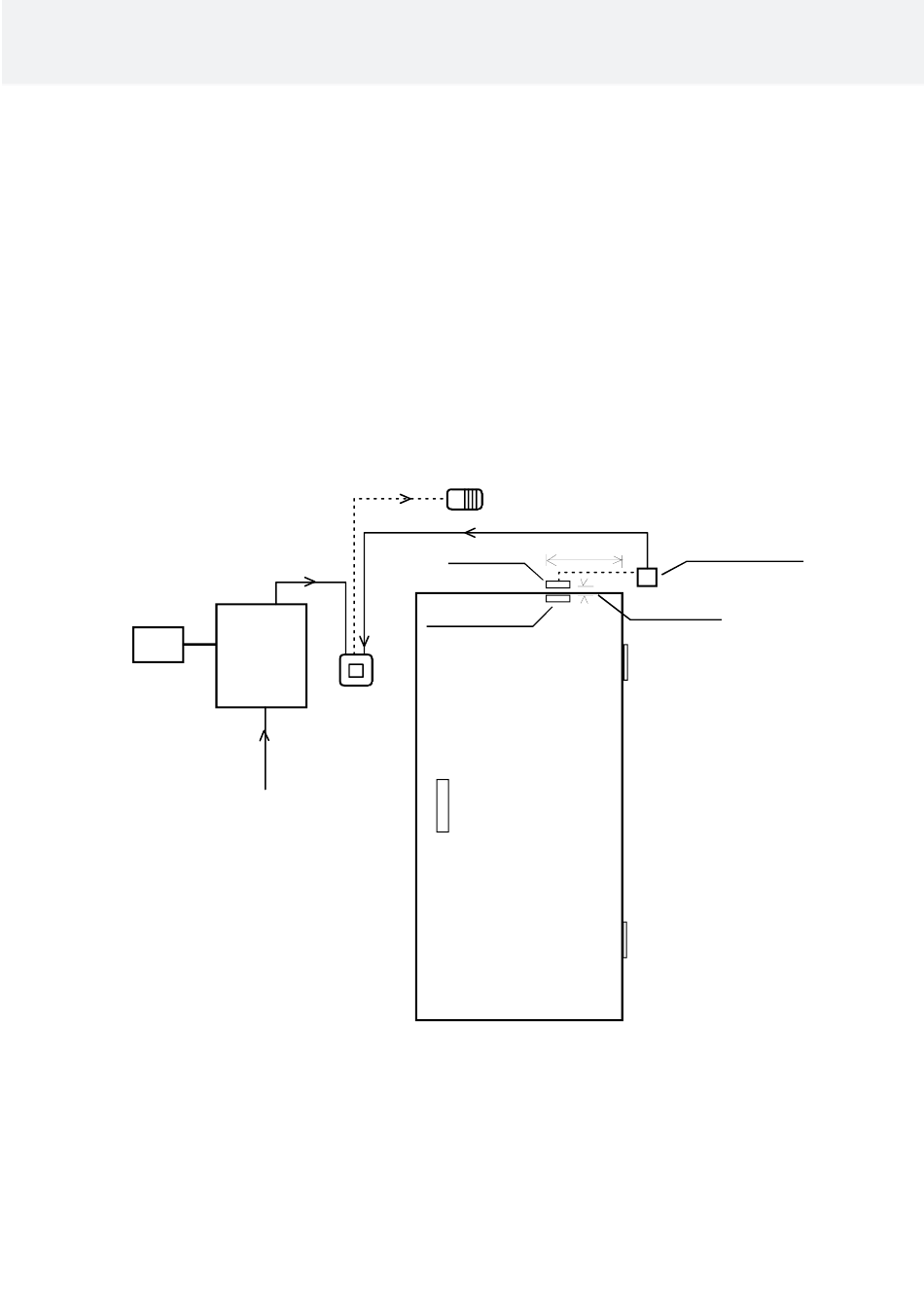

Image 5 Installing the door switch

Sensor
Min 300mm
Door switch
Magnet
Connection box
Max 18 mm
