INSTALLATION INSTRUCTIONS
GUIDE D'INSTALLATION
GUÍA DE INSTALACIÓN
139575 • 139576 • 139577 • 139578 • 139579 • 139580
Read all instructions carefully before proceeding.
Lire attentivement toutes les instructions avant de commencer
l'installation.
Leer detenidamente todas las instrucciones antes de comenzar
la instalación.
IMPORTANT
• Record the serial number
IMPORTANT
• Noter le numéro de série
IMPORTANTE
• Registre el número de serie
FOR RIGHT AND LEFT SIDE DOOR INSTALLATION
(LEFT SIDE SHOWN)
POUR INSTALLATION DE PORTE CÔTÉ DROIT ET GAUCHE
(CÔTÉ GAUCHE ILLUSTRÉ)
PARA LA INSTALACIÓN DE LA PUERTA DEL LADO DERECHO E IZQUIERDO
(SE MUESTRA INSTALACIÓN AL LADO IZQUIERDO)
MODEL • MODÈLE • MODELO

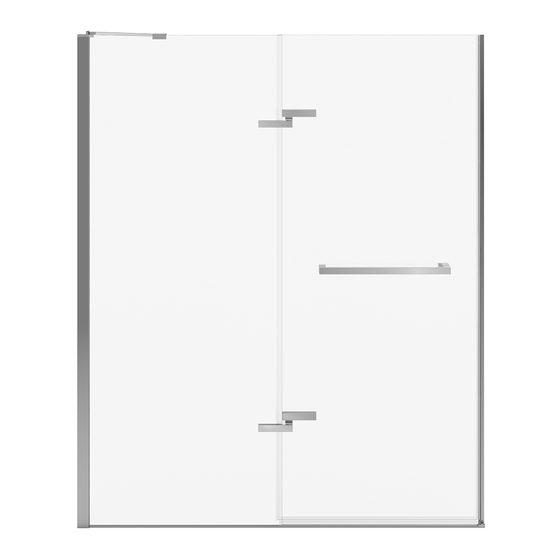

Pivot shower door
Porte de douche pivot
Puerta pivot de ducha
SAVE THIS GUIDE FOR FUTURE REFERENCE.
CONSERVER POUR UN USAGE ULTÉRIEUR.
CONSERVE ESTE MANUAL COMO REFERENCIA.
Serial number • Numéro de série • Número de Serie
Door
Return panel
Maintenance guide p.22
Guide d'entretien p.22
Guía de mantenimiento p.22
Publicité
Manuels Connexes pour MAAX 139575
Sommaire des Matières pour MAAX 139575
- Page 1 MODEL • MODÈLE • MODELO Pivot shower door Porte de douche pivot Puerta pivot de ducha 139575 • 139576 • 139577 • 139578 • 139579 • 139580 Maintenance guide p.22 Guide d'entretien p.22 Guía de mantenimiento p.22 Read all instructions carefully before proceeding.
- Page 2 PARTS PIÈCES PIEZAS AND COMPONENTS ET COMPOSANTES Y COMPONENTES...
- Page 3 PARTS PIÈCES PIEZAS AND COMPONENTS ET COMPOSANTES Y COMPONENTES 2.5mm...
- Page 4 PARTS PIÈCES PIEZAS AND COMPONENTS ET COMPOSANTES Y COMPONENTES DOOR | PORTE | PUERTA Part Nom de la pièce Pieza Cant. Door glass panel Panneau de porte en verre Panel de puerta en vidrio Fixed glass panel Panneau de verre fixe Panel fijo Wall jamb Montant mural...
- Page 5 TOOLS OUTILS HERRAMIENTAS REQUIRED REQUIS NECESARIAS Electric drill Level Pencil Perceuse électrique Niveau Crayon Taladro eléctrico Nivel Lápiz ¼'' ceramic drill bit 15/64" drill bit Mèche à céramique Mèche de 15/64po Clear silicone sealant ¼ po. Broca de 15/64" Silicone claire Broca para Hand-file ceramica...
- Page 6 18" 1⅞" MIN Code Description 139575 Reveal Sleek 71 1/2" x 32 1/2" - 35 1/2" 32 1/2" - 35 1/2" 5 3/8" 23 3/4" - 26 3/4" 139576 Reveal Sleek 71 1/2" x 38" - 41" 38" - 41"...
- Page 7 BEFORE AVANT ANTES YOU BEGIN DE COMMENCER DE COMENZAR Double the studs (2x4) where the wall jambs will be installed. Doubler les montants de bois (2x4) là où les montants muraux seront installés. Duplique los montantes (2x4) en los lugares en los que se instalarán las jambas murales. Doubled stud Montant double Montante doble...
- Page 8 Parts required: Pieces requis: Partes requeridas: WALL JAMB INSTALLATION INSTALLATION DU MONTANT MURAL INSTALACIÓN DEL MONTANTE MURAL A. Place the wall jamb on the threshold and against the shower wall. Align it with the end of the base radius. Verify that is leveled. Mark the position of the wall jamb fastening holes on the shower wall.
- Page 9 Parts required: Pieces requis: Partes requeridas: THRESHOLD BAR INSTALLATION INSTALLATION DE LA BARRE DU SEUIL INSTALACIÓN DE LA BARRA DEL UMBRAL A. Measure the distance between the wall jamb and the shower wall and subtract 1/8'' to that measurement. A. Mesurer la distance entre le montant mura et le mur de douche et soustraire 1/8 po à...
- Page 10 For model 139575 (32 ½ - 35 ½ x 71 ½ in.) ONLY Pour le modèle 139575 (32 ½ - 35 ½ x 71 ½ po.) SEULEMENT Para el modelo 139575 (32 ½ - 35 ½ x 71 ½''.) ÚNICAMENTE...
- Page 11 Parts required: Pieces requis: Partes requeridas: FIXED PANEL INSTALLATION INSTALLATION DU PANNEAU FIXE Apply silicone here INSTALACIÓN DEL PANEL FIJO Appliquer du silicone ici Aplicar silicona aquí A. Apply silicone inside the U-channel. Insert the wall jamb gasket on the fixed panel. Insert glass inside wall jamb and U-channel. Insert shim inside the U-channel to level the panel if needed.
- Page 12 Parts required: Pieces requis: Partes requeridas: FIXED PANEL INSTALLATION INSTALLATION DU PANNEAU FIXE INSTALACIÓN DEL PANEL FIJO A. Fully tighten the set screws in the wall jamb. A. Bien serrer les vis de pression du montant mural. A. Apretar completamente los tornillos de fijación de la jamba mural. INSIDE INTÉRIEUR INTERIOR...
- Page 13 Parts required: Pieces requis: Partes requeridas: SUPPORT ARM INSTALLATION INSTALLATION DU BRAS DE SOUTIEN INSTALACIÓN DEL BRAZO DE SOPORTE A. Verify the panel is leveled. Preinstall the support arm on top of the panel. Verify that the arm is leveled and mark the position of the fastening holes.
- Page 14 SKIP this step for model 139575 (32 ½ - 35 ½ x 71 ½ in.) ONLY SAUTER cette étape pour le modèle 139575 (32 ½ - 35 ½ x 71 ½ po.) SEULEMENT SALTAR este paso para el modelo 139575 (32 ½ - 35 ½ x 71 ½''.) ÚNICAMENTE...
- Page 15 Parts required: Pieces requis: Partes requeridas: HINGES INSTALLATION INSTALLATION DES CHARNIÈRES INSTALACIÓN DE LAS BISAGRAS A. Place the door temporarily and safely on a wall over cardboard. A. Appuyer la porte temporairement et sécuritairement contre un mur sur des cartons. A.
- Page 16 Parts required: 2.5mm Pieces requis: Partes requeridas: DOOR INSTALLATION INSTALLATION DE LA PORTE INSTALACIÓN DE LA PUERTA A. Refer to the hinges blisterpack to select the appropiate guide. Insert it on the bottom hinges. Join the door to the fixed panel by inserting the top hinge in the bottom.
- Page 17 Parts required: 2.5mm Pieces requis: Partes requeridas: DOOR INSTALLATION INSTALLATION DE LA PORTE INSTALACIÓN DE LA PUERTA A. Fasten the set screw. Secure the hinges with the provided screw. A. Sérrer la vis de réglage. Sécuriser les charnières avec la vis fournie. A.
- Page 18 SKIP this step for model 139575 (32 ½ - 35 ½ x 71 ½ in.) ONLY SAUTER cette étape pour le modèle 139575 (32 ½ - 35 ½ x 71 ½ po.) SEULEMENT INSIDE SALTAR este paso para el modelo 139575 (32 ½ - 35 ½ x 71 ½''.) ÚNICAMENTE INTÉRIEUR...
- Page 19 Parts required: Pieces requis: Partes requeridas: FINISHING DETAILS DÉTAILS DE FINITION DETALLES DE ACABADO A. Install the handle on the door as shown. A. Installer la poignée sur la porte tel que démontré. A. Instalar la manija en la puerta como se muestra en la ilustración. B.
- Page 20 Parts required: Pieces requis: Partes requeridas: APPLICATION OF THE SILICONE APPLICATION DU SILICONE APLICACIÓN DE LA SILICONA A. Apply a bead of silicone under the threshold bar cap and place it at the edge of the threshold and against the shower wall. A.
-
Page 22: Maintenance | Entretien | Mantenimiento
A<B A< MAINTENANCE | ENTRETIEN | MANTENIMIENTO Right after installation Check me! Juste après l'installation Cochez-moi! Justo después de la instalación Marcarme! 1. Open the door and verify it closes seamlessly. Also verify that the gap A>B A<B A>B when opened on bottom and top is equal. If not, loose the set screw and adjust the lower or upper hinges until the door closes perfectly and the space between the top and the bottom is equal. -
Page 23: Cada 6 Meses
A<B A<B MAINTENANCE | ENTRETIEN | MANTENIMIENTO Every 6 months Check me! Chaque 6 mois Cochez-moi! Cada 6 meses Marcarme! 1. Open the door and verify it closes seamlessly. Also verify that the gap A>B A<B A>B when opened on bottom and top is equal. If not, loose the set screw and adjust the lower or upper hinges until the door closes perfectly and the space between the top and the bottom is equal. -
Page 24: Garantie Limitée - Canada
LIMITED WARRANTY — UNITED STATES MAAX Bath Inc. offers express limited warranty on each of its products. This warranty extends only to the original owner/end-user for personal household use. For commercial uses, additional limitations apply. For accessing product Limited warranty please visit: www.maax.com/us-warranty...
