New Construction Installation

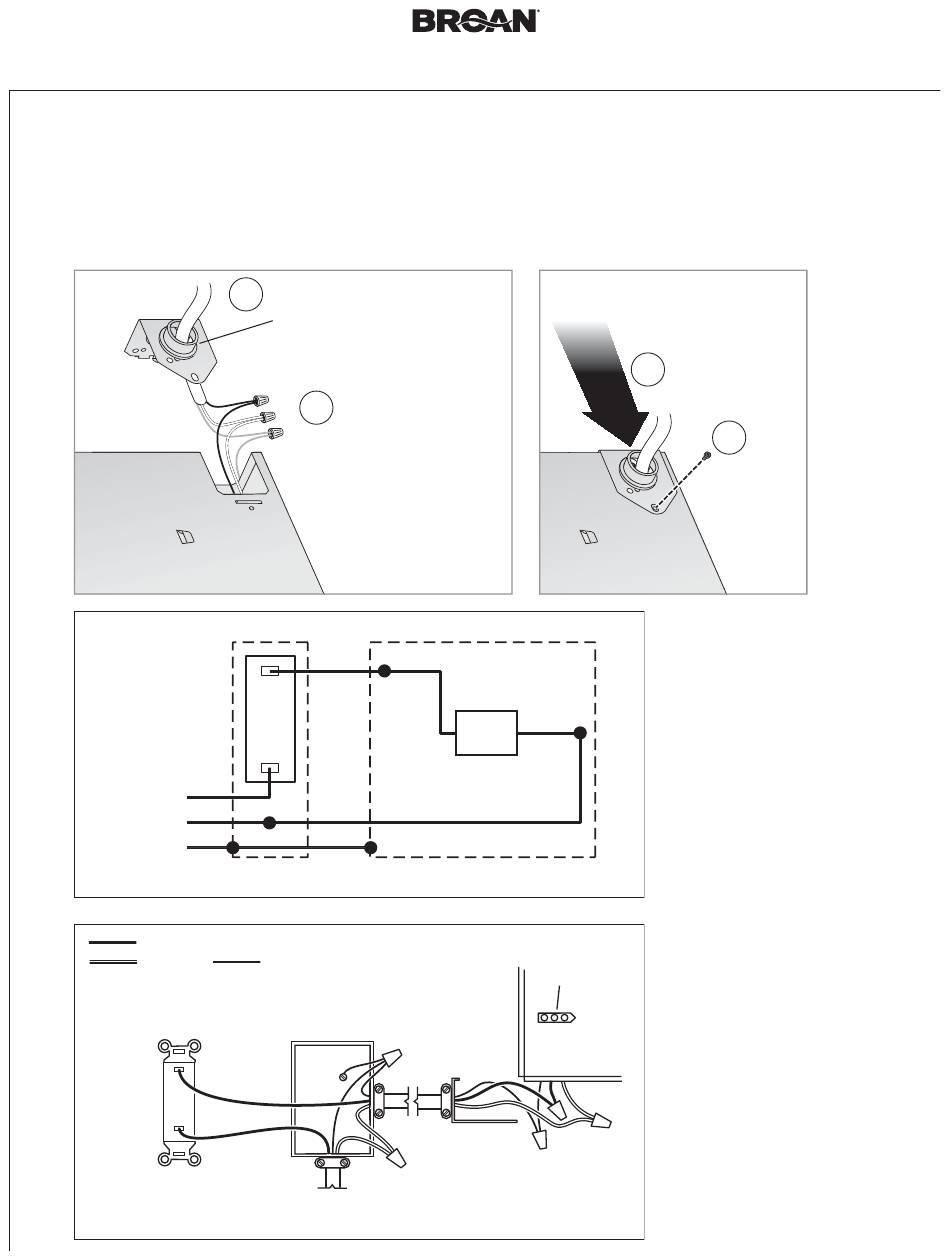

5 Connect Wires and Install Knockout Plate
• Run 120VAC electrical wiring to the installation location.
• Use proper UL-approved connectors to secure wiring to the Knockout Plate provided in Parts Bag.
• Connect wires as shown in wiring diagram.
ON/OFF
SWITCH
LINE
IN
BLACK
WHITE
ON/OFF
SWITCH
(purchase separately)
Attach cable clamp to Knockout
1
Plate. Knockout Plate mounts to
outside of Housing and may be
oriented as desired.
2
Connect wires
BLK
BLK
WHT WHT
GRD GRD
SWITCH BOX
GROUND (green or bare)
SWITCH BOX
120 VAC LINE IN
BLK
WHT
FAN
UNIT
RECEPTACLE
KNOCKOUT
PLATE
RB80C  RB110C Installation Guide

3
4
Screw from
Parts Bag
