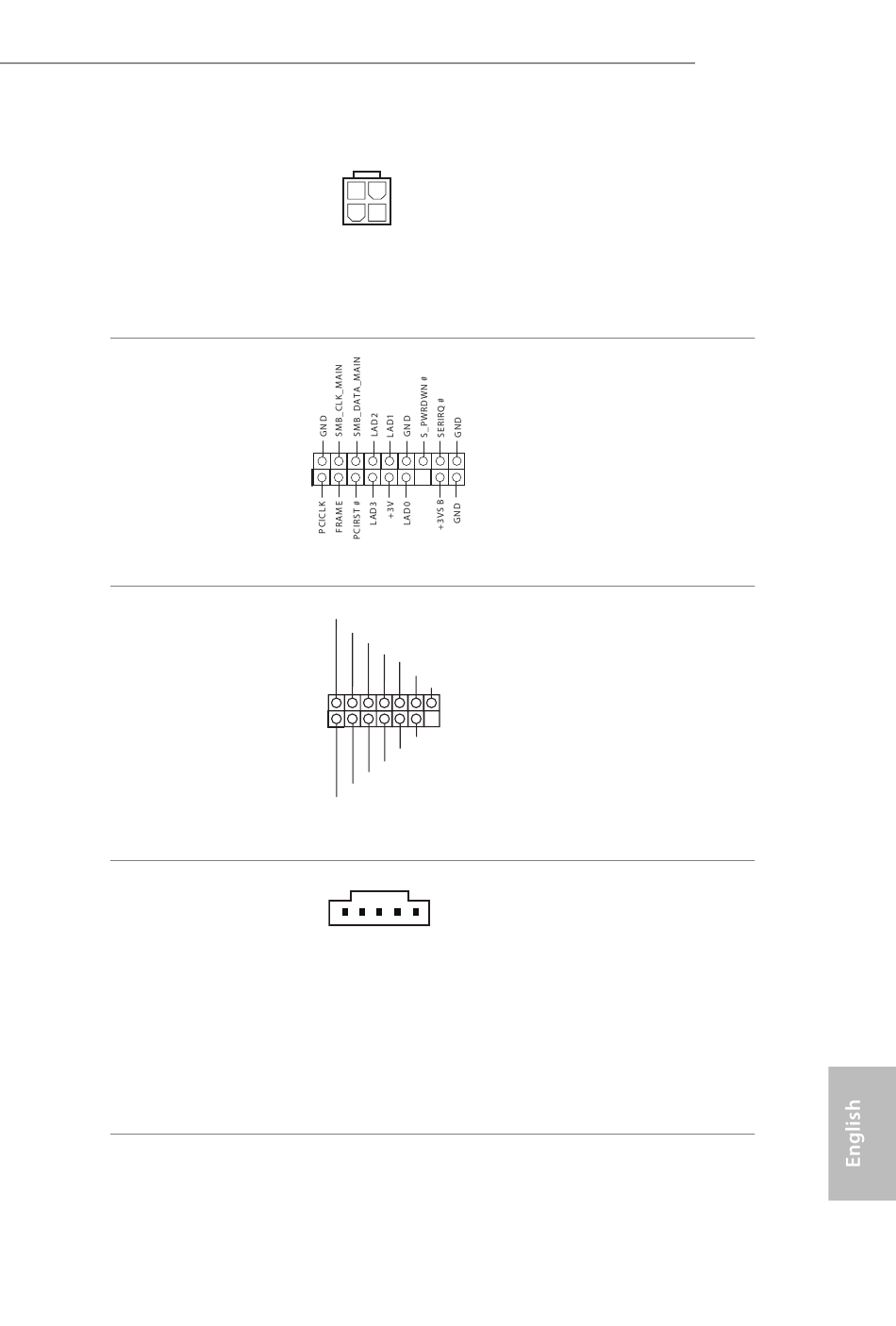

ATX 12V Power
Connector
(4-pin ATX12V2)
(see p.1, No. 2)
LPC/TPM Header
(17-pin TPMS1)
(see p.1, No. 30)
SPI TPM Header
(13-pin SPI_TPM_J1)
(see p.1, No. 33)
Thunderbolt AIC
Connector
(5-pin TB1)
(see p.1, No. 31)
1
SPI_DQ3
+3.3V
Dummy
CLK
SPI_MOSI
RST#
TPM_PIRQ
1
SPI_TPM_CS#
GND
RSMRST#
SPI_MISO
SPI_CS0
SPI_DQ2
1
Please connect an ATX
12V power supply to this
connector.
*The power supply plug
fits into this connector in
only one orientation.
This connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certificates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
This connector supports SPI
Trusted Platform Module (TPM)
system, which can securely store
keys, digital certificates, pass-
words, and data. A TPM system
also helps enhance network
security, protects digital
identities, and ensures platform
integrity.
Please connect a Thunderbolt™
add-in card (AIC) to the
Thunderbolt AIC connector via
the GPIO cable.
*Please install the Thunderbolt™
AIC card to PCIE5 (default
slot).
*For the further information,
please visit www.asrock.com.
X570 Taichi
35
