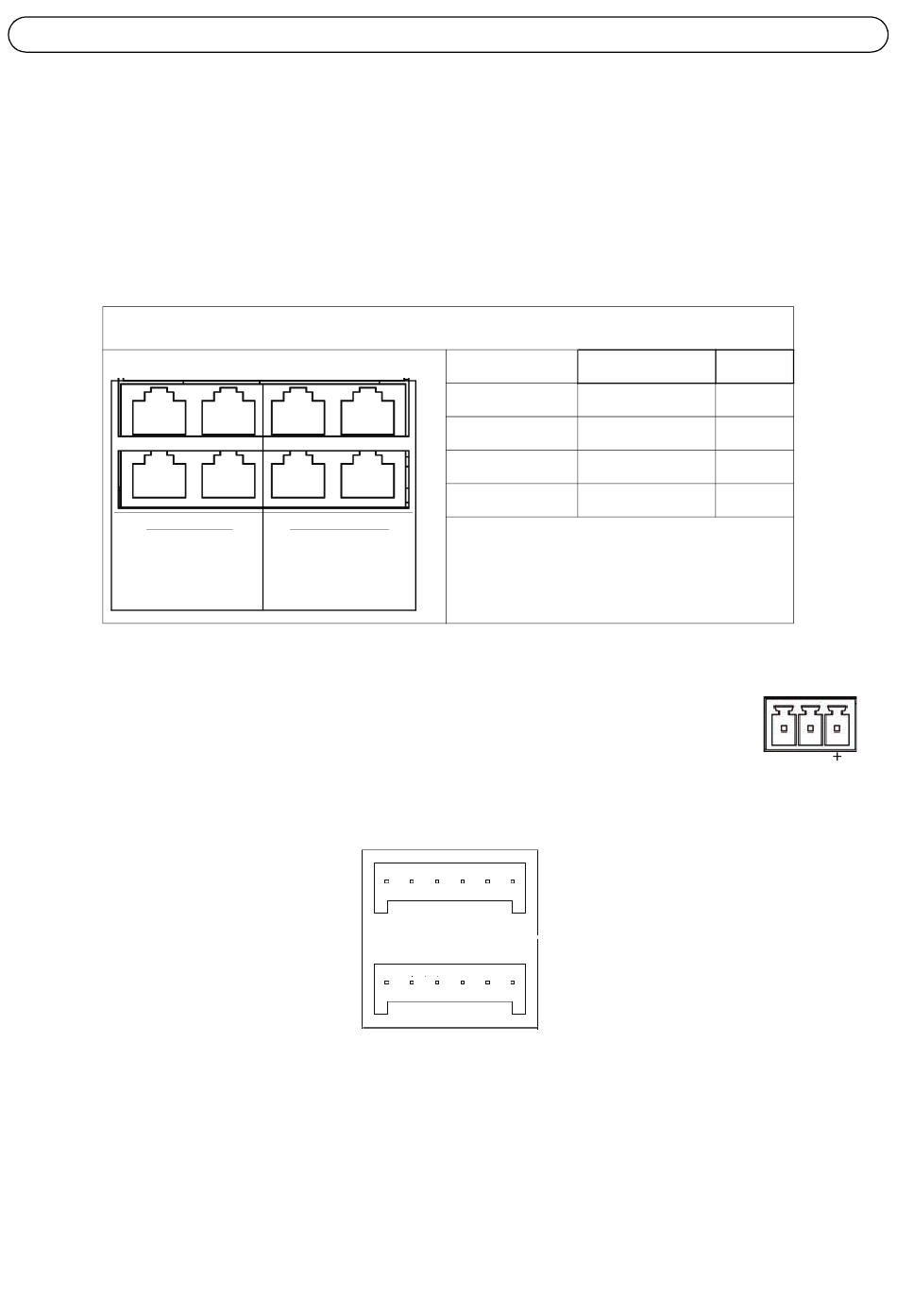

Unit connectors

8 PoE network connectors - RJ-45 Ethernet connectors. Provides power to up to 8 network
cameras that are PoE enabled Class 1. The PoE ports are divided into a left and right group of four.
A maximum load of 16W is allowed per group. For example, a PoE class 0 can be connected in the
left group and up to 4 PoE class 1 can be connected in the right group. If a PoE class 0 is
connected, the other ports in the group must not be used. See illustration below and Technical
specifications on page 15.
Possible combinations
1
5
Left group
4 PoE class 1
1 PoE class 0
Max load = 16W Max load = 16W
Network connector- 1 Gbit port for external network connection.
Power connector- 3-pin terminal block. Use a fused power supply: 12V DC (10A) or
24V DC (5 A)
2 USB 2.0 ports - To be used with any peripheral USB device. Max load = 500mA
I/O connector - 2 digital output ports and 8 digital input ports.
2 3 4
6 7 8
Right group
4 PoE class 1
1 PoE class 0
2 4 6 8 10 12
1 3 5 7 9 11
Left group Right group
4 PoE Class 1 4 PoE Class 1
4 PoE Class 1 1 PoE Class 0
1 PoE Class 0 4 PoE Class 1
1 PoE Class 0 1 PoE Class 0
AXIS Q8108-R User's Guide
Total
8
5
5
2
-
