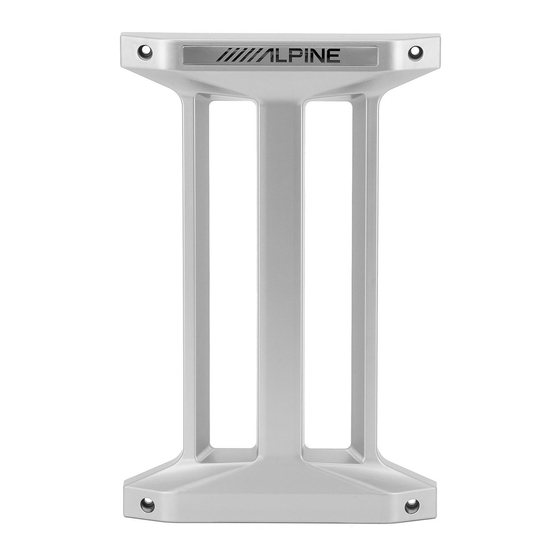

KTX-H12 & KTX-H10 Linking Kit Installation Manual
Compatible with the following models:
R-SB12V, R-SB10V, S-SB12V, S-SB10V
Introduction
Congratulations on purchasing the KTX-H12 or H10. This installation manual is designed to take you through the
step-by-step installation of the linking your 'R' or 'S' Series Halo Enclosures Together. Please familiarize yourself with
the owners manual and if you still have additional questions please call 1-800-TECH-101.
Note: To ensure safe use, Always follow these precautions.
The installation of this product requires specialized skills and experience. We recommend that you have the product
installed by an Alpine authorized dealer.
Before you use this product, be sure to carefully read this installation manual so that you can use the product
correctly, Failing to do so could lead to damaged equipment or an accident. Alpine Electronics bears no responsibility
for problems that arise as a result of failure to follow the instructions in the manual.
˜ Make sure enclosure is secured to the vehicle. Failing to do so can lead to electric shock, injury or damage to
equipment.
˜ When making a hole in the vehicle body, be careful to avoid damaging pipes, the fuel tank, electrical wiring,
and the like. This kind of damage could lead to an accident or fire.
˜ Do not install the product where it may be exposed to water or in a place with high levels of humidity or dust.
Doing so could lead to fire or damaged equipment.
˜ Start all screw threads by hand and avoid overtourqing screws, failure to do so may damage your equipment.
If using the KTE-10G, or KTE-12G Grille Kit do not use the supplied wood screws, instead use the 40mm
˜
machine screws pre-installed with the enclosure.
1

Publicité

loading

Sommaire des Matières pour Alpine KTX-H12

  • Page 1 R-SB12V, R-SB10V, S-SB12V, S-SB10V Introduction Congratulations on purchasing the KTX-H12 or H10. This installation manual is designed to take you through the step-by-step installation of the linking your ‘R’ or ‘S’ Series Halo Enclosures Together. Please familiarize yourself with the owners manual and if you still have additional questions please call 1-800-TECH-101.
  • Page 2: Accessory List

    Tools Required Hex Key Driver (Included) Power Drill with a Low Torque Setting (Optional) Accessory List Front Port Link (1 Pc) Front Port Brace (2 Pcs) Front Port Link M5X25 Hardware Screws (4Pcs) Rear Link M5X14 Hardware Screws (8 Pcs) Center Alignment Hardware (4 Pcs) Rear Link Plate (1 Pcs)
  • Page 3 KTX-H12 12”, KTX-H10 10” Enclosure Link Instruction By hand tighten (2) threaded center alignment Slide both enclosures together nesting the center dowels into each enclosure. (4 Total) alignment dowels into the opposing enclosure snugly. On the rear of the combined boxes align the rear Take (8) M5 14mm screws and carefully start linking bracket to sit flush into the recessed area.
  • Page 4 KTX-H12 12”, KTX-H10 10” Enclosure Link Instruction (continued) Align the braced front port cover to the four empty Locate the (4) M5 Screws 25mm you just removed, screw holes around the perimeter of each port and hand tighten screws into the threaded holes with the included hex key wrench.
  • Page 5 Introduction Félicitations pour votre achat de la trousse KTX-H12 ou H10. Ce manuel d'installation est conçu pour vous guider pas à pas dans l'installation de la liaison entre vos caissons Halo de la série "R" ou "S". Veuillez vous familiariser avec le manuel du propriétaire et appeler le 1-800-TECH-101 si vous avez des questions.
  • Page 6: Outils Requis

    Outils requis Perceuse électrique avec réglage à faible couple Clé hexagonale (incluse) (en option) Liste des accessoires Liaison de port avant (1 pièce) Renfort de port avant (2 pièces) Vis de fixation de liaison arrière M5X25 (4 pièces) Vis de fixation de liaison arrière M5X14 (8 pièces) Matériel d'alignement central (4 pièces) Plaque de liaison arrière (1 pièce)
  • Page 7 Instructions pour liaison du caisson KTX-H12 de 12 po, KTX-H10 de 10 po Faites glisser les deux caissons ensemble en Serrez à la main les (2) chevilles d'alignement emboîtant solidement les chevilles d'alignement centrales filetées dans chaque caisson. (4 au total) centrales dans le caisson opposé.
  • Page 8 Instructions pour liaison du caisson KTX-H12 de 12 po, KTX-H10 de 10 po (suite) Alignez le couvercle de port avant renforcé sur Localisez les (4) vis M5 de 25 mm que vous venez les quatre trous de vis vides sur le périmètre de d'enlever, et serrez les vis à...
