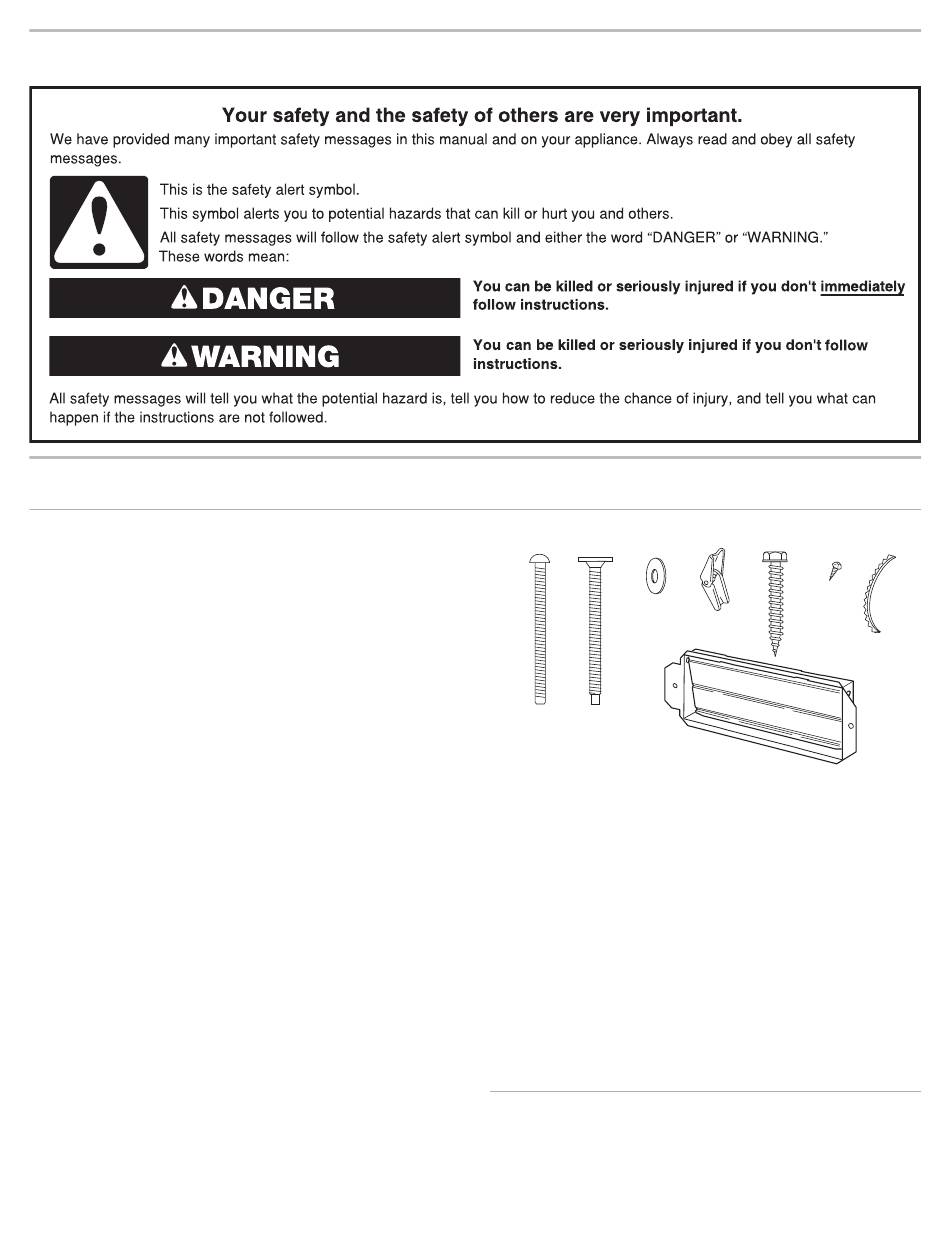

MICROWAVE HOOD COMBINATION SAFETY

Tools Needed
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Measuring tape
Pencil
Masking tape or
thumbtacks
Scissors
No. 2 Phillips screwdriver
No. 3 Phillips screwdriver
for 1/4 - 20 x 3" (7.6 cm)
bolts
Drill
3/16" (5 mm), 3/8" (10 mm),
5/8" (16 mm) drill bits
3/4" (19 mm) hole saw
Parts Supplied
For information on reordering, see the "Replacement Parts"
section.
NOTE: The hardware items listed here are for wood studs.
For other types of wall structures, be sure to use appropriate
fasteners.
2

INSTALLATION REQUIREMENTS

Tools and Parts

Diagonal wire-cutting pliers
Stud finder
7⁄16" (1.1 cm) socket
wrench (or box wrench) for
1/4" x 2" (0.64 x 5.1 cm) lag
screws
1
/
" (3.8 cm) diam. hole
1
2
drill bit for wood or metal
cabinet
Keyhole saw
Caulking gun and
weatherproof caulking
compound
Duct tape
A
B
C
H
A. 3/16 - 24 x 3" round-head
bolts (2)
B. 1/4 - 20 x 3" flat-head bolts (2)
C. Washers (2)
D. 3/16" toggle nuts (2)
E. 1/4" x 2" lag screws (2)
F. #6 x 3/8" Sheet metal screws (2)
G. Power supply cord bushing (1)
H. Damper assembly (for wall or
roof venting)
NOTE: Depending on model, aluminum grease filter and
charcoal filter may be combined.
Materials Needed
Standard fittings for wall or roof venting. See the "Venting
Design Specifications" section.

Location Requirements

Check the opening where the microwave oven will be installed.
The location must provide:
Minimum installation dimensions. See the "Installation
Dimensions" illustration.
D
E
F
G
:
Not Shown
Upper cabinet template
Mounting plate (attached to
back of microwave oven)
Cardboard template (part of
packaging) or wall template
Aluminum grease filters
Charcoal filters (Depending
on model, charcoal filters may
not be included. See User
Instructions.)
