Mounting in a Rack

Mounting in a Rack
If multiple high-power amplifiers are mounted in a rack with poor ventilation, the heat from the amplifiers will
cause the interior of the rack (and the amplifiers) to become very hot, which may cause problems with amplifier
performance. If amplifiers are mounted in a rack without an open rear, you should use special care to help
ensure proper ventilation of the rack.
Here are suggestions to help keep the amplifiers properly ventilated:
1. Leave a space of at least 10 cm (4 inches) between the rear door of the rack and the rear panel of the amplifier.
2. Install a fan or blower in the rack to help cool the equipment.
3. Install blank (or vent) panels between amplifiers.

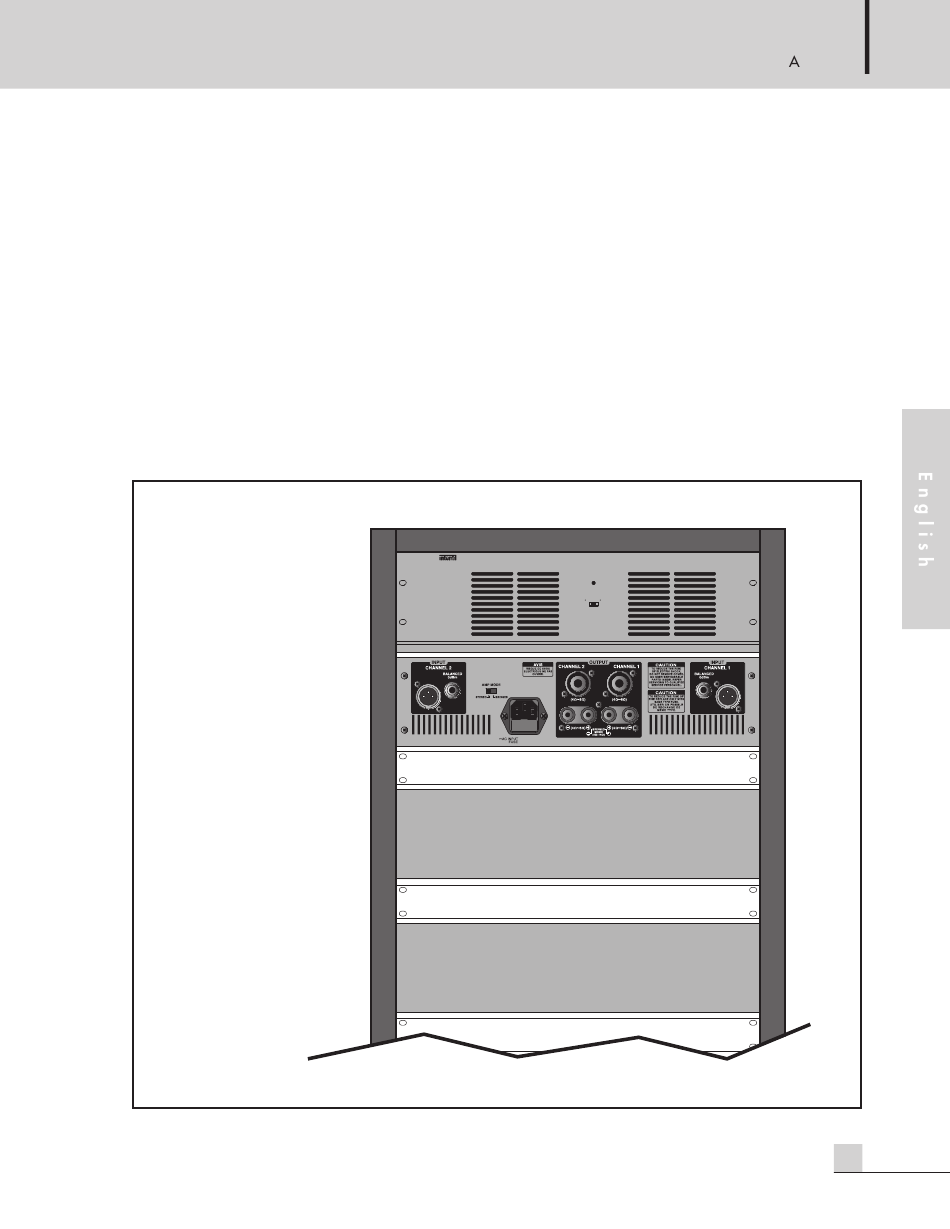

Typical Rack with multiple amplifiers
Auto Blower(PF-9302)
R150 PLUS/300 PLUS/500 PLUS
R150 PLUS/300 PLUS/500 PLUS
R150 PLUS/300 PLUS/500 PLUS
PF-9302
Blank Panel
Blank Panel
AUTO BLOWER
POWER LED
OFF MANUAL AUTO
R150 PLUS/300 PLUS/500 PLUS
REFERENCE MPLIFIER
