Connections

Connections
Inter-M products are wired to reflect accepted wiring practices used throughout the world.

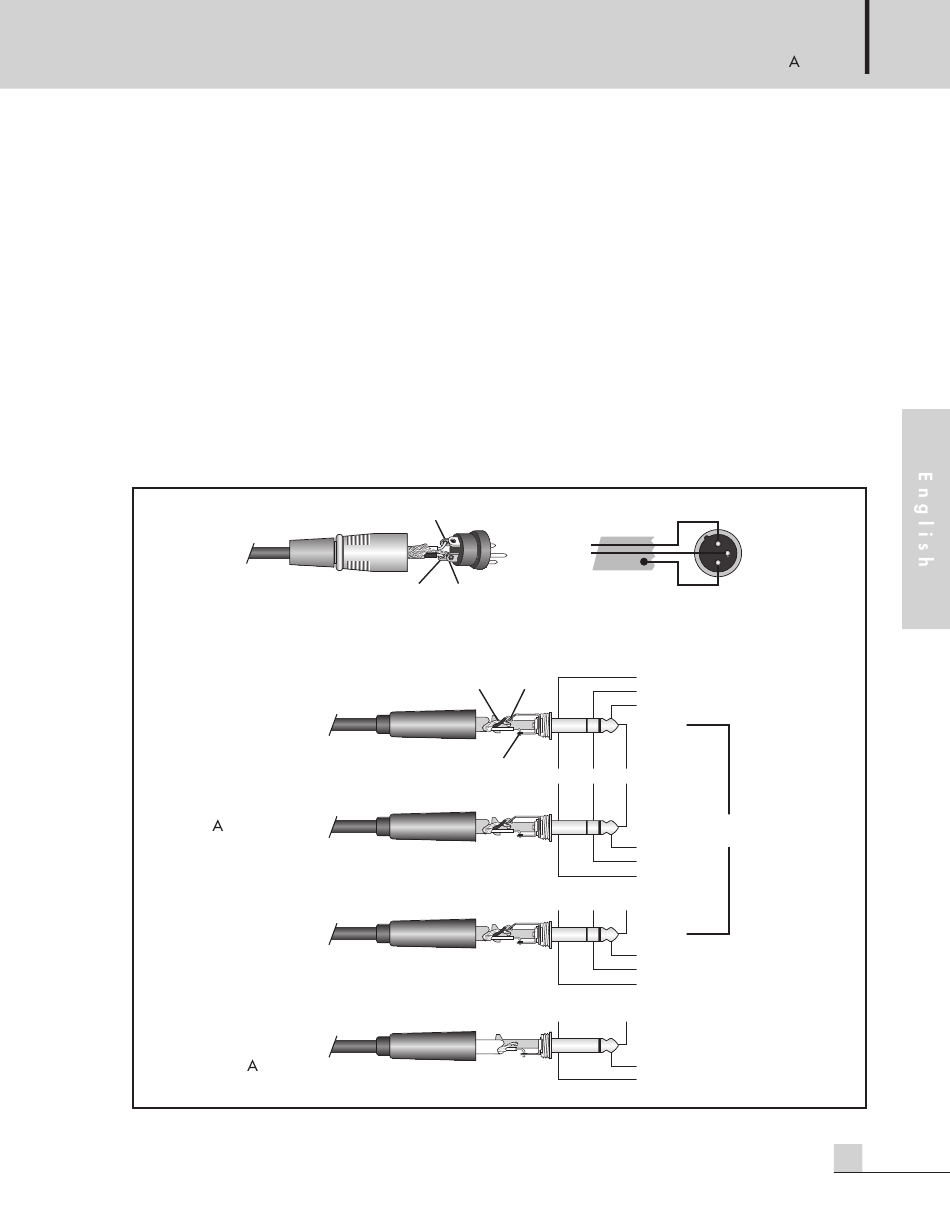

Balanced XLR connectors are wired as described:
Pin #1 Shield
Pin #2 Positive
Pine #3 Negative
Balanced 1/4" TRS connectors are wired as described:
Tip is Positive
Ring is Negative
Sleeve is Shield
Insert Points
mp/Line Input
Headphones
Unbalanced
Input/Output
UX Send
Hot (positive)
Hot (positive)
Cold (negative)
Cold (negative) Sleeve
Balanced Input
Sleeve Ring
Tip
Sleeve
Sleeve
Sleeve
R150 PLUS/300 PLUS/500 PLUS
REFERENCE MPLIFIER
2
3
Screen
1
Screen
Return
Send
Ring Tip
3 Pole (Stereo) Jack
Hot ( positive )
Cold ( negative )
Screen
Ring Tip
Left Signal
Right Signal
Ground
Tip
2 Pole (Mono) Jack
Signal
Ground
