6. CoNtroL ELEmENtS

13
4
5
7
11

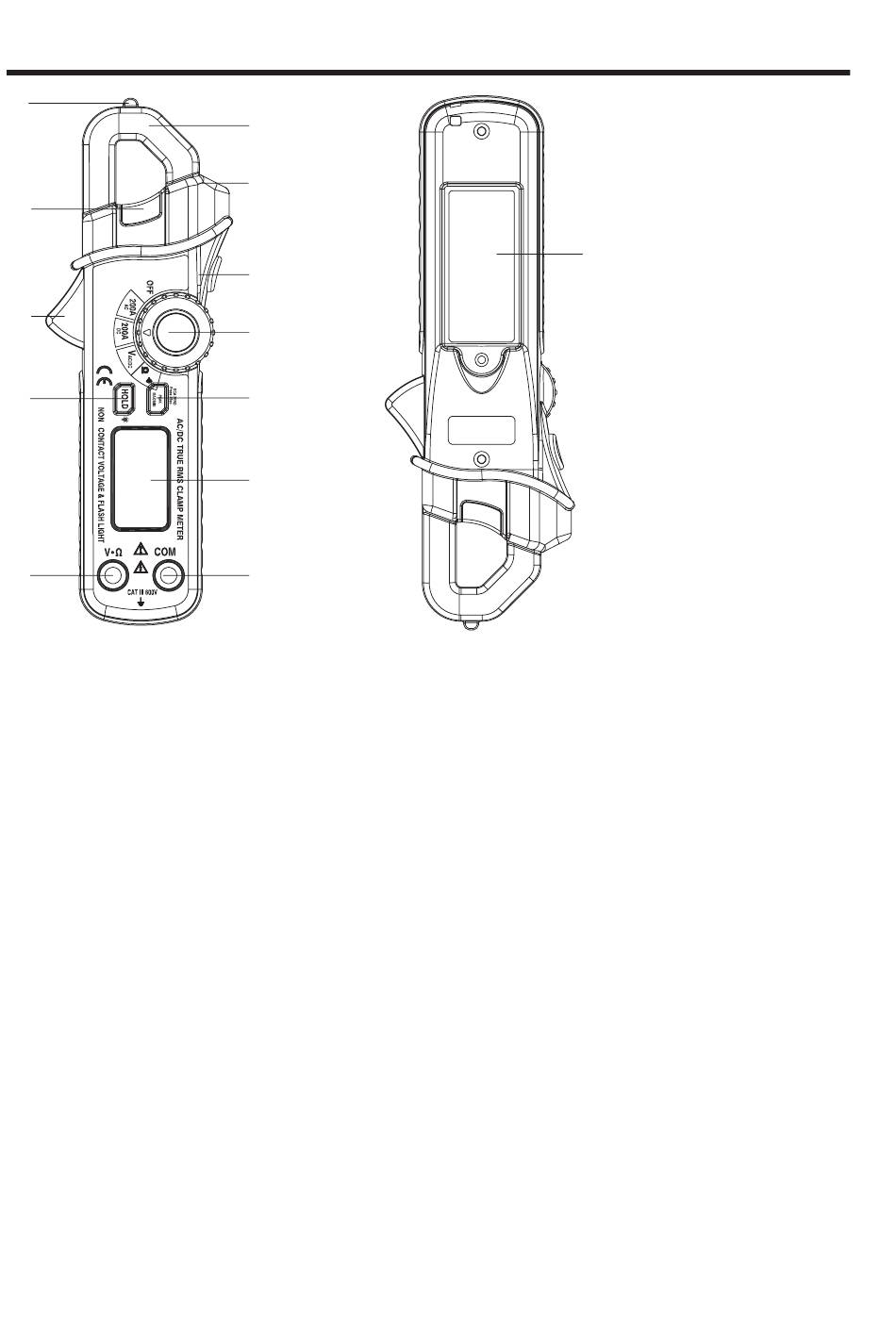

1. Current injection probe sensor
2. LED work field lighting
3. Button for LED work field lighting
4. LED-display for contact-free voltage recognition
5. Opening lever for current injection probe sensor
6. Setting wheel for measuring type
7. "HOLD" and lighting button
8. "PEAK / MAX MIN / AC/DC / DCA-ZERO" button
9. LC display
10. Measuring line connection COM
11. Measuring line connection voltage and resistance
12. Battery compartment lid
13. Sensor for the non-contact AC voltage detection (NCV)
1
2
3
6
8
9
10
12
