Intended use
The RC800 replacement chain has been specifically designed for
use with the CCS818 Cordless Chain Saw and NPP2018
Cordless Pole Saw.
WARNING: Read all instructions. Failure to follow all
instructions listed below may result in electric shock, fire and/or
serious injury.
SAVE THESE INSTRUCTIONS
Reduced Kickback Chain - The RC800 chain is designed with a
contoured depth gauge and guard link which deflect kickback force
and allow wood to gradually ride into the cutter.
WARNING: Some dust created by power sanding, sawing,
grinding, drilling, and other construction activities contains
chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber. (CCA)
Your risk from these exposures varies, depending on how often
you do this type of work. To reduce your exposure to these
chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are
specially designed to filter out microscopic particles.
• Avoid prolonged contact with dust from power sanding,
sawing, grinding, drilling, and other construction activities.
Wear protective clothing and wash exposed areas with soap
and water. Allowing dust to get into your mouth, eyes, or lay on
the skin may promote absorption of harmful chemicals.
WARNING: Use of this tool can generate and/or disburse
dust, which may cause serious and permanent respiratory or
other injury. Always use NIOSH/OSHA approved respiratory pro-
tection appropriate for the dust exposure. Direct particles away
from face and body.
WARNING: Always wear eye protection.
CAUTION: Wear appropriate personal hearing protection
during use. Under some conditions and duration of use, noise
from this product may contribute to hearing loss.
Replacing the Saw Chain
CAUTION: Sharp chain. Always wear protective gloves
when handling the chain. The chain is sharp and can cut you
when it is not running.
WARNING: Sharp moving chain. To prevent accidental
operation, insure that battery is disconnected from the tool
before performing the following operations. Failure to do this
could result in serious personal injury.

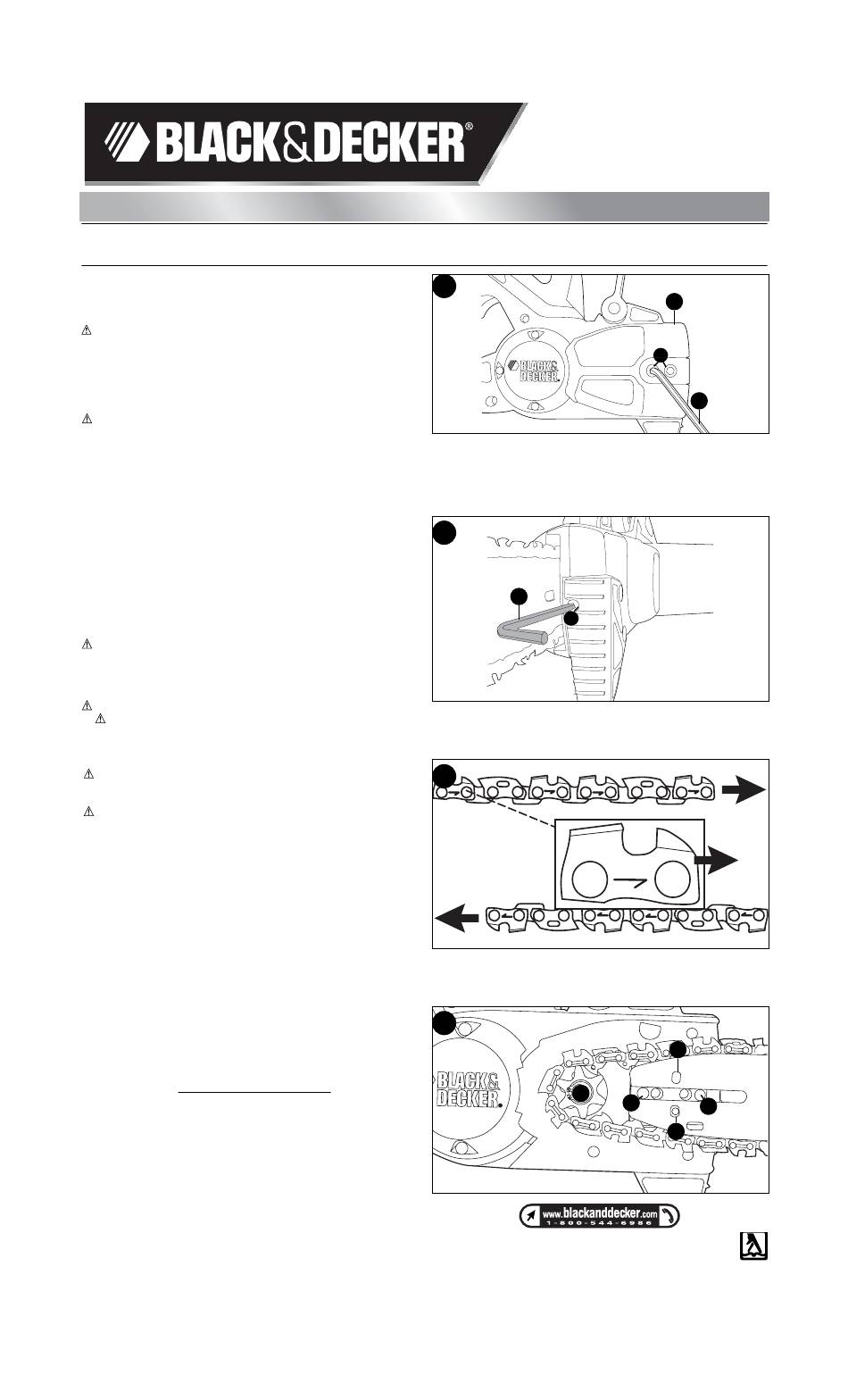

• Place the saw on a firm surface. Rotate the two allen head
screws (1) (on socket cover (2)) counterclockwise with the
wrench (3) as shown in figure A.
• To remove the saw chain, rotate the tension adjustment screw (4)
in the front of the housing using the flat screwdriver end of the
wrench (3) as shown in figure B. Turning the screw
counterclockwise allows the guide bar to recede and reduces the
tension on the chain so that it may be removed.
• Remove sprocket cover (2) and allen head screws (1).
• Lift the worn saw chain out of the groove in the guide bar.
• Place new chain in groove of guide bar making sure saw teeth
are facing correct direction by matching arrow on chain with
graphic on housing shown in figure C.
• Place the saw chain and guide bar assembly around the sprocket
(5). Check to make sure that the slot (6) in the guide bar is over
the two location pins (7) shown in figure D and that the hole
below the slot is located over the adjustment pin (8).
• Replace sprocket cover (2) and thread allen head screws (1) in with
wrench until snug, then back wrench off one full turn.
• Pull bar nose up and keep it up as you adjust tension.
• Rotate the tension adjustment screw (4) in the front of the
housing clockwise to increase the chain tension.
• Follow instructions in "Adjusting Chain Tension" section of
saw manual.
• While still holding the bar nose up, securely tighten the rear allen
screw (1) first, then tighten the front allen screw.
• When the chain is new check the tension frequently (after
disconnecting battery) during the first 2 hours of use as a new
chain stretches slightly.
Service Information
Whether you need technical advice, repair, or genuine factory
replacement parts, contact the Black & Decker location nearest you.
To find your local service location, refer to the yellow page directory
under "Tools–Electric" or call: 1-800-54-HOW TO (544-6986).
a a c c e e m m e e n n t t c c h h a a i i n n
a a c c e e m m e e n n t t c c h h a a i i n n
RC800 - INSTRUCTION SHEET
f f o o r r C C C C S S 8 8 1 1 8 8 a a n n
f f o o r r C C C C S S 8 8 1 1 8 8 a a n n
A
B
3
C
D
Black & Decker (U.S.) Inc.,
701 E. Joppa Rd.
Towson, MD 21286 U.S.A.
Cat No. RC800
Copyright © 2006 Black & Decker
d d N N P P P P 2 2 0 0 1 1 8 8 S S a a w w
d d N N P P P P 2 2 0 0 1 1 8 8 S S a a
2
1
3
4
6
5
7
7
8
See 'Tools-Electric'
– Yellow Pages –
for Service & Sales
Form #623382-00 AUG. '06
