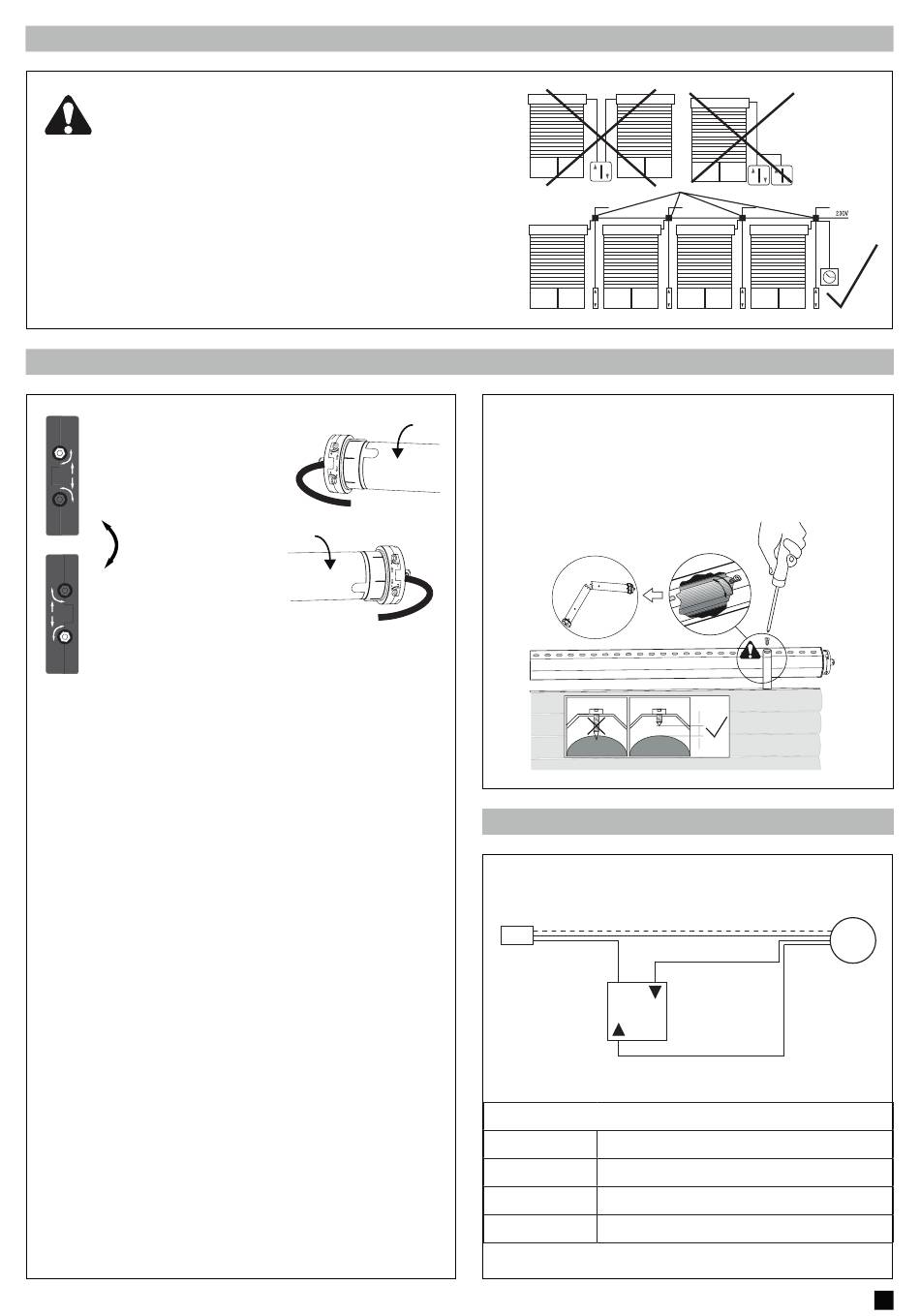

ELECTRICAL CONNECTION

Never connect more than one motor to a timer or wall
switch without using a central module – (available as an
accessory), i.e. one central module is required for each
connected motor.
Pour l'installation du moteur du côté gauche, suivre le diagramme de
câblage exactement comme indiqué pour l'accessoire de commande.
Pour le sens correct de rotation avec une installation du moteur du côté
droit, les fils électriques (marron et noir) doivent être inversés entre
l'accessoire de commande et le moteur. (Voir les instructions jointes à
l'accessoire choisi).
Demander à un électricien qualifié d'effectuer le raccordement
électrique conformément au code électrique en vigueur.
SETTING THE LIMITS "OPEN" AND "CLOSE" POSITIONS
# White screw
A
# Red screw
+ = Stops later
– = Stops earlier
# Red screw
B
# White screw
My roller shutter box is:
A. A left-handed installlation. I look into the box and the limit
switch of the motor is on the left (see Fig. 10)
White = Limit switch AT BOTTOM
Red = Limit switch AT TOP
B. A right-handed installlation. I look into the box and the limit
switch of the motor is on the right (Siehe Abb. 11)
Red = Limit switch AT BOTTOM
White = Limit switch AT TOP
PLEASE READ THROUGH AND NOTE THE FOLLOWING
INSTRUCTIONS ACCURATELY BEFORE SETTING THE END
POSITIONS.
Connect a suitable switch to the roller shutters. Run the roller
shutter drive downwards until it switches itself off and then (and
only then) attach the roller shutter jacket to the shaft.
Allow drive to run upwards. If the drive switches off too early, the
lower adjustment screw must be adjusted in the plus direction to
the desired end point under the window frame. Each full turn of
this screw extends the travel path by about 40° of one turn of the
motor. The motor should stop just a few inches below the window
frame. If not the adjusting screw should be adjusted in the minus
direction. After this the drive must be driven back a little and then
up again to check the result. It is possible that the drive will switch
off after several trips because it has reached a temperature which
is too high. However after 15 – 20 minutes cooling time it will be
ready to operate again.
Please note that the limit switches of the drive only function
properly if the drive has been installed correctly and is
completely within the shaft.
Fig. 10
Fig. 11
Arrows show the direction the shutter
will coil up with the drive installed left-
or right hand side.
Advice: In order to fix the roller shutter hangers to the shaft,
ONLY use supplied short fixing screws (11). If the screws are
too long damage may occur to the motor. The recommended
fixing method for the hangers is without screws by means of
spring band loops (which are hooked on).
Fig. 12
CONNECTION OF THE RWS1 SWITCH
Main 230V/50
L
Fig. 13
Color Scale for Drive Table (4 x 0.75 mm²)
1 yellow-green Equipment Grounding Conductor PE
2 blue Neutral N (MP)
3 black Phase Direction of Rotation 1
4 brown Phase Direction of Rotation 2
15
Fig. 9
PE (yello-green)
M
N (blue)
L1.1 (black)
L1.2 (brown)
