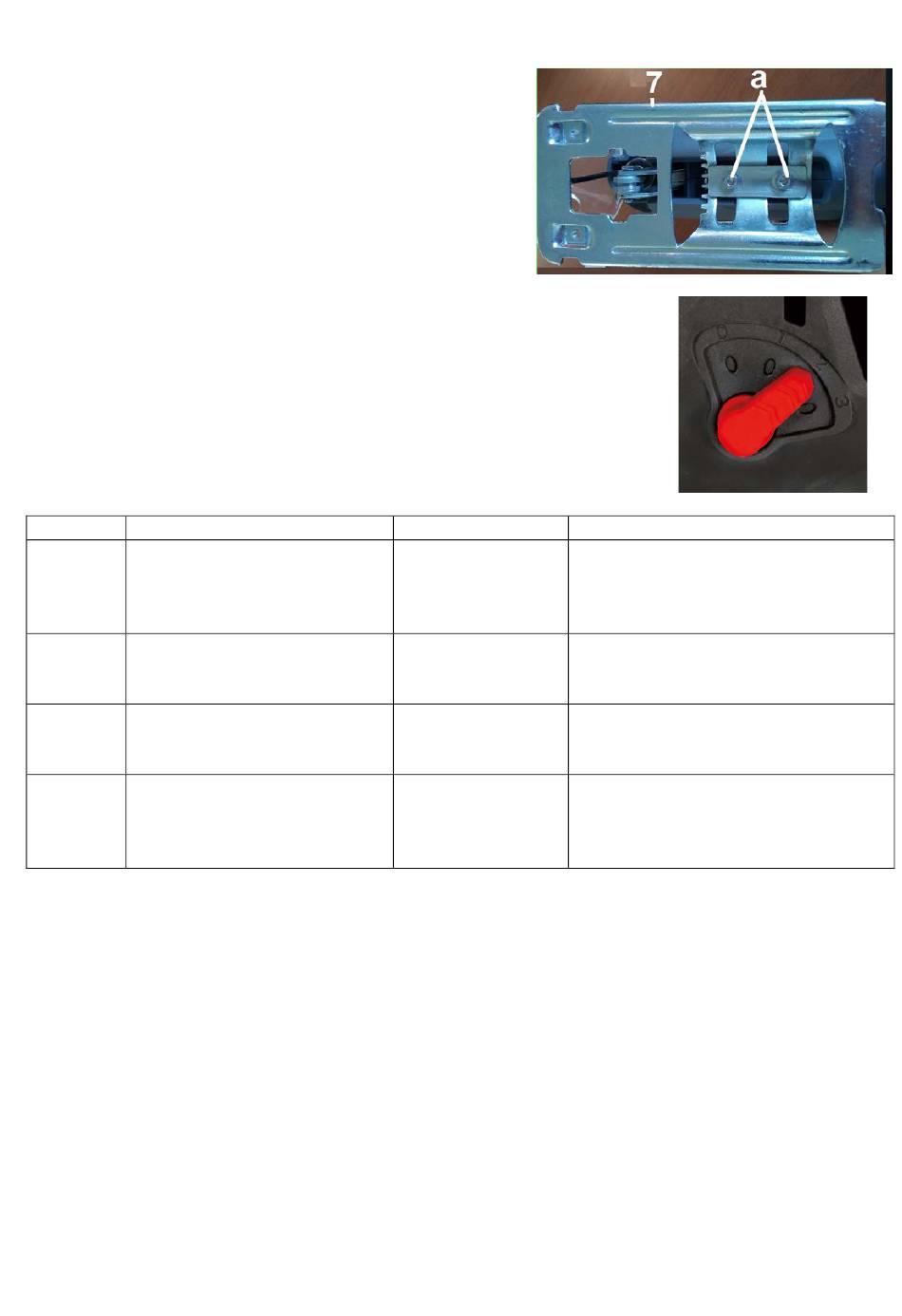

5.3- Adjusting the base (for miter and sawing near edges)
Use a hex-key (not supplied) to unscrew the two screws (a)
on the bottom of the base (7).
For miter and bevel cuts you can swivel the base by up to
45° in either direction after unscrewing the two screws.
The angles 0°, 15°, 30° and 45° are marked but you can
adjust the saw to any angle between these markings as
required.
Adjust to the required angle and re-tighten the screws.
5.4- Setting the pendulum action
The pendulum action (or orbital action) consists of the blade stroking up
and down and simultaneously rocking in a pendulum-like motion i.e. the
blade moves forwards & backwards.
The selector switch (6) for pendulum action has a 4-position setting.
The setting will depend on the type of cut and the material you are working
on.
A low pendulum action usually results in a smooth and clean cut.
A high pendulum action usually results in a coarse aggressive cut.
Position Blade movement
0 No pendulum action.
The blade moves up and down
in a straight line, allowing a
smooth but unaggressive cut
1 Light pendulum action
2 Medium pendulum action
3 High pendulum action
The blade moves in an
elliptical stroke, allowing a
more aggressive cut.
Tips: if you find the pendulum action setting you have selected is cutting the material too aggressively, you
can always change the setting in the middle of the cut.
5.5- Dust extraction
The jigsaw is equipped with a dust extractor connector (5).
Any vacuum cleaner can be connected to the connector on the rear of the jigsaw.
If you required a special adapter, please contact the manufacturer of your vacuum cleaner.
Connect to the hose of your vacuum cleaner to the connector (5).
Type of cut
All types of cut
Plunge cut
Curved cut
Scroll cut
Straight cut (by
hand)
Straight cut (with
guide)
Material
Soft steel; stainless steel, sheet metal
Plastics
Clean cut in Soft wood, plywood
Ceramics
Soft steel, aluminium
Plastics
Solid wood, particle board
Fast cut in soft steel, aluminium
Plastics
Coarse cut in Soft wood, plywood
Fast cut in soft wood, plywood
Materials where a faster & coarser cut
is needed.
