4.3.2 Frequency and Level Configuration

To change the level or frequency of a pilot signal, first select the signal by moving
the cursor with the rotary selector [1] (turning it) and confirm the selection by pressing
the selector [1]. A second cursor will appear on the ten digit of the frequency cell. Press
repeatedly the rotary selector [1] until this cursor is over the digit to change and turn the
selector [1] in a clockwise (increasing the frequency) or counter clockwise direction
(decreasing the frequency).
FREQ dBmV

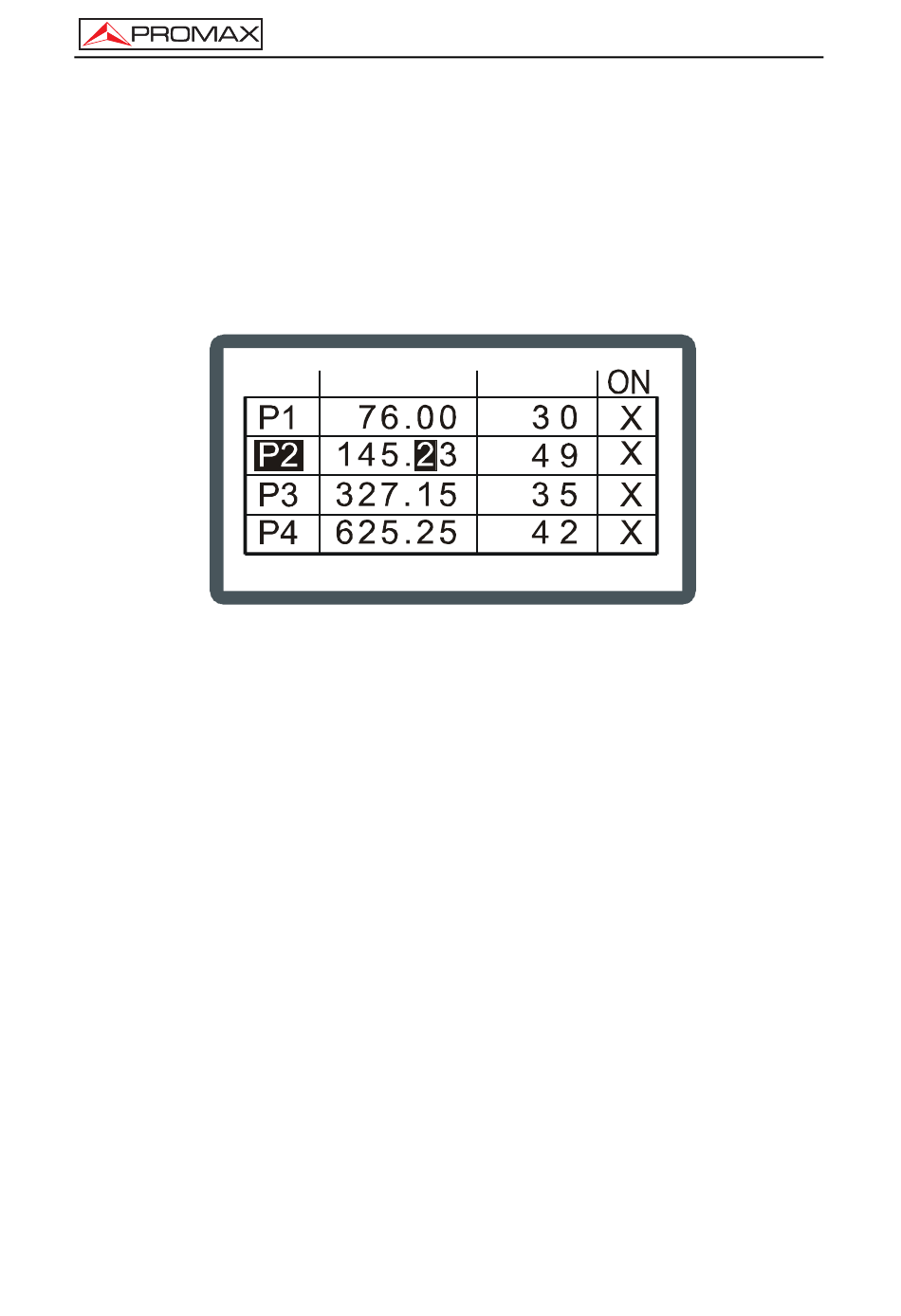

Figure 4.- Frequency configuration.
If you wish to modify the level, press repeatedly the rotary selector [1] to move the
second cursor to the desired position of this cell (ten or units). Then, to change the
level, turn the rotary selector [1] in a clockwise direction to increase the level, or in an
anti-clockwise direction to decrease it.
