Before using the Mounting hooks, carefully read the installation instructions as well as the installation
instructions for basic carrier systems, and follow all usage instructions. After reading the installation
instructions, keep it in a safe place along with the installation instructions for basic carrier systems. If you
are to give the mounting hooks to a third person, provide the installation instructions to ensure safe
installation and usage. If you have any questions regarding the installation instructions, contact our
customer service listed below.
Install hooks correctly at specified positions according to the installation instructions herein and the installation instructions for the
applicable carrier system. Installation positions of hooks depend on the vehicle type. If hooks are not installed at specified
positions, the carrier may fall and cause accidents. If the installation instructions appropriate for your vehicle type are not
available, contact our customer service listed below.
Select hooks matching your vehicle by referring to the Fit Guide available at stores or on our website : www.innoracks.com.
If inappropriate hooks are used, the carrier / attachment may fall and cause accidents.
Before driving the vehicle, rock the stays and bars in all directions to ensure that there is no looseness. Retighten any loose
knobs or bolts.
Do not use these hooks for attachments of non-specified types.
The carrier may fall and cause accidents.
Observe the specified loading conditions.
Failure to observe the loading condition may cause the carrier to break or loosen and fall, resulting in accidents.
For INNO dedicated ski & snowboard carriers, read the carrier installation instructions to determine proper
mounting locations.

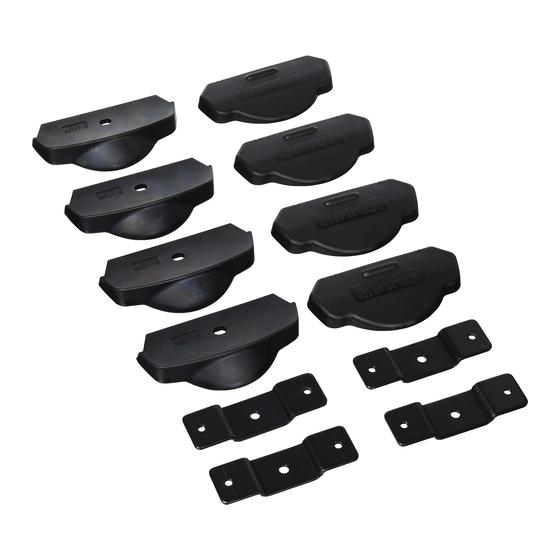

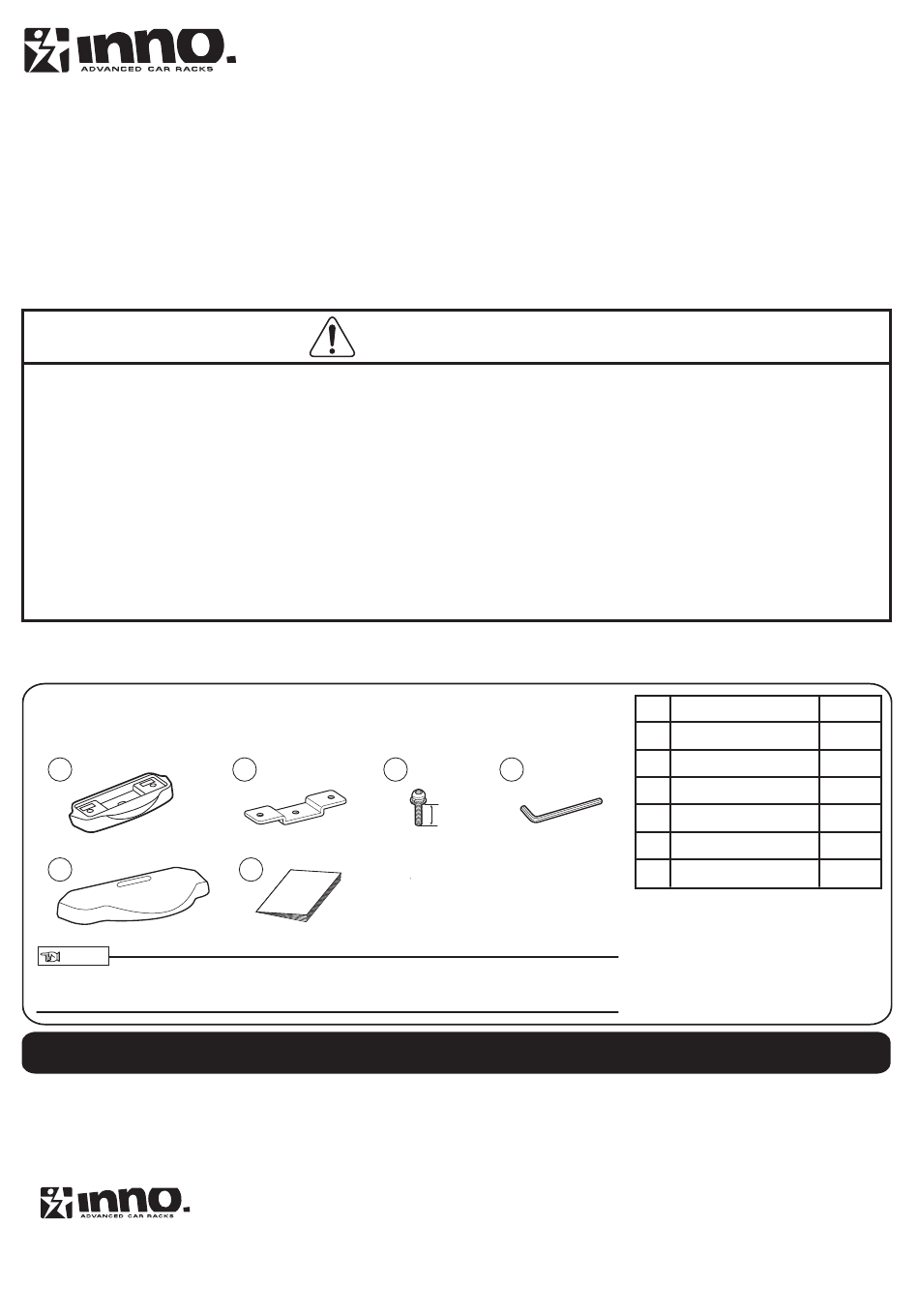

The TR Mounting hooks include the parts listed below. Verify that all of these parts are
included in the carrier system you have purchased. In the event any of these parts are
missing, contact our customer service listed below.
1
5
NOTE
The specifications or external appearance of this product or any of the genuine
spare parts may be changed for improvement without prior notification.
If you have any comments, questions or suggestions, contact our customer service listed below.
Car Mate USA shall not be held liable for any accidents or incidental losses arising from improper installations or usage.
Furthermore, Car Mate USA shall not be held liable for any accidents or incidental losses arising from installation or usage after
the customer has made any modifications to the system's original configuration or specifications.
If you can not find your vehicle on the following page(s), contact us for more information.
Car Mate USA, Inc.
383 Van Ness Ave., Suite 1603,
Torrance, CA 90501 U.S.A.
support@innoracks.com
www.innoracks.com
Installation Instructions
WARNING
2
3
6
Contact Information
TR Fit Hooks
4
23 mm
14539481A-
TR148
No.
Part
①
Cushion base 513
②
Base bracket
③
Bolt [M6x23mm]
④
Hex Wrench [B=4]
⑤
Base Cover
⑥
Installation Instructions
4182809TR1481
EN
Qty
4
4
4
1
4
1
08 / 2014
-EN
-A
Publicité
Table des Matières
Manuels Connexes pour INNO TR148
Sommaire des Matières pour INNO TR148
- Page 1 Observe the specified loading conditions. Failure to observe the loading condition may cause the carrier to break or loosen and fall, resulting in accidents. For INNO dedicated ski & snowboard carriers, read the carrier installation instructions to determine proper mounting locations.
-
Page 2: Vehicle Preparations
TR148 Installation Procedure for the individual Vehicle Model Loading conditions Manufacturer Vehicle model Vehicle type Model year Maximum Load Capacity Bike 140lbs / 64kg MAZDA Mazda 5 2006 – ( Load + Base rack + Attachments ) Vehicle preparations Cleaning the installation area on the vehicle Wipe dirt and oil off the roof and moldings using diluted mild detergent, and then dry the wiped area. - Page 3 Installing System Carrier Place the base unit on the installed ４N・ｍ cushion base/base bracket. Then using the Hex wrench (included), tighten while Hex Wrench alternating between the right and left Bolts[M6X15] bolts (short) [M6x15] (included) 15mm 15mm until the bolts are firmly tightened. Convex Place the base unit in a way that the Base Unit...
-
Page 4: Installation Instructions
Le non-respect des conditions de charge peut faire casser le systéme de transport ou le faire se desserrer puis entraîner sa chute puis un accident. Pour les systèmes de transport spècifiques au snowboard et au ski INNO, lisez les modes d’emploi des systèmes de transport pour déterminer l’emplacement de montage approprié. -
Page 5: Procédure D'installation Tr148 Selon Le Modèle De Véhicule
Procédure d’installation TR148 selon le modèle de véhicule Environnement de chargement Type de Année du Fabricant Modèle du véhicule modèle véhicule Capacité maximale de charge Vélo 140lbs / 64kg MAZDA Mazda 5 2006 – ( Charge + Le porteur de base + remorque ) Préparation du véhicule... -
Page 6: Installation Du Système De Transport
Installation du système de transport Positionnez l'élément de base sur ４N・ｍ l'ensemble base de coussinet / support de base. Puis, en utilisant la clé Clé hexagonale hexagonale (fournie), serrez les Boulon [M6X15] boulons courts [M6x15] (fournis) en 15mm 15mm alternant les boulons du côté droit et Convexe ceux du côté... -
Page 7: Información De Contacto
No respetar las condiciones de carga puede provocar que el portacargas se rompa o se afloje y caiga, lo que causaría un accidente. Para los portacargas exclusivos para esquís y tablas de snowboard de INNO lea los manuales de instrucciones del portacargas para determinar las ubicaciones de montaje correctas. - Page 8 TR148 Installation Procedure for the individual Vehicle Model Condiciones de carga Fabricante Modelo del vehículo Año del modelo Tipo de vehículo Capacidad máxima de carga Bicicleta 140lbs / 64kg MAZDA Mazda 5 2006 – ( Carga + Perchas de la base + Dispositivo de montaje )
- Page 9 Instalación del sistema de portacargas Coloque la unidad de la base en la base ４N・ｍ del amortiguador / abrazadera de la Clé base que se han instalado. Luego, hexagonale con la llave hexagonal (incluida), Boulon [M6X15] sujétela ajustando de forma alternada 15mm 15mm los pernos derecho e izquierdo...
