ring RSC601 Manuel D'instructions page 4

SmartCharge
3

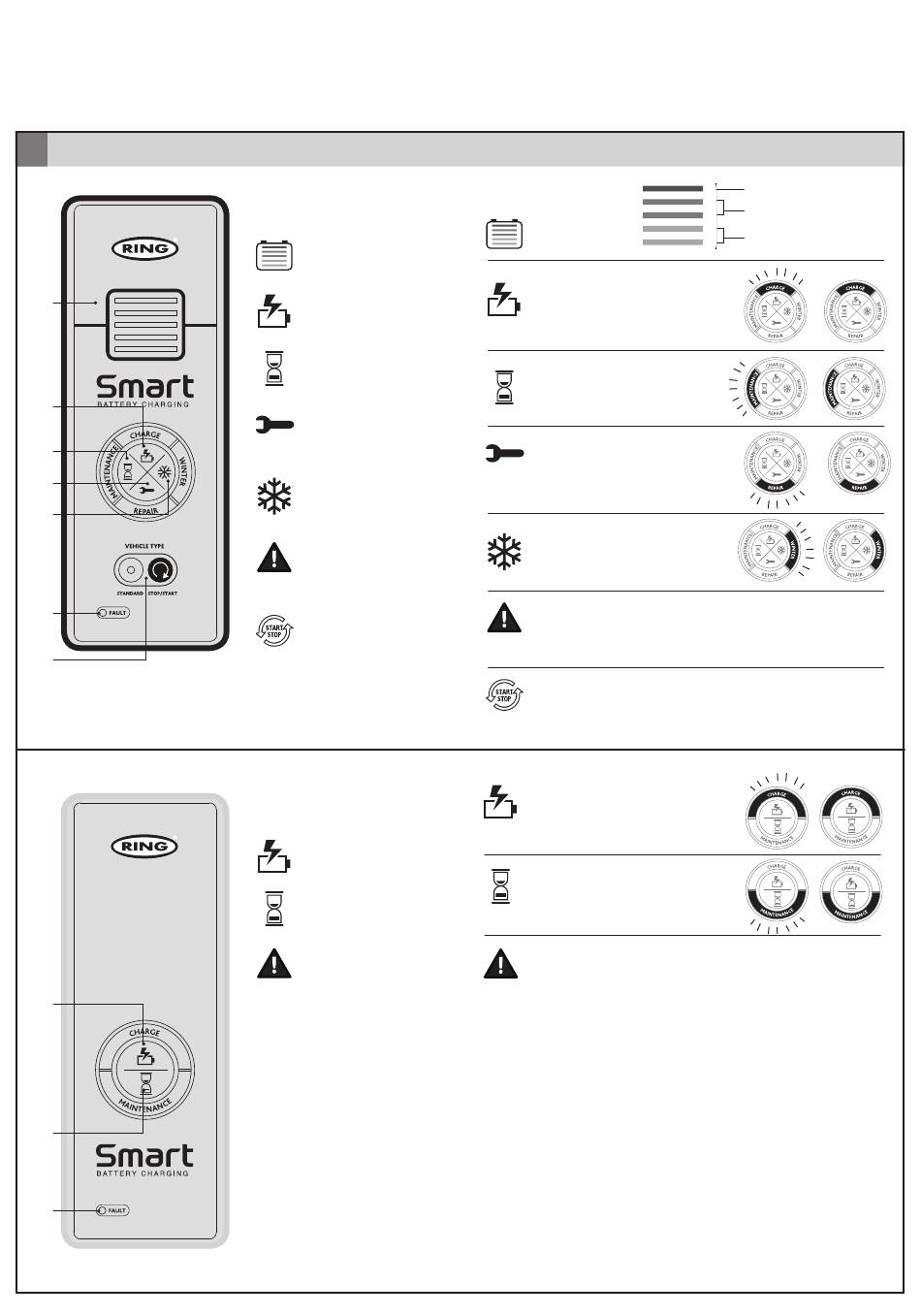

Features
1
2
3
4
5
6
7
1
2
3
RSC605/RESC605
1 Charge stage
Indicator
2 Battery
charging mode
3 Maintenance
charging mode
4 Battery
reconditioning
(repair) mode
5 Winter
charging mode
6 Polarity check/
battery fault
indicator
7 Vehicle type
select – Standard
or START/STOP
RSC604/RESC604
1 Battery
charging mode
2 Maintenance
charging mode
3 Incorrect
polarity/
battery fault
indicator
= Charge Stage
1
= Charging mode 5A (Max)
2
Green Flashing = Charging
Green Solid = Charged
= Maintenance mode 0.8A (Max)
3
Green Flashing = Charging
Green Solid = Charged
= Battery Recondition (repair) mode
4
Green Flashing = Charging
Green Solid = Charged
= Winter mode 14.6v (Max)
Green Flashing = Charging
5
Green Solid = Charged
= • Incorrect Battery Connection
6
• Over temperature
• Input voltage >17v
= Standard or Start/Stop vehicle type select
7
Standard – 14.4v
Start/Stop – 14.6v
= Charging mode 4A (Max)
1
Green Flashing = Charging
Green Solid = Charged
= Maintenance mode 0.8A
2
Green Flashing = Charging
Green Solid = Charged
= • Incorrect Battery Connection
3
• Over temperature
4
Float stage (Green)
Absorption Stage (Amber)
Bulk Stage (Red)
