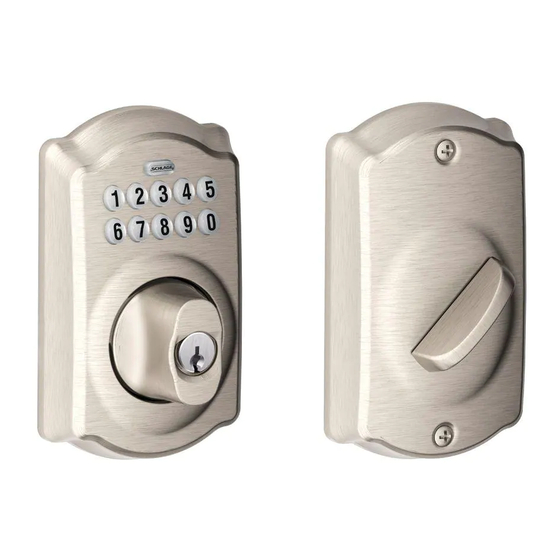

Schlage Deadbolt BE365 Instructions De Montage
Schlage Deadbolt BE365 Instructions De Montage

Schlage Deadbolt BE365 Instructions De Montage

Masquer les pouces Voir aussi pour Deadbolt BE365:

Publicité

Liens rapides

*23780000*
23780000
Model BE365
Tools Needed
Optional
• Phillips screwdriver
• Tape Measure
• Flathead Screwdriver
• Pencil
• Wood Block
• Hammer
Additional Parts
Optional Bolt
Faceplate
Key
Prepare for Installation
IMPORTANT NOTES
DO NOT use a power drill for installation!
Use a screwdriver to remove product from packaging.
Install and test lock with door open to avoid being locked out.
Pay special attention to step 1. If lock is installed with
the cam in the wrong position, the lock will not function
properly!
A
Check door dimensions.
See consumer.schlage.com/Service-Support for door preparation
instructions if dimensions are different.
2³⁄₄" (70 mm)
OR
2³⁄₈" (60 mm)
Door Edge
Keypad Deadbolt
Baseplate
Keypad
Bolt
2¹⁄₈" (53 mm)
Hole
5¹⁄₂" (140 mm)
Minimum
Baseplate
Screws (2)
Strike
Reinforcement
Screws (2)
Latch/Strike
Screws (4)
B
Adjust bolt length, if necessary.
Measure the dimension shown. If the measurement is 2C\v" (70 mm),
extend the bolt.
2³⁄₈" (60 mm)
No adjustment needed.
Installation Instructions
Cover
Screws (2)
Cover
Reinforcement
Plate
2³⁄₄" (70 mm)
OR
Rotate faceplate 180° to extend.
Not Extended
Extended
