INSTALLATION MANUAL
PROMI1000PC
One door double technology controller (Proximity and Digicode

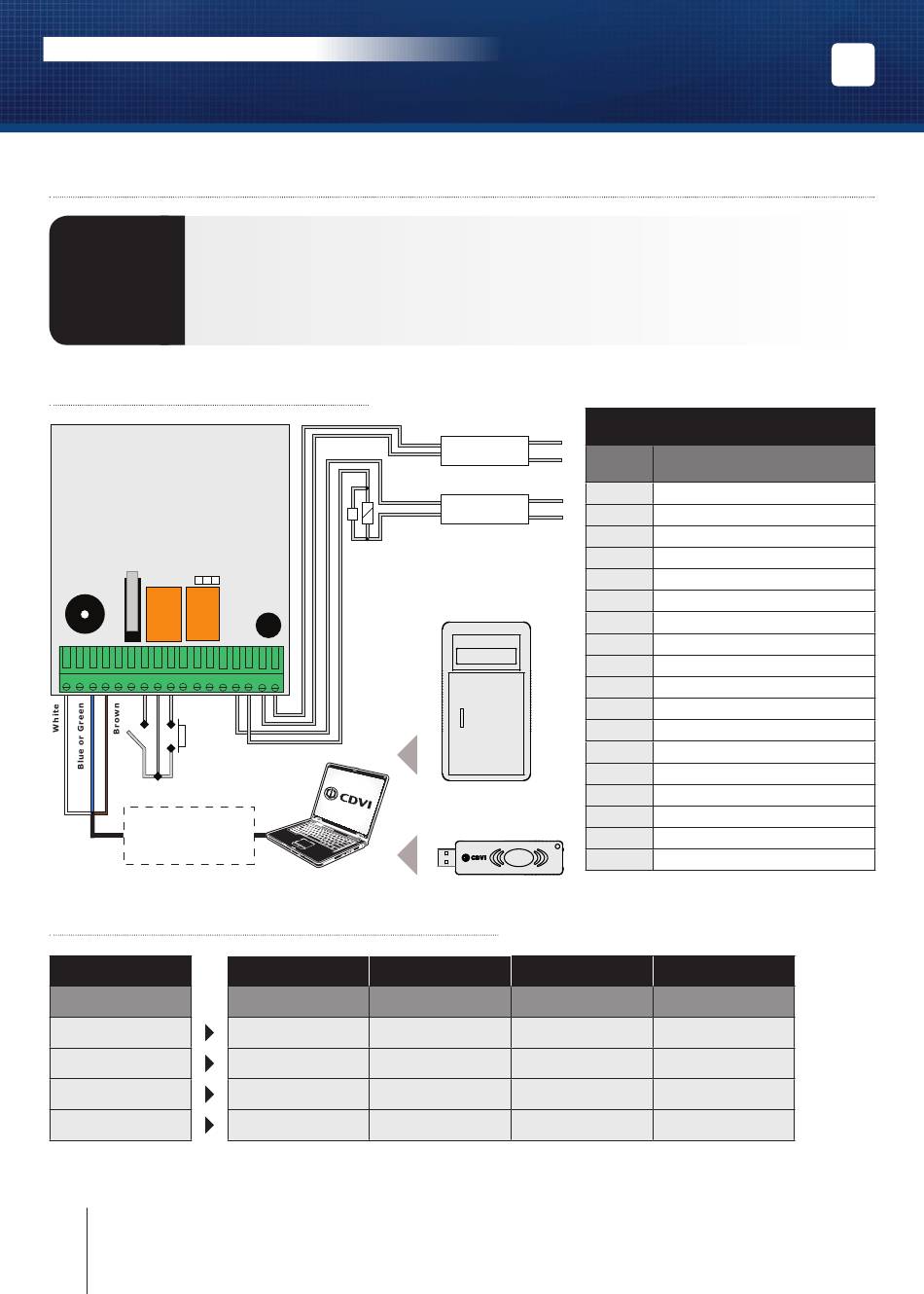

3] WIRING DIAGRAMS

- Do not forget to mount the varistor on the lock.
- The PROMI1000PC and the remote reader must be at least 60cm apart.
- If two PROMI1000PC are used, they must be 60cm apart and 50m max.
IMPORTANT
- Additional power supply for readers.
- Recommended cables : 1 or 2 pairs of cables (4 strand) SYT1 8/10ths (Shielded
3.1] WIRING THE PROMI1000PC
PROMI1000PC
ST1
321
RL2 RL1
TX DT M RX 2 1 E M B 3 5 A R C T 12 V
Push
button
RS232 serial port
or
CONV232USB
3.2] WIRING THE PROMI1000PC TO READERS
PROMI1000PC
TERMINAL BLOCK
5
3
M
1
cdvi.com
6
cdvigroup.com
cables - AWG 20).
V
Strike
USB
DGLPFN - DGLIF
TERMINAL BLOCK TERMINAL BLOCK TERMINAL BLOCK TERMINAL BLOCK
5
3
4
1
Input voltage
12Vac/dc
Input voltage
12Vac/dc
CMPP
R125USB
DGLP60
DTRR1434
5
3
3
4
IN -
1
6
)
®
PROMI1000PC
Terminal
Detail
block
12
Input voltage 12V ac/dc
V
Input voltage 12V ac/dc
T
Door Relay N/O contact
C
Door relay common
R
Door Relay N/C contact
A
Alarm relay N/O contact
5
Auxiliary reader red light
3
Auxiliary reader green light
B
Request-to-exit input
M
REX and door contact common
E
Door contact
1
Data remote reader
2
Buzzer remote reader
RX
RS232 RX
M
Common RS232
DT
DTR signal (Not used)
TX
RS232 transmission
V
Varistor
GALEOW
Grey
Blue
EN
