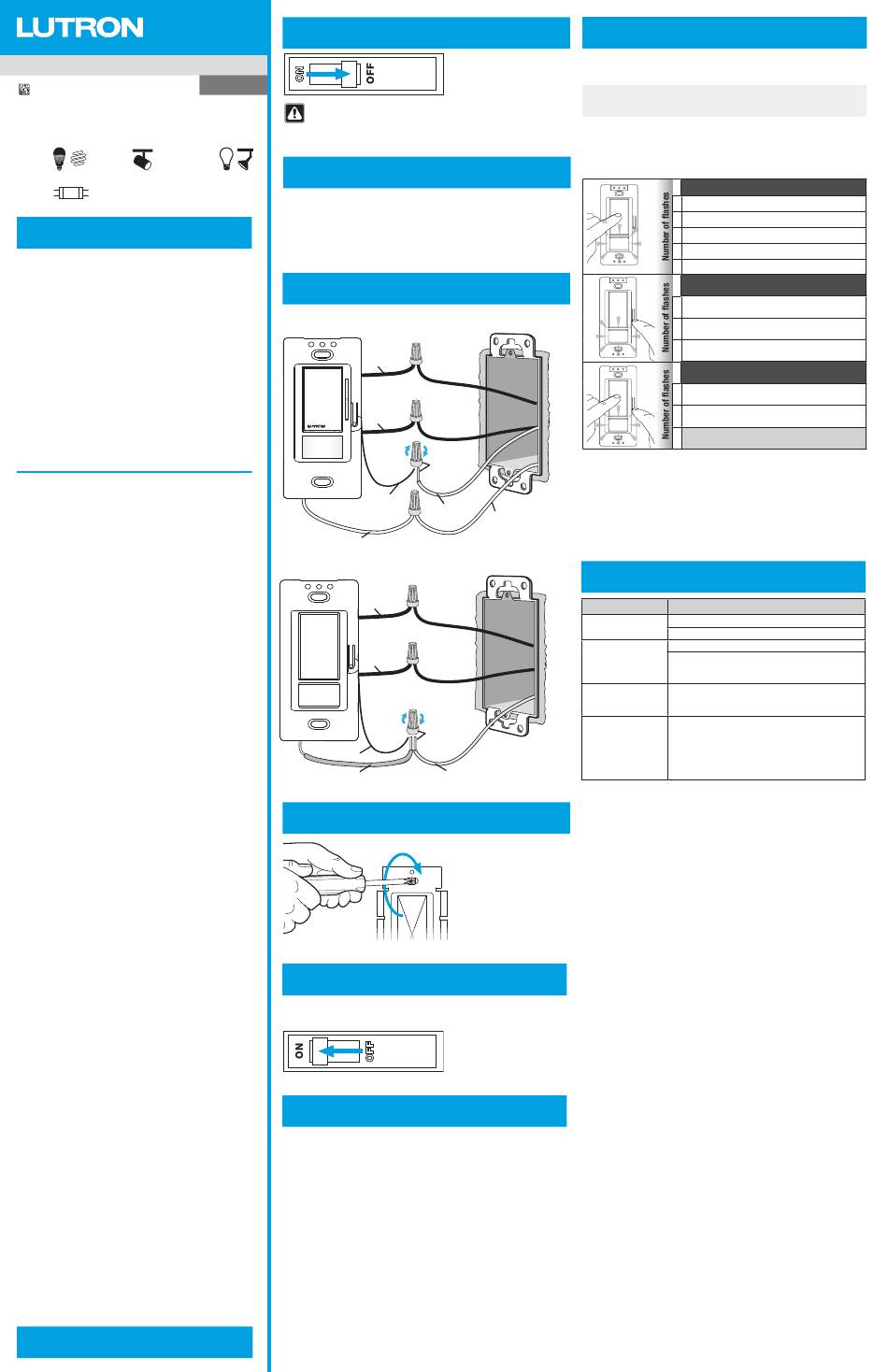

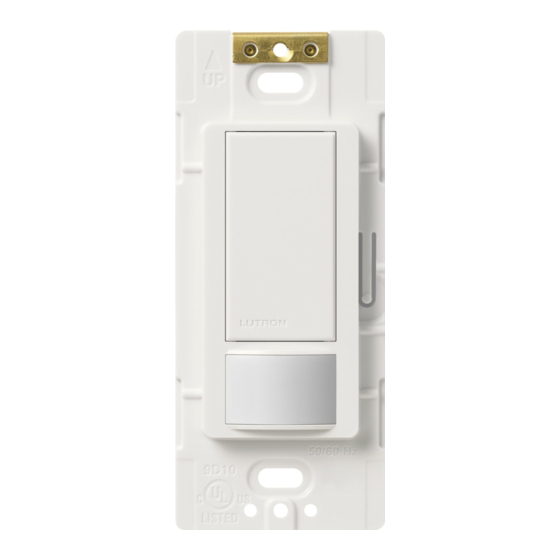

Occupancy Sensing Switch
P/N 0301885 REV B
Please read before installing.
MS-OPS2, MS-VPS2
120 V~ 50 / 60 Hz
CFL
150 W
200 W
250 W
LFCA
LED / CFL
MLV
Inc. / Hal. / ELV
AFC
2 A
Ballast | Balastro | Ballast
Ballast
Help
Use our mobile friendly self-paced
installation tool:
www.lutron.com/wiringwizard
Find more product information:
www.lutron.com/support
- Videos
- Frequently Asked Questions
- Online Chat (8 am – 5 pm EST)
Call us:
U.S.A. | Canada | Caribbean
1.844.LUTRON1 (588.7661) (24/7)
Mexico
+1.888.235.2910
Others
+1.610.282.3800
IMPORTANT
1. CAUTION: To reduce the risk of overheating and possible
damage to other equipment, DO NOT use to control
receptacles or motor loads.
2. CAUTION: For control of permanently installed LED, CFL,
MLV, incandescent, halogen, ELV or electronic ballast
lamp fixtures.
3. Install in accordance with all national and local electrical
codes.
4. A ground connection is required for product to function.
Connect green-sleeved wire to ground only in retrofit and
replacement applications. When neutral connection is
available, remove green sleeve and connect to neutral. If
neither wire is present, consult a licensed electrician.
5. The sensor switch requires an unobstructed view of
room occupants to detect motion.
6. Hot objects or moving air currents can affect the
performance of the sensor switch.
7. For indoor use only. Operate between 32 °F and 104 °F
(0 °C and 40 °C).
8. Clean with a soft damp cloth only. DO NOT use any
chemical cleaners.
9. Once power has been restored, the sensor switch can
be manually turned on or off within the first 30 seconds
but will not automatically control the load for the first
2 minutes.
10. DO NOT exceed twenty (20) devices on a single branch
circuit.
11. DO NOT use with fan loads.
12. Device makes an audible click when turning on/off.
This is normal functionality.
Limited Warranty:
http://www.lutron.com/TechnicalDocumentLibrary/Sensor_Warranty.pdf
Lutron and Maestro are trademarks of Lutron Electronics Co., Inc., registered in the
U.S. and other countries.
©2013–2019 Lutron Electronics Co., Inc.
www.lutron.com/support
1
Turn power OFF at circuit breaker
English
English
WARNING: SHOCK HAZARD.
May result in serious injury or death. Turn off power at circuit
breaker or fuse before installing.
2
Ensure a ground connection is present
INC / HAL
Look for a bare copper wire or green wire (ground), and a white wire
(neutral) coming out of the wall. When a neutral connection is available,
remove the green sleeve and connect the white wire to neutral. Connect
the bare and green-sleeved wire from the device to ground (only in
retrofit and replacement applications). If neither wire is present, consult
an electrician. This device will not function if it is not grounded.
3
Remove existing device and connect sensor switch
A. When neutral is present in outlet box: remove green sleeve, connect
white wire to neutral.
Black
Black
Bare wire
White wire
B. If no neutral is present, connect green-sleeved wire to ground.
Black
Black
Bare wire
Green-sleeved
wire
4
Mount the switch using the provided screws
5
Turn power ON at circuit breaker
Once power has been restored, the sensor switch will not automatically
control the load for the first 2 minutes.
6
Installation is complete!
Leave wallplate off if custom settings are desired.
See step 7; default settings shown in bold.
7
Remove wallplate and select your preferred settings from the table below
before proceeding; default settings shown in bold.
For an explanation of these custom settings, see
www.lutron.com/TechnicalDocumentLibrary/048461.pdf
A) Press and hold the button(s) indicated in the pictures below.
B) The lens will flash once at each setting (always starts at setting 1).
C) The setting is saved after the button is released.
D) Attach wallplate when complete.
Insert and
1
" Timeout" is the delay until the lights go off after the room is vacated. if you manually
twist to
tighten
2
Short (less than 15-second) timeout for testing sensor coverage. After entering, device
will exit test mode automatically after 5 minutes, or when any button
Ground wire
is pressed.
(bare or green)
Neutral wire(s)
3
Lights turn on only if natural light in room is low. If switch turns on when there is
REQUIRED
enough natural light, or if switch does not turn on when there is not enough natural
light, press the large button within 5 seconds of entering the room. Over time, this
interaction will "teach" the switch your preferred setting.
Troubleshooting
Symptom
Lights do not turn on
(or off)
Lights do not turn
on when space is
occupied
Lights turn on in
vacancy mode
Insert and
Lights turn on only if
twist to
natural light in room
tighten
is low
Ground wire
(bare or green)
REQUIRED
For additional Troubleshooting, please visit www.lutron.com/support
Custom settings (optional)
Timeout
1
1 Test Mode
2
2 1 minute
3 5 minutes
4 15 minutes
5 30 minutes
Sensor Mode (MS-OPS only)
Auto-On and Auto-Off
1
(Occupancy mode)
Manual-On and Auto-Off
2
(Vacancy mode)
3 Auto-On daylight sensing
Advanced Settings
1 Motion sensitivity low
2 Motion sensitivity high
3 Return all settings to default
turn the light off and re-enter before the timeout, the lights will not automatically turn
on until the timeout period is complete.
Solution
See Important Note #4.
Call our 24/7 support line at 1.844.LUTRON1.
Ensure sensor is not set to vacancy mode.
Sensor may be set to "Auto-on daylight sensing"
(ALD), which will not turn on the lights if there is light
in the room.
There is a 15 second grace period following a timeout
where a sensor will turn the lights back on if it senses
motion.
If switch turns on when there is enough natural
light, or if the switch does not turn on when there
is not enough natural light, press the large button
within 5 seconds of entering the room. Over time,
this interaction will "teach" the switch your preferred
setting.
and Auto-Off
3
