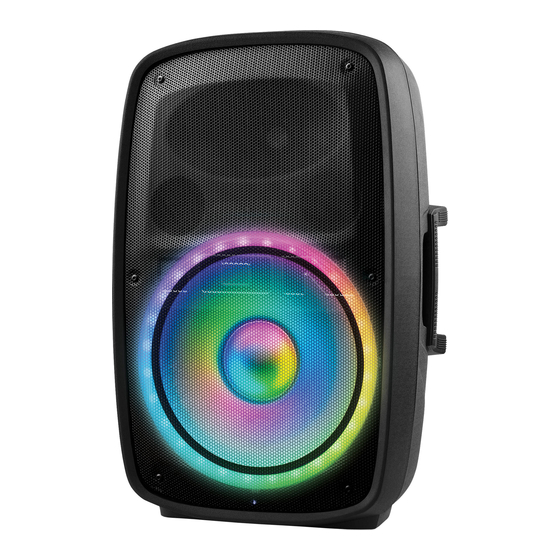

ION Total PA Glow 3 Guide D'utilisation

Total PA Glow 3 Quickstart Guide (English)
Box Contents
Total PA Glow 3 Power Cable (IEC)
Microphone & Cable Quickstart Guide/Safety & Warranty Information
Telescoping Speaker Stand
Features
1. Media Panel:
2 3
4
1
11 12 13 14
15
16
6 6 9
17
2. USB Port
5 5
7
18
3. SD Card Slot
5 5 8
10
4. Display
5. Mic Inputs (1/4", XLR) 18. Light Mode
6. Mic Input Volume
7. Aux Input (1/8")
8. XLR Input
Pairing a Bluetooth Device
1. Turn on your Bluetooth device.
2. Power on Total PA Glow 3.
3. Use the Mode button to select Bluetooth as the audio source, which appears as
"bt" in the display. Total PA Glow 3 will automatically go into pairing mode to
search for Bluetooth devices. You will know you are in pairing mode when the
Bluetooth icon is flashing. In addition, automatic voice prompts from the speaker
will alert you of the device's status: Bluetooth Pairing, Bluetooth Connected, or
Bluetooth Disconnected.
4. Navigate to your Bluetooth device's setup screen, find Total PA Glow 3, and
connect. The Bluetooth icon will remain solidly lit.
Note: Users should consider updating their device's OS if experiencing trouble
with pairing or playing music.
5. To disconnect pairing, turn off Bluetooth on your device or select Forget this
device on your Bluetooth device's setup screen.
If you would like to disable (or enable) the voice prompts, press and hold the
Play/Pause button on the Media Panel.
Note: Bluetooth must be selected as the audio source in order to disable (or enable)
the voice prompts.
App Control
IMPORTANT: To ensure the best possible experience with the app, use the most
current Android OS or iOS on your device.
Note: Ensure that your device has internet access via your service provider or wireless
connection. You can also download the app on your computer, but remember to
connect and sync your device to transfer the app.
Follow these steps to download the free app on your device:
1. Open the Apple App Store or Google Play on your device.
2. Search for the ION Sound XP app.
3. Follow the on-screen instructions to download and install the app.
4. Once downloaded, the ION Sound XP app will appear on your device's home
screen.
Speaker Stand Installation
1. Fully extend the speaker stand tripod legs on a flat, stable surface. Look in the
box contents under the foam sheet for the rubber feet and speaker stand
mounting knob.
2. Raise the mounting pole up to the appropriate height needed and tighten the side
adjustment knob.
3. Insert the pin into the bottom pin-hole so the mounting pole stays at your set
height.
4. On Total PA Glow 3, adjust the bottom knob counter-clockwise so the screw is
not blocking the opening.
5. Line up the Total PA Glow 3 mounting hole with the speaker stand pole and place
on the pole.
6. Tighten the mounting knob clockwise on Total PA Glow 3.
9. Aux Input Volume
Mode 10. Mix Out (XLR)
11. Mic Echo
Play/Pause
12. Low EQ
Repeat
13. High EQ
Previous/Back
14. Master Volume
Next/Forward
15. Power LED
16. Clip LED
17. Link
19. Power Cable Input
20. Fuse Holder
21. Power Switch
Support
Thank you for purchasing the Total PA Glow 3. At ION, your entertainment is as
important to us as it is to you. That's why we design our products with one thing in
mind—to make your life more fun and more convenient.
IMPORTANT: For the full User Guide, visit ionaudio.com.
For the latest information about this product (documentation, technical specifications,
system requirements, compatibility information, etc.) and product registration, visit
ionaudio.com.
For additional product support, visit ionaudio.com/support.
Caution: Do not expose Total PA Glow 3 to rain or standing water.
Linking Two Speakers
To wirelessly link two Total PA Glow 3 speakers:
Power on both speakers using their Power Switches.
1.
With no Bluetooth connected, press the Link button on one Total PA Glow 3 to
2.
enter Stereo Link Mode. Then, press the Link button on a second Total PA Glow
3 to begin pairing.
Wait up to 1 minute for the speakers to make the connection. Once the two
3.
speakers are linked, press the Mode button on either speaker to select
Bluetooth mode and begin the Bluetooth pairing process. The speaker you use
for Bluetooth pairing will serve as the master speaker. Use the directions
to connect your Bluetooth device.
To disconnect, double-press the Link button on either speaker.
4.
To switch the left and right stereo channels while the speakers are linked, press and
hold the Link button.
To link two Total PA Glow 3 speakers using cables:
1. With the Power Switch on each speaker turned to the off position, connect each
speaker to a power outlet.
2. Plug an XLR cable into the Mix Out located on the rear panel of one Total PA
Glow 3 speaker. This speaker (the master) is the one to which you will connect
audio sources such as a Bluetooth device, microphone, or USB flash drive.
3. Plug the other end of the XLR cable into the XLR Input on the rear panel of your
second Total PA Glow 3 speaker. This second speaker will receive the audio from
any devices connected to the first speaker (the master).
4. Power on both speakers using their Power Switches.
5. Connect your audio sources to the first speaker (the master).
6. Make sure that each speaker's Master Volume control is set to the same
position.
7. With one of your audio sources playing, gradually turn up the Aux Input Volume
on the second Total PA Glow 3 speaker until the volume of this speaker matches
the volume of the first speaker (the master).
Technical Specifications
Output Power: 500 W (peak)
Frequency Response: 55 Hz – 20 kHz
(+3 dB)
Drivers:
Low-Frequency: 15.0" / 381 mm woofer
High-Frequency: 1.0" / 25 mm tweeter
Crossover: 2.2 kHz
Bluetooth:
Profile: A2DP
Module: Bluetooth 4.2
Range: Up to 100 ft. (30.5 m) *
* Bluetooth range is affected by
walls, obstructions, and movement.
For optimal performance, place the
product in the center of the room so it
is unobstructed by walls, furniture, etc.
Trademarks & Licenses
ION Audio is a trademark of inMusic Brands, Inc., registered in the U.S. and other
countries. App Store is a trademark of Apple Inc., registered in the U.S. and other
countries. Android and Google Play are registered trademarks of Google Inc. The
Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of
such marks by ION Audio is under license. All other product names, company names,
trademarks, or trade names are those of their respective owners.
Manual Version 1.3
above
USB Charging Port: +5 V, 1 A
USB/SD:
Supported File System: FAT32
Supported File Types: MP3, WAV,
WMV, FLAC, APE
Max. File Size: < 16 GB
Max. Device Capacity: < 16 GB
Power:
Connection: IEC
Input Voltage: 100–120 VAC, or 220–
240 VAC; 50/60 Hz
Dimensions (DxWxH): 17.5" x 14" x 27" /
445 x 356 x 686 mm
Weight: 36.24 lbs. / 16.44 kg
