Safety and operating instructions
L = Air consumption (litre/s).
(May be found in our sales literature).
D = Number of drops per min (1 drop = 15 mm
L* 0.2 = D
this applies to the use of long work cycle air line tools. A single point lubri-
cator type Atlas Copco Dosol can also be used for tools with short running
cycles.
Information about Dosol settings may be found under Air Line Accessories
in our main catalogue.
Lubrication-free models:
• In the case of lubrication-free tools it is up to the customer to decide on the
peripheral equipment to be used. However, it is no disadvantage if the com-
pressed air contains a small quantity of oil e.g. supplied from a fog lubrica-
tor (DIM) or Dosol system. This does not apply to turbine tools, which
should be kept oil free.

Compressed air connection

• The machine is designed for a working pressure of 6–7 bar = 600–700 kPa =
87–102 psi.
• Blow out the hose before connecting.

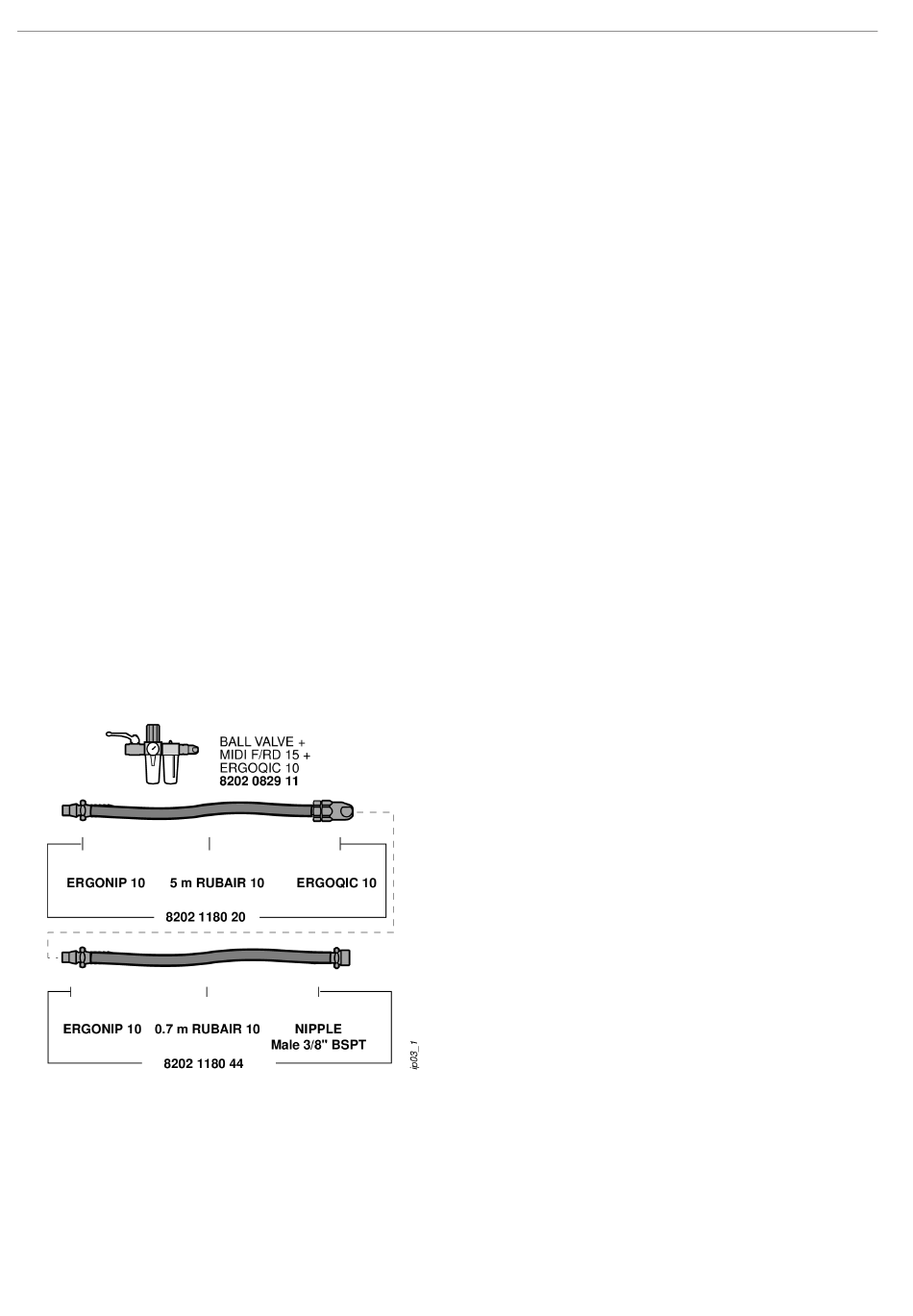

Installation proposal
Choosing the correct couplings, hose and clamps can be a troublesome digging
into details. To save your time and to ensure correct capacity of the airline in-
stallation, from the tapping point to the tool, we offer you an installation pro-
posal.
For more information please read, Atlas Copco Industrial Power Tools cata-
logue Ordering No. 9837 3000 01.
8
EN
3
)
