30" Model : NA30R5310F*
NOTE
Install the grates as instructed below for longest life. When installed properly, the
openings in the grates are centered over the burners.
The two cooktop grates are designed to fit in specific positions on the cooktop.
For maximum stability, these grates should only be used in their proper positions.
• Place the grate with filled-in section on the right side to the left side, and the
grate with filled-in section on the left side to the right side.
• Each grates must be installed with the filled-in section, marked 'BACK', oriented
towards the back of the cooktop.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 21

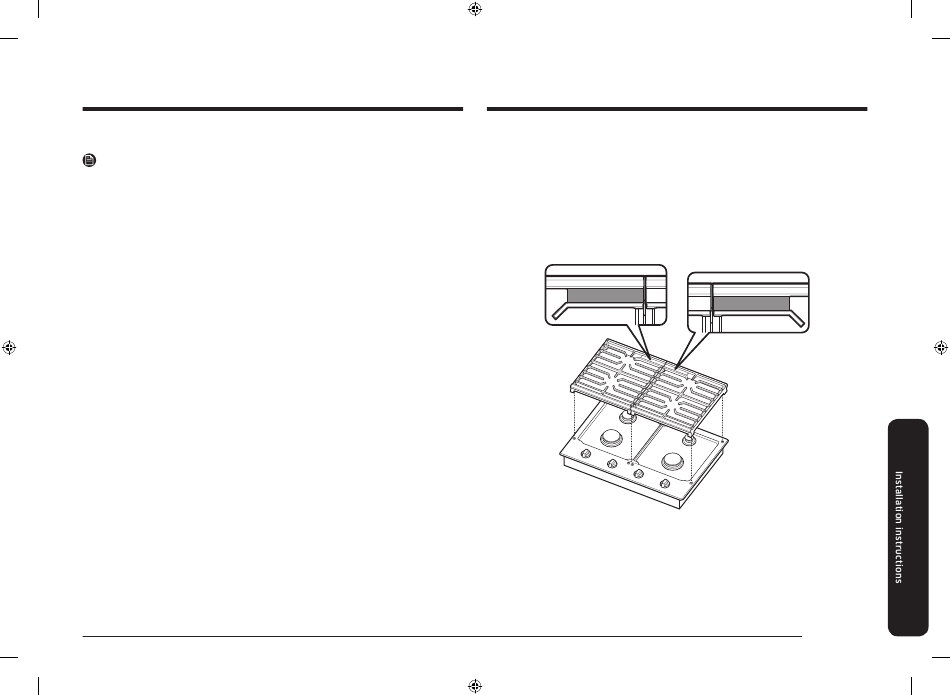

To replace the grates correctly, follow these steps:
1. Orient the center grate as noted direction.
2. Gently lower the legs of the Left grate so that leg dimples can match embosses
on cooktop.
3. Locate filled-in section of right grate to face back side of the cooktop.
4. Gently lower the legs of right grate into the corresponding embosses without
interfering with left grate overhang.
Filled-in section of
left grate
Filled-in section of
right grate
English 21
