LaserLiner HandyLaser Mode D'emploi page 8

1
10
9
6

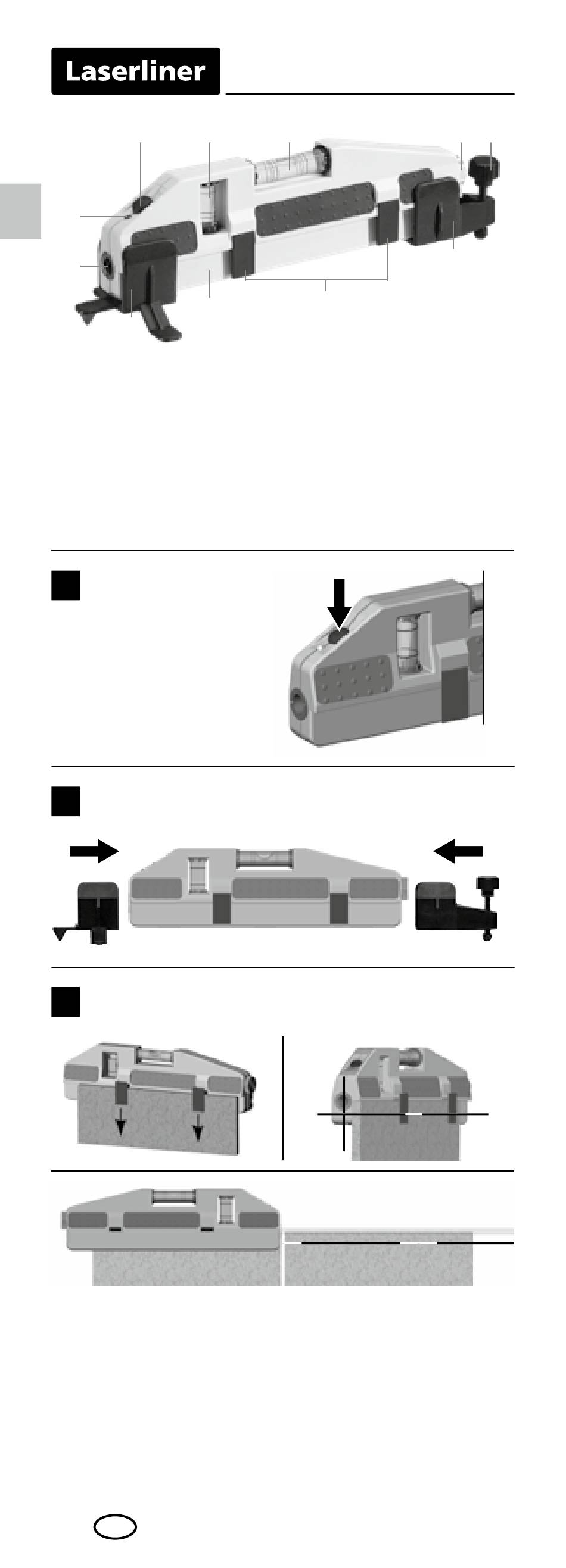

1 ON/OFF switch
2 Vertical vial
3 Horizontal vial
4 Battery compartment
5 Levelling foot
adjustment
2
ON/OFF
3
Attaching adjustable legs
4 To fit wall tiles
To fit wall tiles, the device is attached to the first
tile by means of the spring-clamp holder that
is pushed out with the pins at the rear. The laser
beam that runs parallel to the horizontal spirit
level is directed along the edge of the tile. This
makes it possible to precisely align the tile with
the bubble level.
08
EN
2 3
8
6 Levelling foot
7 Spring-clamp holder
8 Magnets (bottom)
9 Laser output
10 LED laser indicator
