make sharp angles.
•
Use the original packaging if the device is to be transported.
3. General Guidelines
Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
4. Features
All rope lights and led rope lights:
•
come with 2 power cables (RLOPC), 2 inline connectors (RLIC), and 2 end caps (RLEC)
•
can be cut each 100 cm
5. Overview

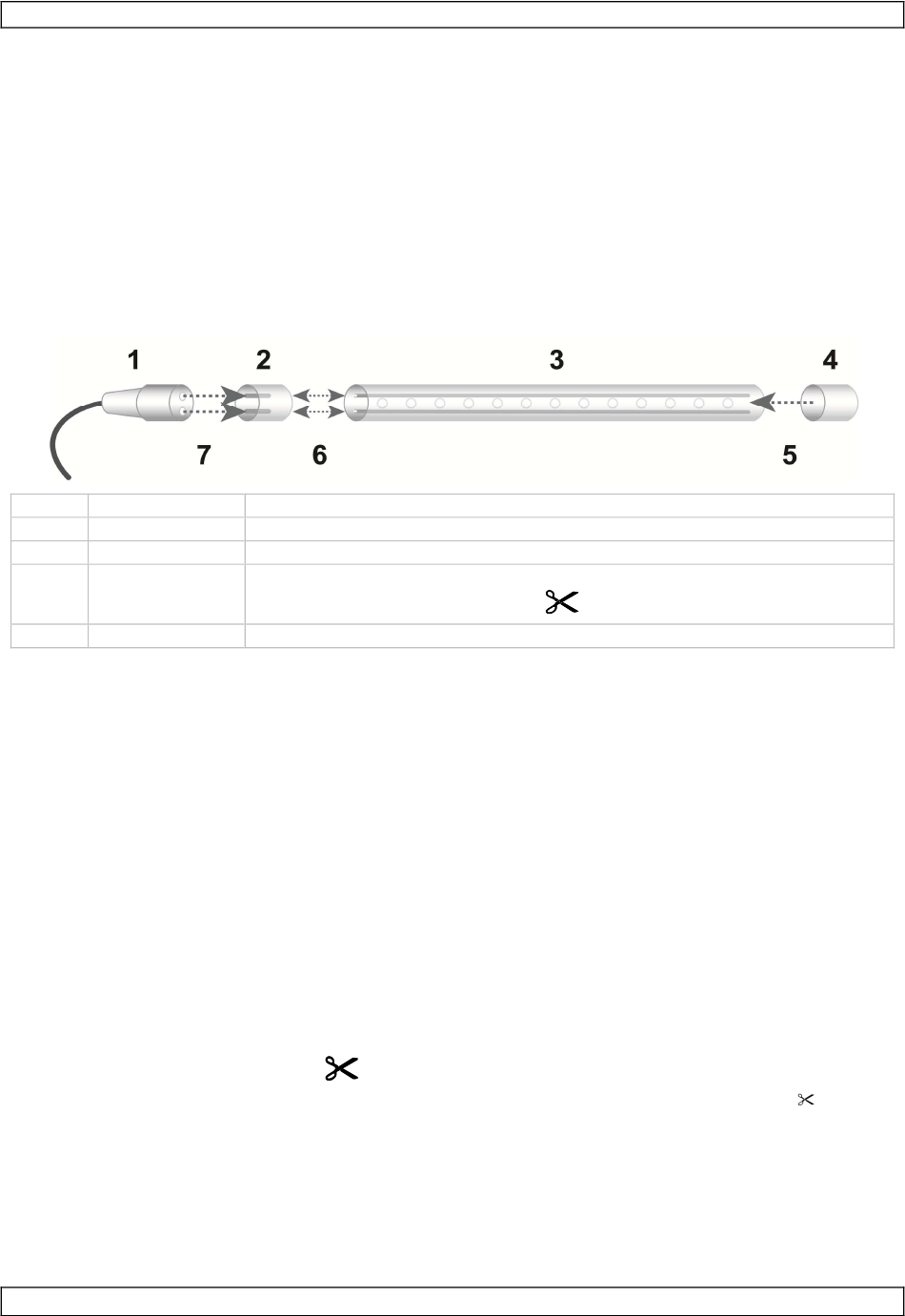

Refer to the illustrations on page 2 of this manual.
Part
1 Power cord
2 Power connector
3 Rope light
4 End cap
6. Initial test
Always refer to the safety instructions above.
Before installing or using the rope light, test the rope light and keep it plugged in to warm up the plastic.
This makes it more pliable when installing.
7. Assembling rope lights
Switch off the mains power before you continue.
Connecting the power connector
1. Firmly push the sharp prongs of the power connector into the rope light. Make sure the prongs are
pushed in all the way and make contact with the tube light leads.
2. Apply the special glue (see section Specifications below for product code) to the assembly.
Apply glue only on the plastic parts – not on the conductive parts.
3. Push the power connector firmly into the connector sleeve.
4. If the rope light works correctly, you can proceed with shaping.
Cutting rope lights
1. Make sure the mains power is switched off.
2. Cut the wires only at the marks
3. The rope light can be cut at specific intervals. These are indicated with following symbol:
4. Use a sharp cutter and make a clean straight cut.
Assembling with connectors and
See section Technical Specifications below for product codes.
1. Make sure the mains power is switched off.
2. Use connectors (in-line, L, T or X-shaped) to connect the rope light sections.
3. Always check that the pins are correctly inserted into the fitting.
V. 05 – 10/01/2013
Function
Connects the power cord to the rope light
Inner wires run the length of the rope light; can be cut at certain intervals
(cut marks are indicated on sheath
Protects the exposed ends of the rope light.
.
)
3 ©Velleman nv
