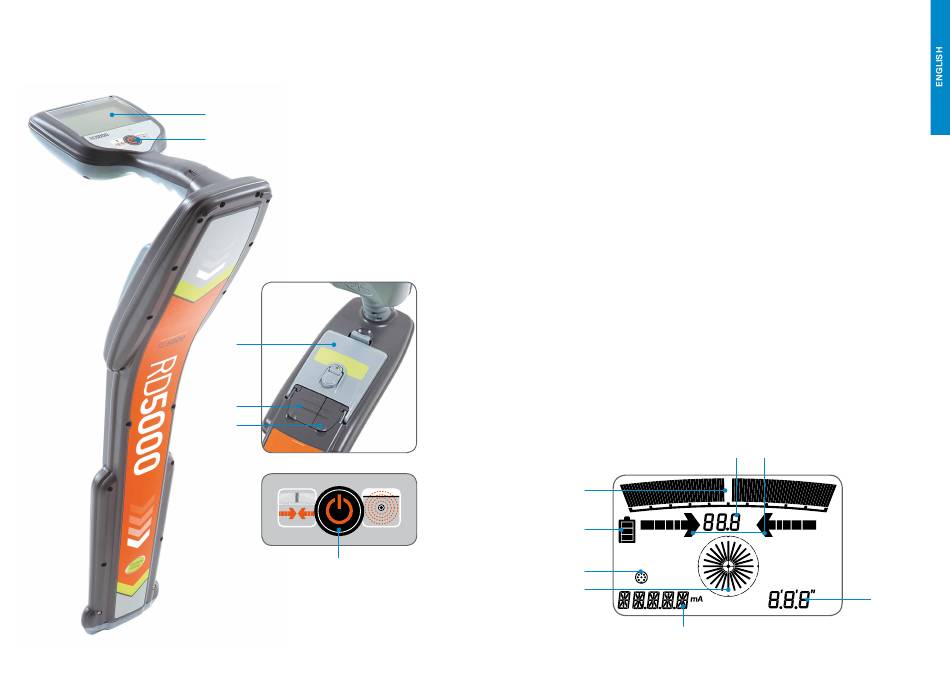

Locator features
1.
LCD.
2. Keypad.
3. Battery compartment (USB connector inside)
Note: The RD5000 is supplied with a rechargeable battery pack. It is
possible to use alkaline or NiMh batteries by purchasing the optional battery
compartment from Radiodetection.
4. Accessory socket.
5. Headphone jack.
Locator keypad
6. Power key: Switches the unit on and off. Toggles between Guidance Mode
and Signal Strength Mode.
Locator display icons
7.
Target position indicator: Indicates position of locator relative to target line.
8. Signal strength: Numerical indication of signal strength.
9. (Proportional) Left/Right arrows: Indicates the location of the target relative
to the locator.
10. Battery icon: Indicates the battery level.
11. Accessory indicator: Indicates when an accessory is connected.
12. Compass: Displays the direction of the cable or pipe relative to the locator.
13. Depth: Indication of depth reading.
14. Current: Indication of signal current reading.
7
10
11
12
14
8
9
13
