INTENDED USE

Intended use in the operating media refers to the level gauge type FSA-E.
Operating media
• Fuel oil
• Bio fuel oil
• Diesel fuel
• FAME
• Vegetable oil
• Waste oil
• Other water-hazardous, non-flammable liquids
• Rainwater
• Urea solution
You will find a list of operating media with descriptions, the relevant
standards and the country in which they are used in the Internet at
www.gok-online.de/de/downloads/technische-dokumentation.
Other operating media upon request.
Place of operation
• not suitable for outdoor use

FUNCTION DESCRIPTION

The content of the tank is determined by measuring the level on the basis of the float
principle. With an electronic interface, the measurement from the FSA-E is sent via a
connection cable to the SmartBox
output value and shown on the display.

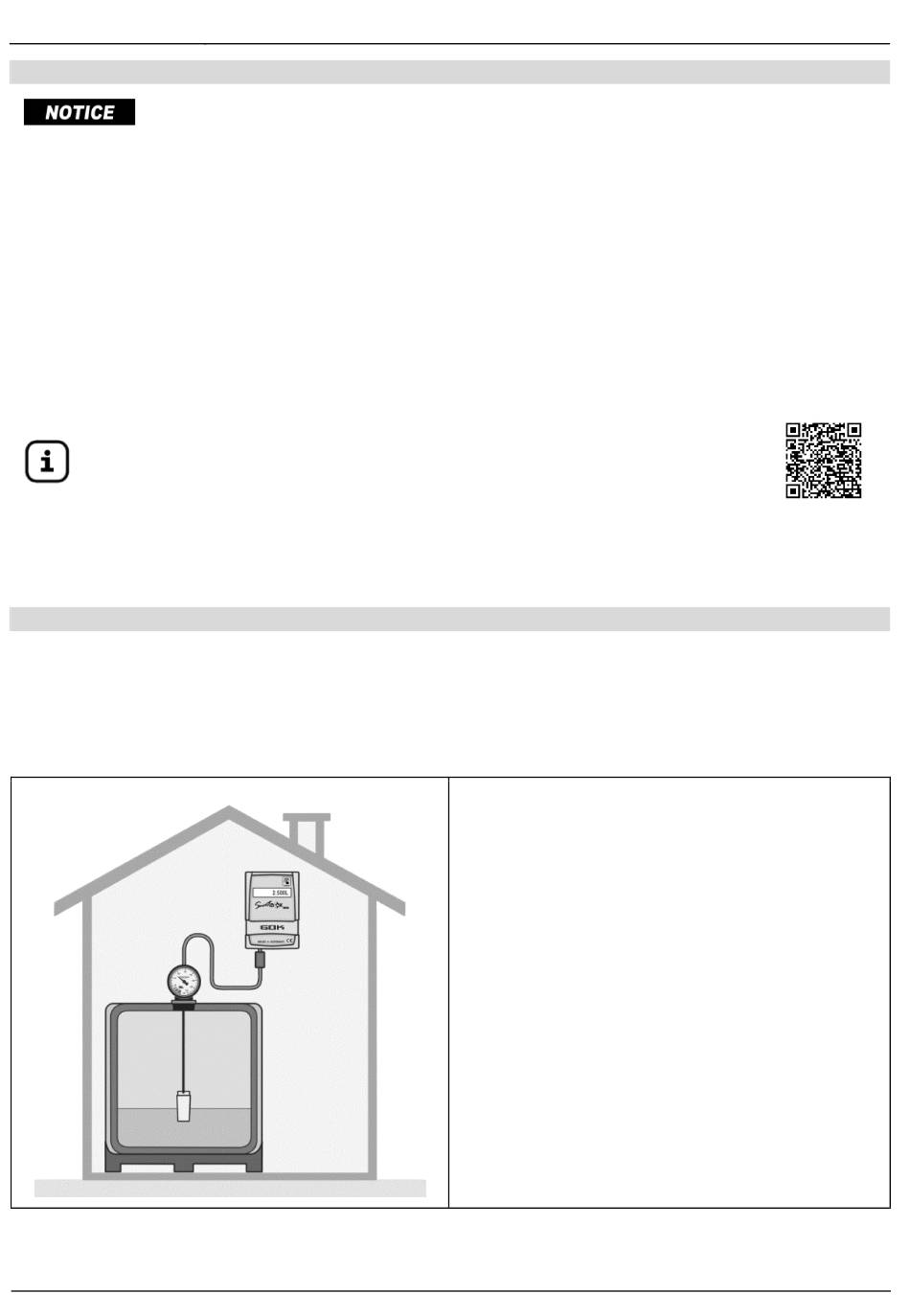

Installation example - standard installation of SmartBox
16 / 36
®
MINI digital display unit, where it is converted into the set
The FSA-E with electronic interface is set to
the maximum permitted level and is installed
in an existing G 1 1/2 tank connection
opening.
The FSA-E with electronic interface is
connected to the digital display unit with a 10
m cable or a suitable extension cable up to a
distance of 50 metres (see cable extension
option).
SmartBox
®
MINI
®
MINI
