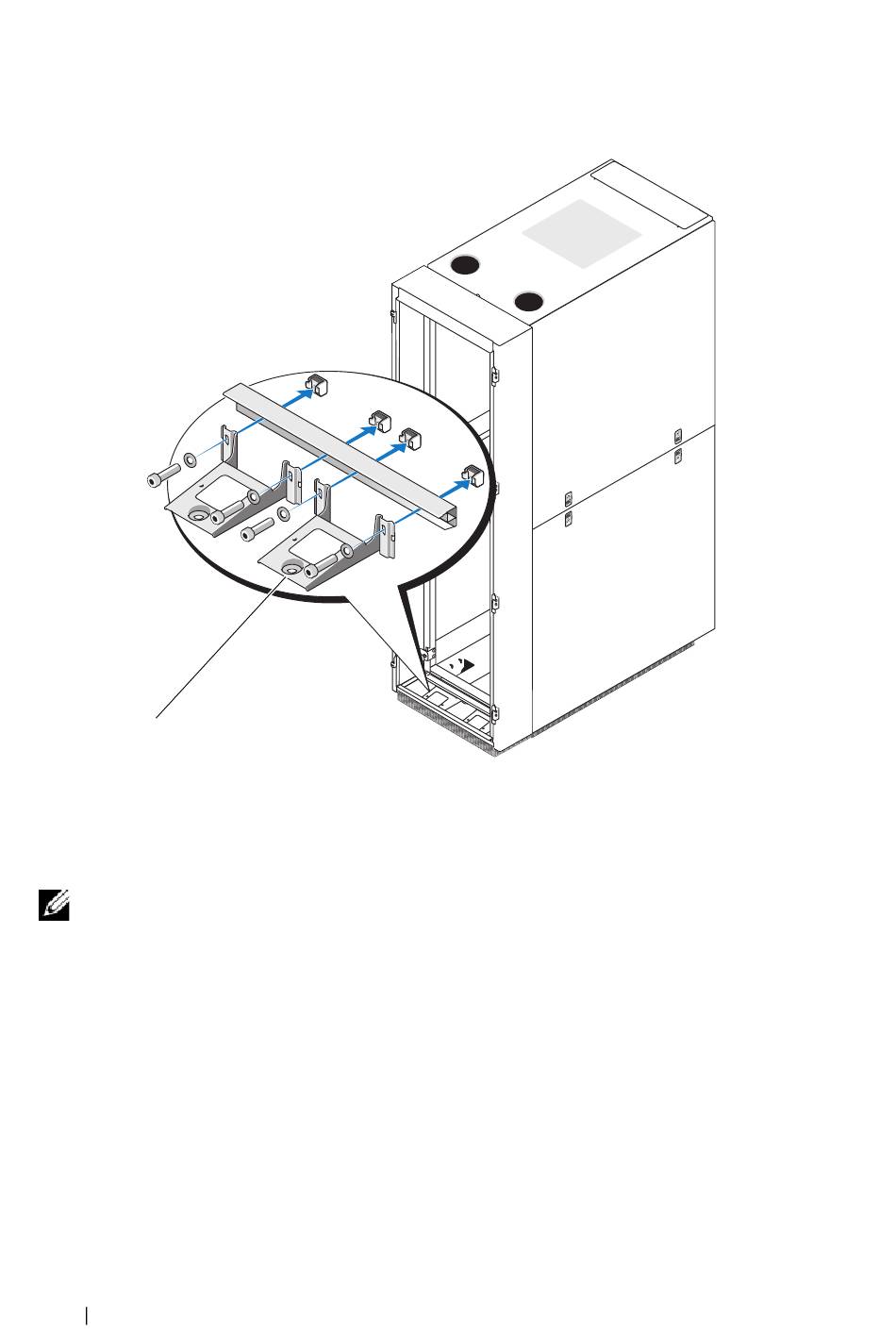

Figure 17. Installing the Front Stabilizer Feet
1
1 front stabilizer feet (2)
Installing the Side Stabilizer Feet
NOTE:
Ensure that all brushes are installed to maintain cooling efficiency.
1 Remove the lower side panels. See "Removing the Lower Side Panels" on
page 14.
2 On the side of the rack frame's bottom rail, locate the four bolts that
attach the side brushes to the rack. See Figure 18.
3 Using a 6 mm Allen wrench, remove the washers and bolts for only
one stabilizer.
4 Position a stabilizer foot against the brush bracket with the holes aligned,
and then install the washers and bolts.
5 Repeat step 3 and step 4 to install the second stabilizer foot on the same
side.
