8 Rotate the handle.
Open the handle and ensure that the two screws are accessible.
a
Mark the linkage position relative to the inside door trim using a piece
b
of tape or a marking device. See Figure 15.
Using a T20 Torx screwdriver, remove the two screws that secure the
c
handle. See Figure 15.
Rotate the handle. See Figure 15.
d

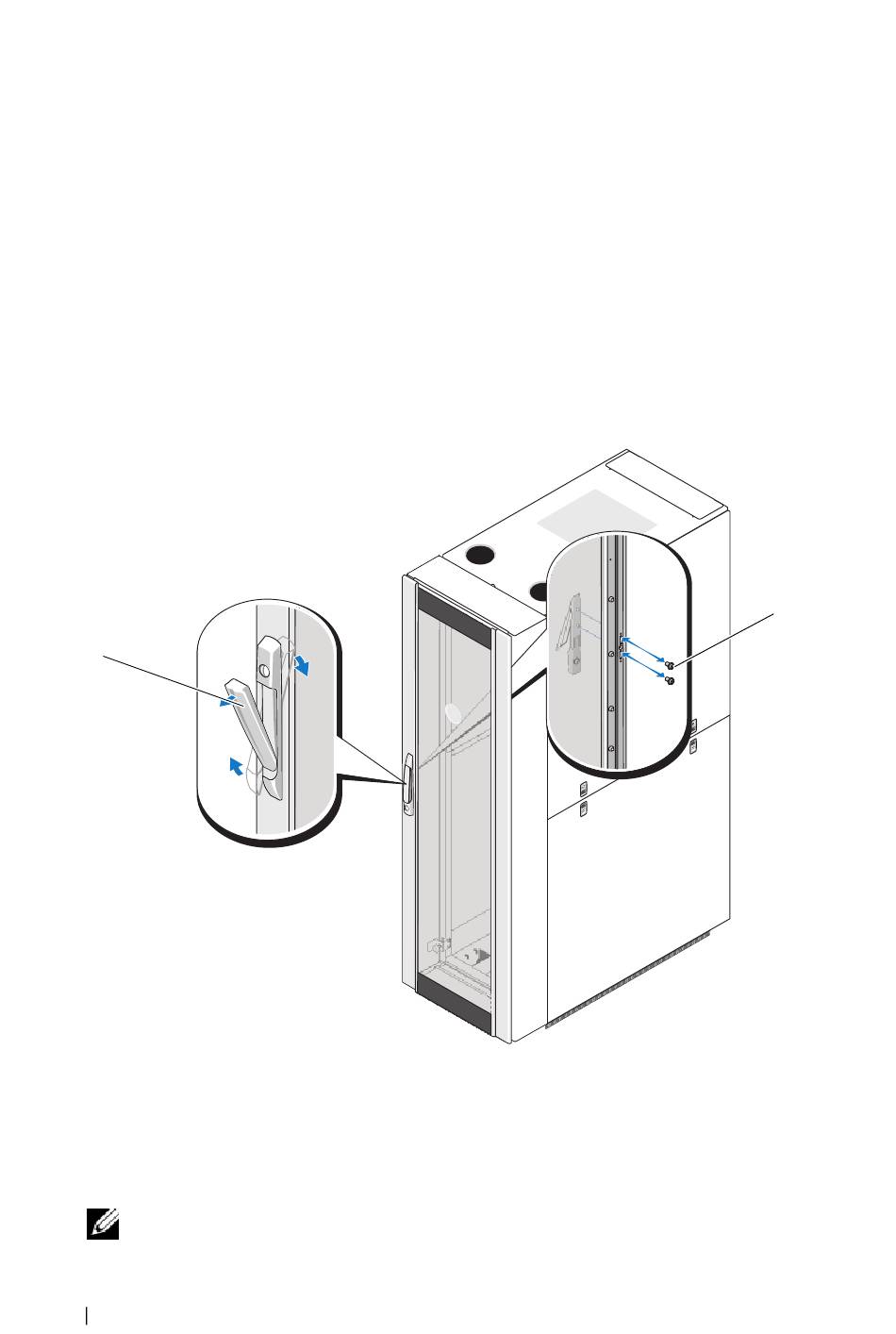

Figure 15. Rotating the Front Door Handle
1
1 handle
With the handle in the open position and linkage marks aligned, align
e
the handle holes and install the screws. See Figure 15.
NOTE:
28
Installation Guide
If a piece of tape was used to mark the linkages, remove the tape.
2 screws (2)
2
