ADULT INSTALLATION REQUIRED.
TOOLS REQUIRED:
Level (A)
Measuring tape (B)
Power drill with 3/16" masonry bit (C)
Power screwdriver with bull nose phillips bit (D)
Truss head spanner bit (E)
•
READ ALL INSTRUCTIONS BEFORE ASSEMBLY OF DIAPER CHANGING STATION.
•
Unpack carton and identify all parts.
•
This changer has six (6) recess mounting holes.
•
The diaper changing station is no stronger than the anchors or walls to which they are attached and, therefore,
MUST be firmly secured in order to support the weight they are intended to support. Contact an architect or building
contractor if any questions.
Parts Description
Hardware for recessed installation:
3" x 1/4" Wood Screws
3/4" Finishing Washer
Door / Wall Plate
3" x 1/4" Wood Screws
21-3/8"
542 mm
WWW.RESTROOMDIRECT.COM

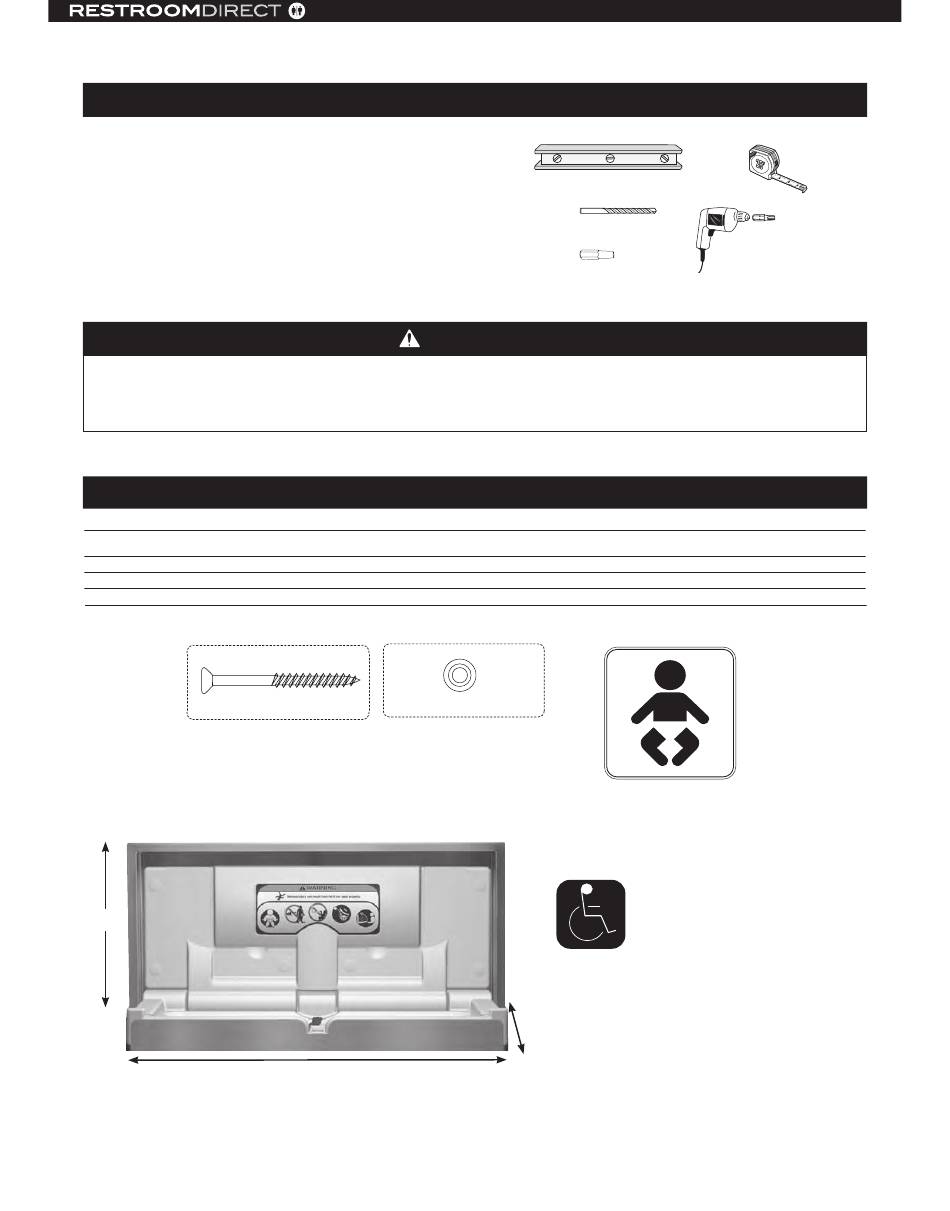

INSTALLATION INSTRUCTIONS
WARNING
PARTS LIST
3/4" Finishing Washer
34-3/4"
(883 mm)
(Door)
704 • 937• 2673
129 Oakpark Dr., Unit A, Mooresville, NC 28115
A
C
E
Door / wall plate to be
mounted on outside of
restroom door.
A.D.A. Compliance:
306.3 Knee Clearance
307.2 Maximum Protruding Objects
308.2 Forward Reach
308.3 Side Reach
309.4 Operation
902.3 Work Surface
Compliant when properly installed.
13-1/8"
(333 mm)
1
B
D
Quantity
6
6
1
