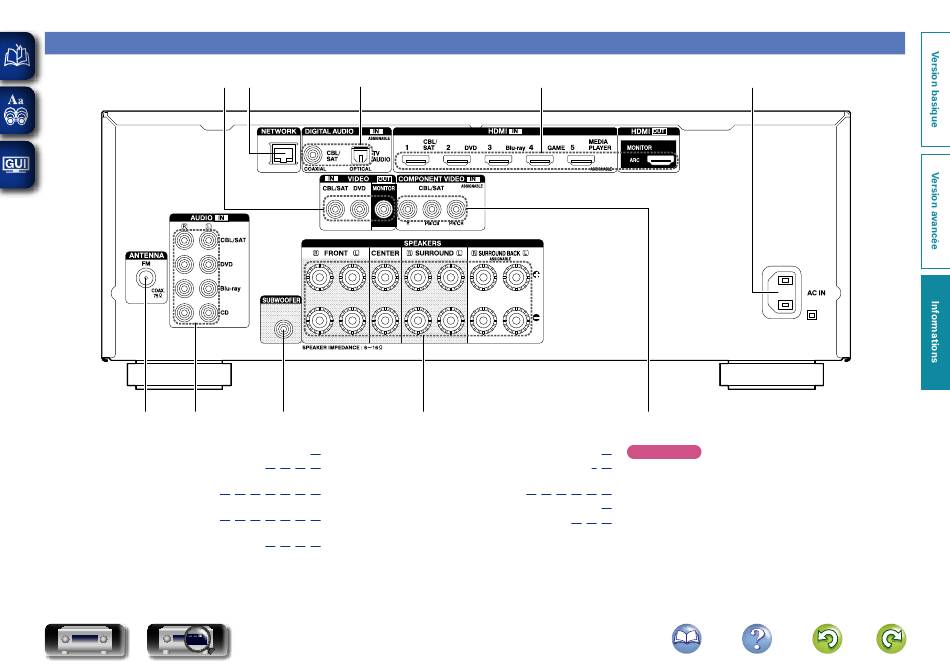

Panneau arrière
Voir la page indiquée entre parenthèses ( ).
Q0
q w
q
Borne d'antenne FM (ANTENNA) ·········································· (20)
w
Bornes audio analogique (AUDIO) ······················· (14, 15, 16, 19)
e
Borne Subwoofer
(SUBWOOFER) ····································· (78, 79, 80, 81, 82, 83, 84)
r
Bornes d'enceintes
(SPEAKERS) ········································· (78, 79, 80, 81, 82, 83, 84)
t
Bornes vidéo composantes
(COMPONENT VIDEO) ·········································· (14, 15, 16, 17)
DVD
o i
e r
y
Prise CA (AC IN) ······································································· (22)
u
Bornes HDMI ········································································ (9, 10)
i
Bornes audio numérique
(DIGITAL AUDIO) ······································· (13, 14, 15, 16, 17, 19)
o
Borne réseau (NETWORK) ······················································ (21)
Q0
Bornes vidéo (VIDEO) ················································· (13, 14, 15)
u
t
REMARQUE
Ne touchez pas les broches internes des connecteurs sur le panneau
arrière. Une éventuelle décharge électrique pourrait endommager de
façon permanente votre appareil.
