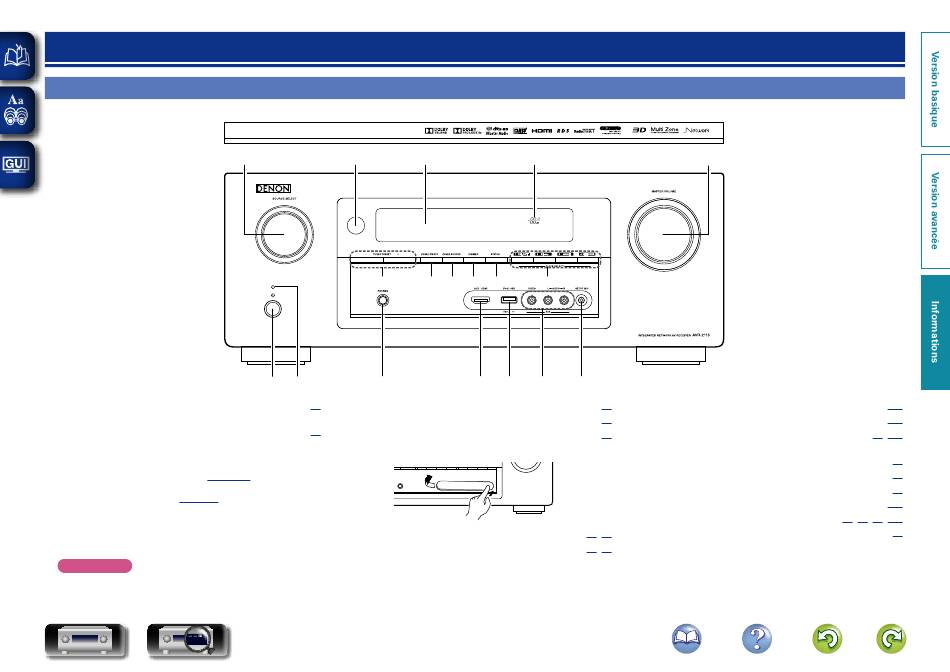

Nomenclature et fonctions

Panneau avant

Pour les touches qui ne sont pas décrites ici, lire la page indiquée entre parenthèses ( ).
q
Touche d'alimentation (X) ····················································· (30)
Permet de mettre cet appareil sous tension et hors tension (veille).
w
Témoin d'alimentation ··························································· (30)
GStatut du témoin d'alimentationH
• Sous tension: Vert
• Veille normale: Arrêt
• Lorsque "HDMI Contrôle" (vpage
"Marche": Rouge
• Lorsque "Contrôle IP" (vpage 119) est réglé sur "Toujours
actif": Rouge
e
Prise de casque audio (PHONES)
Si un casque est branché sur cette prise, le signal audio n'est plus
transmis par les enceintes connectées.
REMARQUE
Afin d'éviter toute perte auditive, ne pas augmenter excessivement
le niveau du volume lors de l'utilisation du casque.
DVD
Q2 Q1
Q3
q w e
r
Borne AUX-HDMI ···································································· (10)
t
Port iPod/USB ········································································· (18)
y
Bornes AUX INPUT ································································· (17)
Retirez le cache qui recouvre les connecteurs lorsque vous voulez
les utiliser.
106) est réglé sur
u
Prise SETUP MIC ······························································· (25, 85)
i
Molette MASTER VOLUME ·············································· (31, 92)
o
Témoin de volume principal
Q0 o
Q4 Q5 Q6 Q7 Q8
r t y u
129
i
Q0
Affichage ················································································ (130)
Q1
Capteur de télécommande ··················································· (133)
Q2
Molette SOURCE SELECT ··············································· (30, 148)
Q3
Touches des canaux préréglés du tuner
(TUNER PRESET CH +, –) ························································ (42)
Q4
Touche ZONE2 ON/OFF ·························································· (92)
Q5
Touche ZONE2 SOURCE ························································· (92)
Q6
Touche DIMMER ···································································· (124)
Q7
Touche STATUS ·················································· (33, 50, 54, 124)
Q8
Touches QUICK SELECT ························································· (89)
