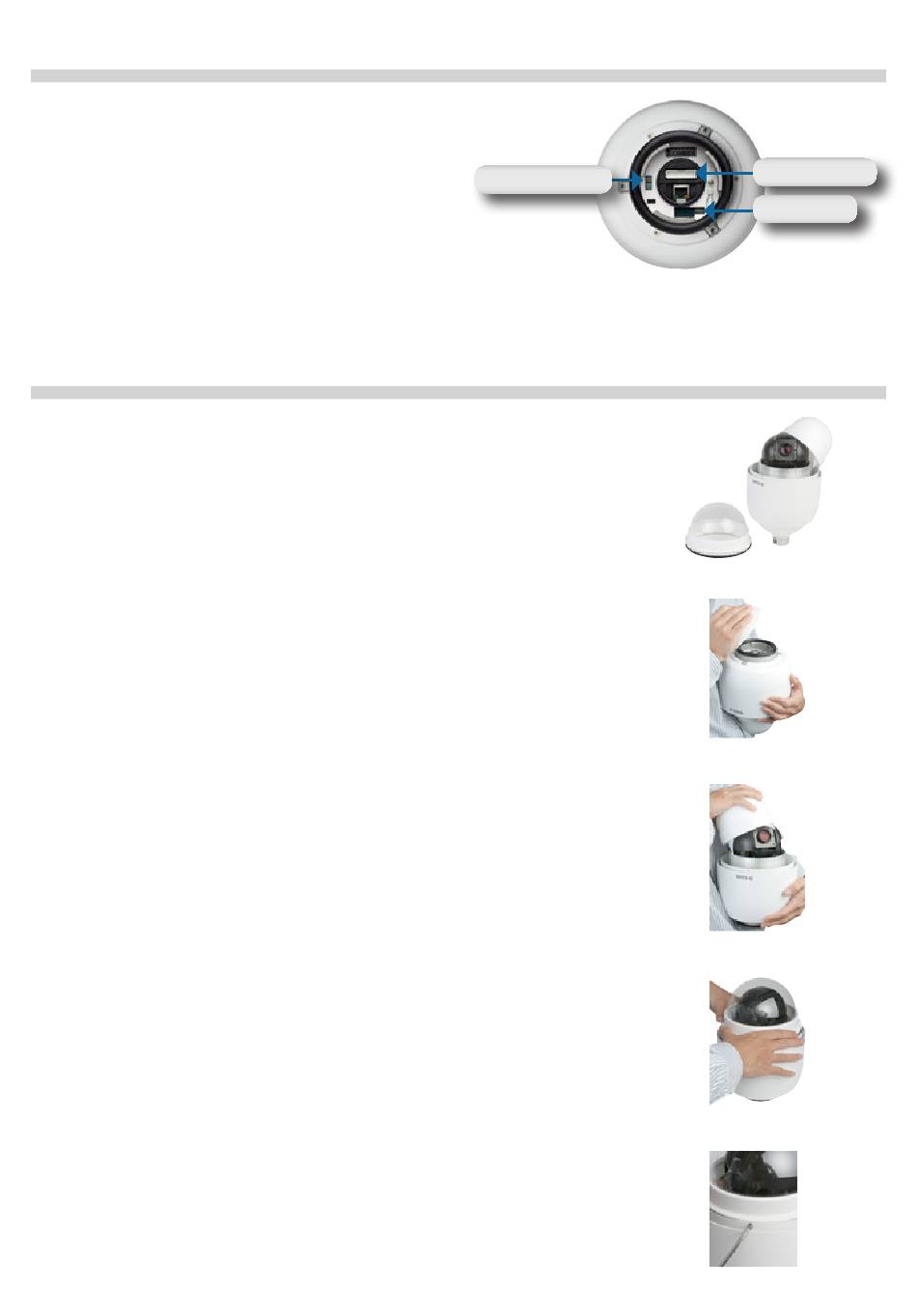

Hardware Overview
Reset Button:The button can be used to
reset the system or restore the factory default
settings. To reset, simply press and hold the
button for 5 seconds.
Data Socket:This 22 pin socket accepts the
power/data cable.
PIN Block:Pin 5 can be used to perform a
mechanical reset.

Hardware Installation

STEP 1
Unpack the DCS-6815/6817/6818 and remove the dome camera
unit.
STEP 2
Rotate the cap and remove it from the camera body.
STEP 3
Remove the protective cover and PE sheet.
STEP 4
Apply some lubricant on the cover's waterproof seal to make
the installation process smoother. Attach the optical cover to the
camera body.
The small protrusions on the cover must align with the four holes
on the camera body.
STEP 5
Gently press down the dome cover with two hands on the side of it.
Warning: DO NOT press down on the optical cover. This might
cause damage to the camera.
STEP 6
Screw the dome cover and body together.
Reset Button
Connections Panel
3
Data Socket
Pin Block
