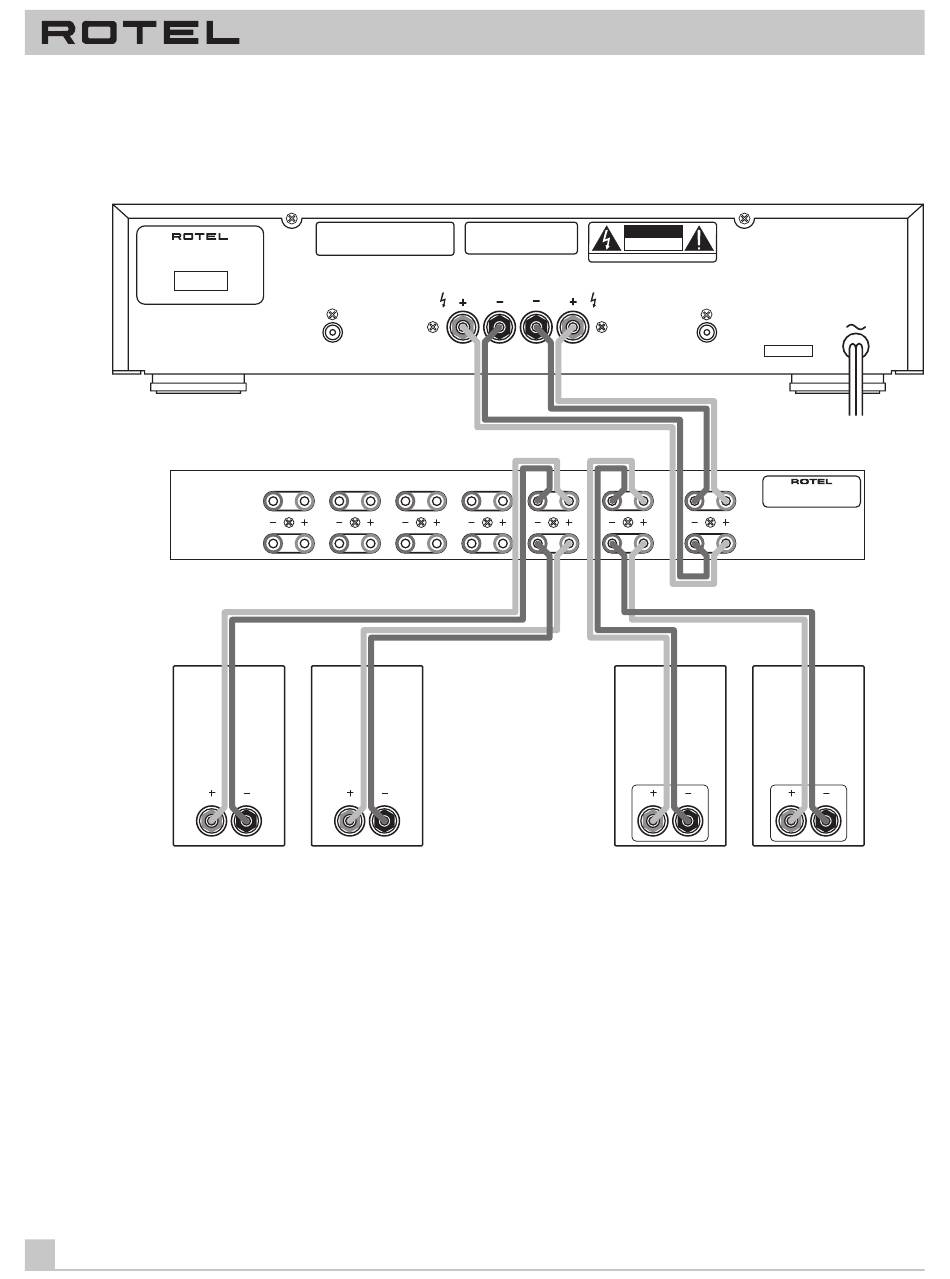

Figure 2: Typical Connections
Exemple-type de branchements
Typisches Anschlußdiagramm
Collegamenti Tipici
Ejemplo Tipico de Conexión
De verbindingen
POWER AMPLIFIER
MODEL NO. RB-971
POWER CONSUMPTION: 250W
Remote Speakers 1
Enceintes supplémentaires 1
An die mit einer Impedanzkompensationsschaltung versehenen
Anschlußklemmen 1 angeschlossenen Lautsprecher
Diffusori Remote 1
Cajas Acústicas Remotas 1
Remote Luidsprekers 1
4
SPEAKER SELECTOR RSS-900
WARNING:
TO REDUCE THE RISK OF FIRE
OR ELECTRICAL SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE.
RIGHT INPUT
5 4 3
LEFT
RIGHT
SPEAKER IMPEDANCE
CAUTION
STEREO 4 OHMS MINIMUM
RISK OF ELECTRIC SHOCK
DO NOT OPEN
BRIDGED 8 OHMS MINIMUM
AVIS:
RISQUE DE CHOC ELECTRIQUE–NE PAS OUVRIR
SPEAKERS
RIGHT LEFT
2 1 DIRECT
Direct Connected Speakers
Enceintes branchées directement
An die Direct-Anschlußklemmen
angeschlossenen Lautsprecher
Diffusori Diretti
Cajas Acústicas Conectadas Directamente
Direct Aangesloten Luidsprekers
ROTEL RB-971
LEFT INPUT
SERIAL NO.
ROTEL RSS-900
SPEAKER SELECTOR
MODEL NO. RSS-900
LEFT
ROTEL ELECTRONICS CO. LTD.
FROM
AMPLIFIER
RIGHT
