SOL4UCN2 – DC CHARGE CONTROLLER FOR SOLAR ENERGY
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the SOL4UCN2! Please read the manual thoroughly before bringing this device into service. Keep
the manual and the packaging for future reference and safe storage.

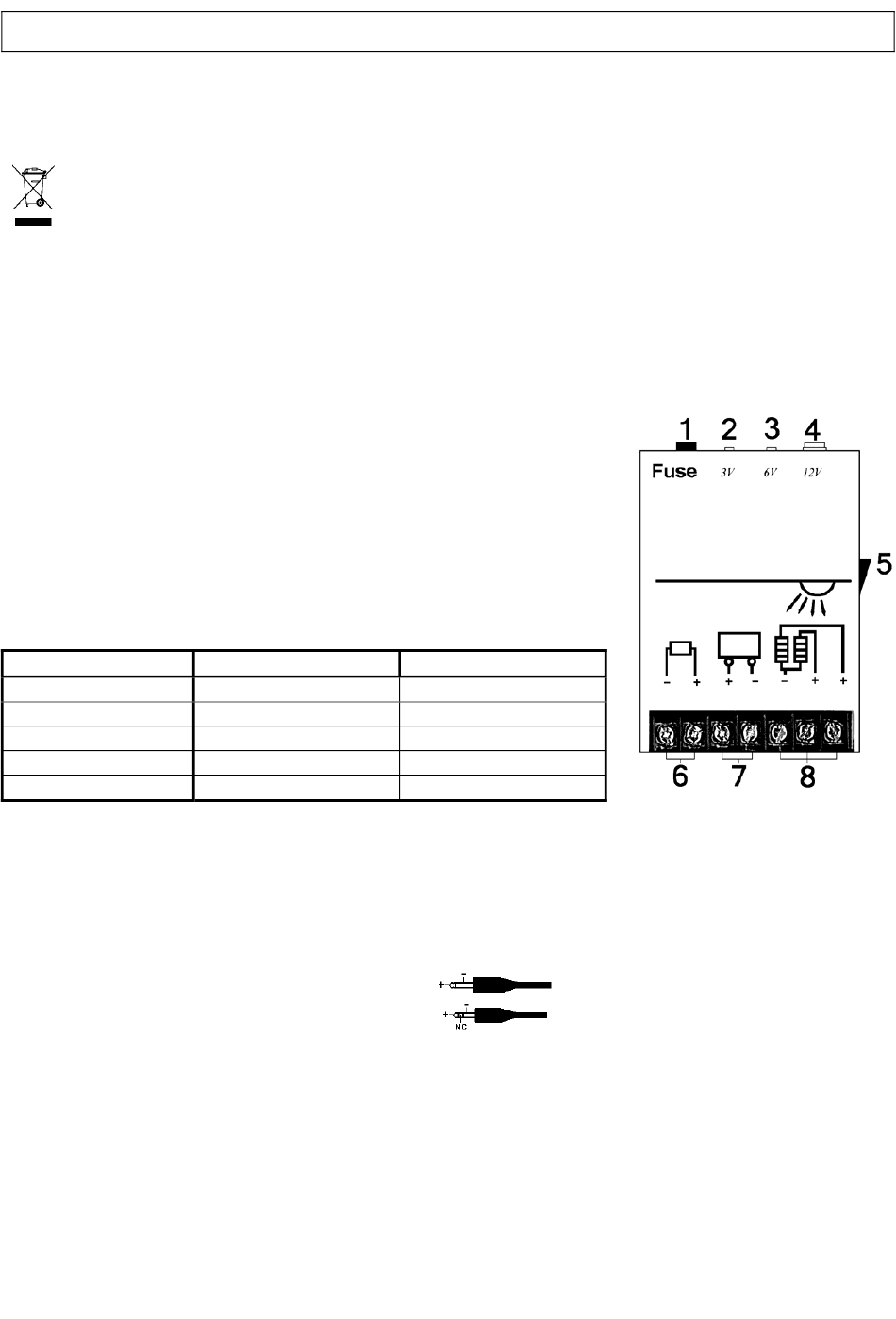

2. Connections
1. Fuse
2. 3.5mm mono jack 3V output
3. 3.5mm mono jack 6V output
4. 3.5mm mono jack 12Voutput
5. On/off switch
6. Load connection
7. 12V battery connection
8. Connections for solar panels
Output
Battery (#7)
Load (#6)
3V (#2)
6V (#3)
12V (#4)
This means the battery will be recharged even when the SOL4UCN2 is switched off.
Green LED: on; red LED: charging.

3. Technical Specifications

Fuse
Max. output DC current
3/6/12V connector layout
Discharge protection battery connector
Overcharge protection battery connector
Max. current solar panel
Open voltage solar panel
Suggested type of rechargeable battery
Working temperature
Humidity
Dimensions (L x W x H)
For more info concerning this product, please visit our website www.velleman.eu.
The information in this manual is subject to change without prior notice.
SOL4UCN2
Power ON
12V ± 10%
12V ± 10%
3V ± 10%
6V ± 10%
12V ± 10%
type F5 AL 250V (order code FF5N)
4A
mono jack:
stereo jack:
≤10.5V
≥15V
≤5A
21 ~ 24V
12V / 10 ~ 40Ah sealed lead acid battery
-10°C ~ +42°C
≤ 80%
120 x 80 x 22mm
Power OFF
12V ± 10%
0V
0V
0V
0V
