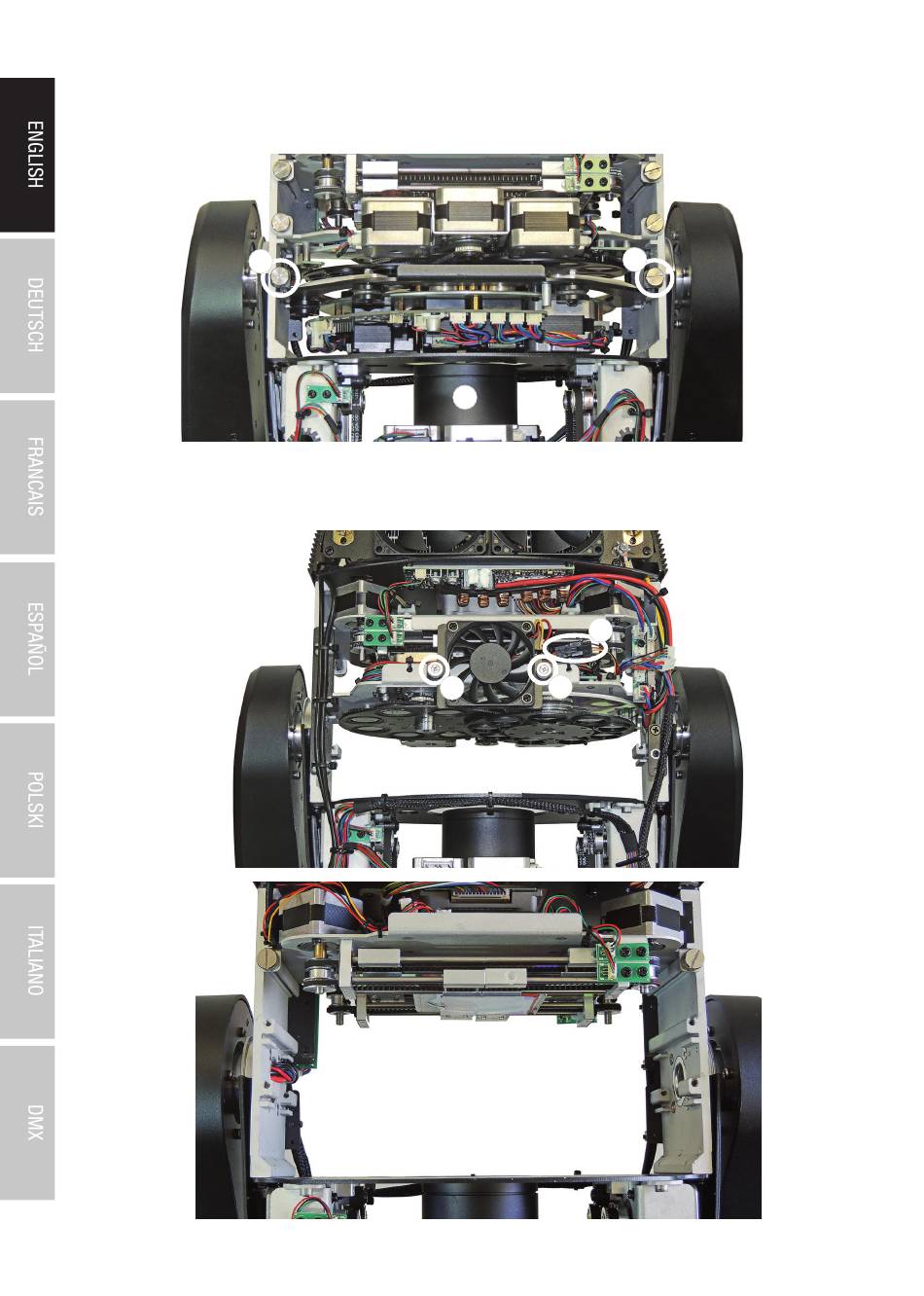

5. Release the tilt-lock and rotate the device head downwards as far as it will go, so that the tube of the focus lens (G) slides down
smoothly to allow access for the removal of the component with the framing shutter release. Loosen the two knurled screws (H) holding the
component with the framing shutter in the module frame and pull the component out of the from the guide in the frame. Take care to avoid
damage to plugs and cables.
H
H
G
6. Remove the fan from the rear of the component with the gobo wheels and the colour wheel. To do this, disconnect the power supply
connector (I) and the two thumb screws (J). Turn the device head to the front, loosen the two
knurled screws that secure the component in the module frame and pull the component from the guide in the frame. Take care to avoid
damage to plugs and cables.
I
J
J
