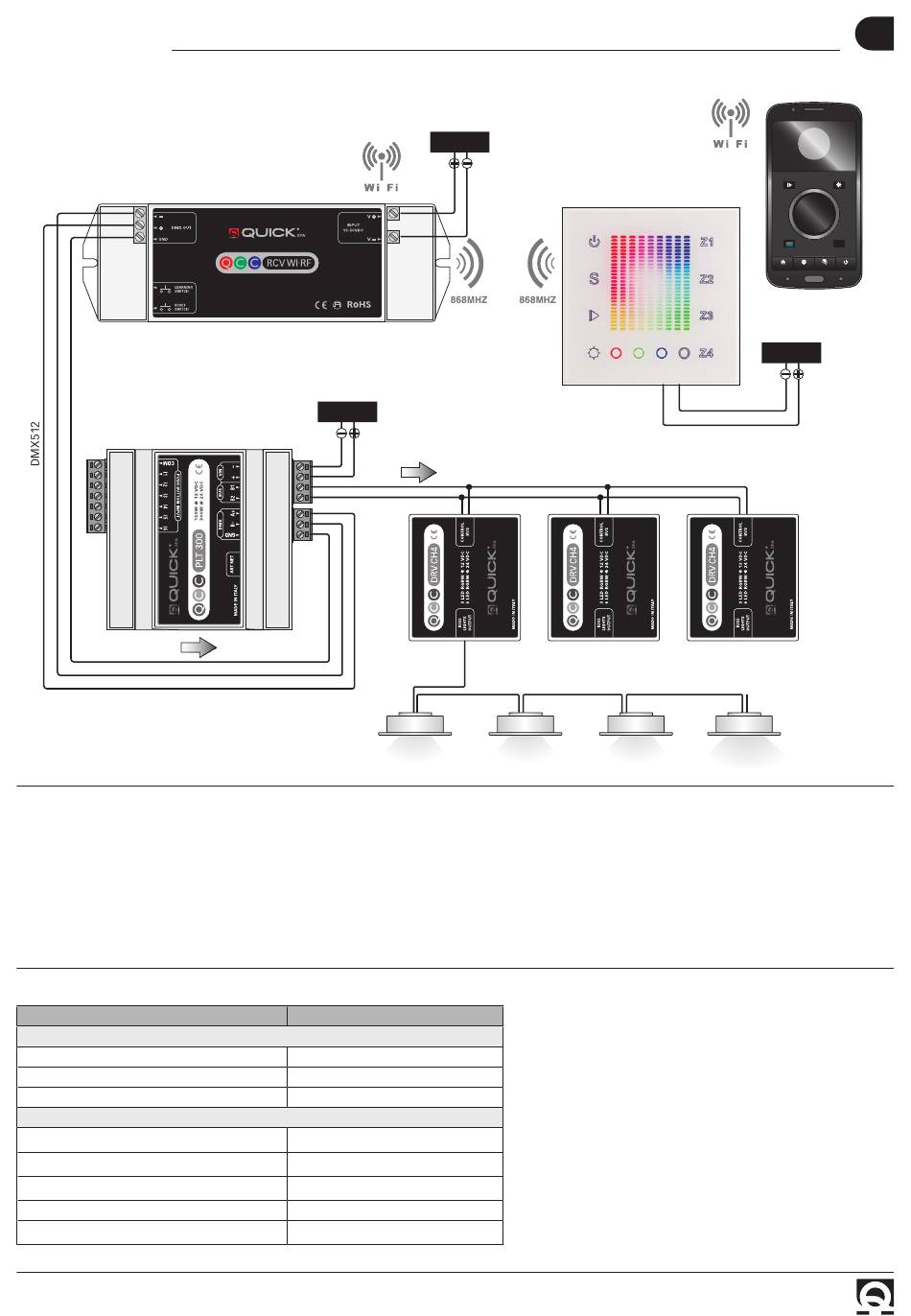

CONNECTION DIAGRAM

QCC-PLT300
MAINTENANCE
The device requires no special cleaning procedure. Clean the front using a damp cloth, avoiding corrosive substances.
Do not apply liquids directly on the unit; they might penetrate and damage the device.
DISCONNECT THE POWER SUPPLY BEFORE CLEANING THE UNIT.
WARRANTY
Failure to comply with the prescriptions below will void the Warranty.

TECHNICAL DATA

MODELL
INPUT CHARACTERISTICS
Power supply
Power consumption
Control input
GENERAL CHARACTERISTICS
Operating temperature
Storage temperature
Relative humidity
Housing protection
Certifications
QUICK SPA
CONNECTION DIAGRAM / MAINTENANCE / TECHNICAL DATA
QCC-RCV WI/RF
10-30VDC
QCC-RCV WI/RF
10 ÷ 30 Vdc
70 mA
DMX512
from -20°C to +60°C
from -40°C to + 70°C
80% non-condensing
IP 20
CE marking
10-30VDC
RF
TWO CABLE BUS
QCC-DRV
QCC RGBW DOWNLIGHTS
In case of discordance or errors in translation
F
between the translated version and the original
text in the Italian language, reference will be made
to the Italian or English text.
