2.7 Minimonitor (Optional)
About Minimonitor
The Minimonitor function is able to continuously monitor and display patient's ECG and
SpO . Real-time waveform and readings can be sent and displayed on a tablet or phone.
2
Before using this function, please search and download "Check Trace" from APP store or
Google Play to your tablet or phone.
Using Minimonitor
To start a Minimonitor function, follow the steps as below.
1. In the Checkme Main Screen, select <Minimonitor>

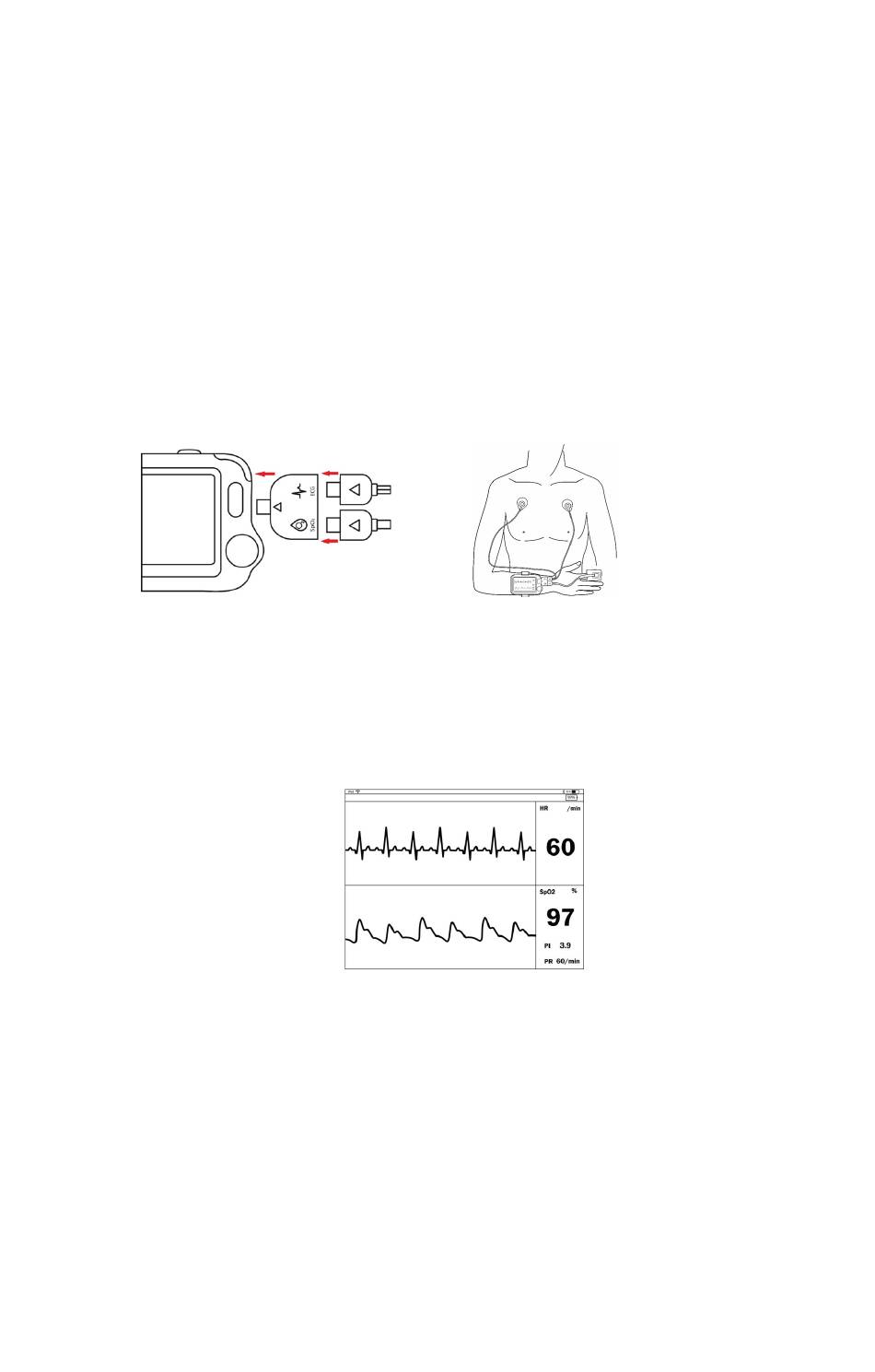

2. Correctly connect the "Minimonitor adaptor", SpO
device.
3. Put finger into the external SpO
4. Turn on the Bluetooth on your pad and open "Check Trace "app. The app will search
the device through Bluetooth.
5. Choose the device you're monitoring via SN.
6. When the devices are connected successfully, you can see the waveform and
measurement data on both Checkme and app. Please see below the displaying
screen on app.
7.
When you finish measuring, press the Home button to stop monitoring.
2.8 ECG Holter (optional)
2.8.1 Choose Holter Lead
Choose the proper ECG lead in the setting menu.
There are 4 options: LEAD II; CC5; CM5; User defined.
2.8.2 Meaurement
1. In the Main sceen, tap the ECG Holter icon.
2. Choose the right user, enter the guidance screen.
sensor. Place the ECG electrodes as shown below.
2
14
cable and ECG cable with the
2
