TESTING

Before finishing the installation, perform the following tests to make sure the wiring is correct and
everything is operating properly.
Reconnect Battery
When wiring is complete, reconnect the battery negative terminal.
Test Power Wiring
Turn on the receiver, but do not turn up the volume. The amplifier power light should come on. If
not, check the REM and +12V (B+) wires. Turn up the receiver volume slightly. All speakers
should operate. If not, check wiring connections at amplifier and speakers.
Test Speaker Connections
These tests make sure the speakers are connected properly. If speakers don't play at all, one (or
both) speaker wires may be disconnected.

REMOTE INPUT LEVEL CONTROL

The Power 900.1 comes equipped with a Remote Input Level Control. The Remote Input Level
Control allows the input level to be adjusted from an alternate location. It can be mounted
under-dash or in-dash. When the amplifier is used to drive subwoofers and the low pass
crossover is activated, the Remote Input Level Control can be used as a "remote bass level
control". This enables you to control the bass level independent from the rest of the system. This
is convenient for system tuning and/or when playing many different types of music.

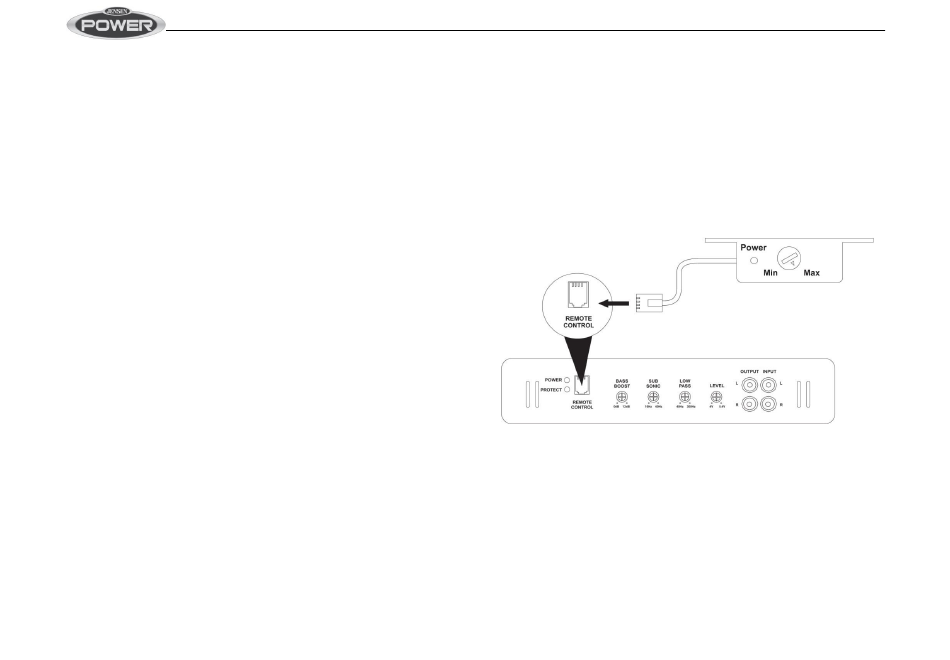

The Remote Input Level Control uses a 6-pin modular cable for connectivity. Simply plug the
6-pin modular cable into the amplifier and then into the Remote Input Level Control to activate
the circuit.
12
