Connections

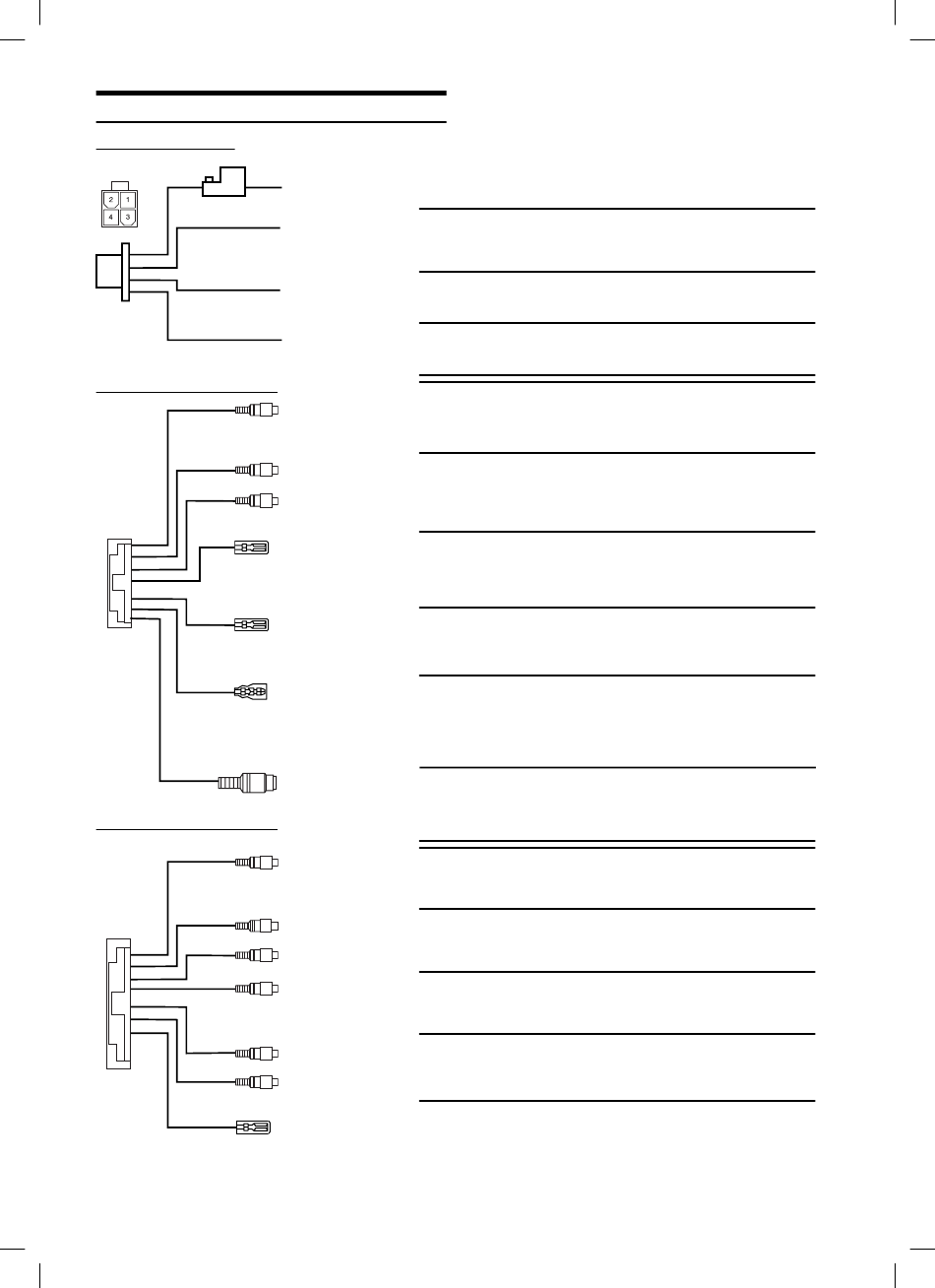

Power Connector
AV Connector 1 (AUX1)
AV Connector 2 (AUX2)
26
-EN
EN03 GettingStarted_r4.indd EN03 GettingStarted_r4.indd
1) BATT
2) ACC
3) GND
4) DOOR
AUX IN 1 (VIDEO)
AUX IN 1 (AUDIO L)
AUX IN 1 (AUDIO R)
POWER +12V
REMO OUT
(AUX 1)
REMOTE IN
S-VIDEO
AUX OUT (VIDEO)
AUX OUT (AUDIO L) White (L)
AUX OUT (AUDIO R) Red (R)
AUX IN 2 (VIDEO)
AUX IN 2 (AUDIO L)
AUX IN 2 (AUDIO R) Red (R)
REMO OUT (AUX 2) White/Brown
26 26
ALPINE's PKG-RSE2 needs the following power connections to
assure proper operation of the monitor.
Yellow • Battery Lead
Connect this lead to the positive (+) post of the vehicle's battery.
Red • ACC
Connect this line to the vehicle's ACC line.
(Switched 12V, ignition)
Black • GND
Connect this line to the vehicle's GND line.
Green • Door
Connect this lead to the vehicle's door
Yellow • Video Input Connector
This connector is used in combination with the video inputs
of other video products (AV head unit or TV Tuner)
White (L) • Audio Input Connectors
These connectors are used in combination with a head
Red (R)
unit or TV Tuner with audio output connectors.
Red • Power Control
Connect this lead to any ALPINE video source product's ACC
line, which is red. It controls turning the power ON/OFF for the
ALPINE video products correspond to PKG-RSE2 power.
White/Brown • Remote Out 1
Corresponds to AUX 1. To control ALPINE DVD player,
TV tuner or DVD-HU, connect to each REMOTE IN.
White/Brown • Remote In
To control ALPINE PKG-RSE2, DVD player or TV tuner
from DVD-HU or LCD monitor in the front area of the vehicle,
connect this line to the ALPINE DVD-HU or LCD monitor
REMOTE OUT.
Blue/Brown • S-Video Input
You can not use Composite Video Input and S-Video
input at the same time. It may cause noise on the
screen. Refer to Video Signal setting (page 19)
Yellow • Video Output Connector
This connector is used in combination with the video inputs
of other video products (AV head unit or LCD monitor)
• Audio Output Connectors
These connectors are used in combination with a head unit or
LCD monitor with audio input connectors.
Yellow • Video Input Connector
This connector is used in combination with the video inputs
of other video products (AV head unit or TV Tuner)
White (L) • Audio Input Connectors
These connectors are used in combination with a head
unit or TV Tuner with audio output connectors.
• Remote Out 2
Corresponds to AUX 2. To control ALPINE DVD player,
TV tuner or DVD-HU, connect to each REMOTE IN.
